Product Specifications
| Prod Model: |
PM470UT7-6C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Monitoring System |
| Application: |
All-Round Monitoring |
| Technology: |
LCD Video Wall |
| Kind: |
CCTV Monitor |
| Feature: |
Large-Screen Solution |
| Horizontal Resolution: |
1366X768 |
Product Description

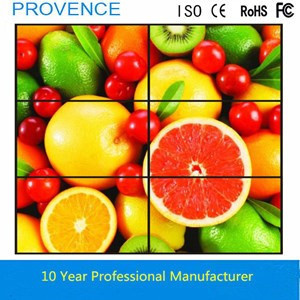

47" LCD LED Video Wall CCTV Security System
1. LG Super Thin Bezel Panel. 1.3-3 years warranty.
2. Size: 46"/55" (Samsung panel), 47" (LG panel), 60" (Sharp panel)
3. Ideal industrial video wall monitor for CCTV system, digital signage, kiosk, automation system etc4. OEM, ODM provider
6. Certificate: CE, FCC, RoHS
7. Application: Commerce, Teaching, Multimedia conference, Tele-medicine, Military, Stock market, Entertainment, Traffic, Map, Astronomy&meteorology, Sport, Hotel etc.
A. Combining outstanding image performance and most advanced features with an almost frameless design.
B. Bezel width(up/down/left/right): 20mm (10/10/10/10mm).
C. Support HD 1366x768 resolution. High contrast ratio: 1300: 1, 700CD/m2 high brightness.
D. Metal case: Antimagnetic & anti-interference performance, no radiation.
E. Designed and engineered for 24/7/365 operation.
F. Very eco-friendly low power consumption.
G. DVI, VGA and composit inputs.
H. Various installation methods: Wall mount, floor mount, cabinet, control consoles etc.
I. Maximum video wall can be spliced up to 15x15 (225 units).
|
PRODUCT DESCRIPTION |
|
Panel |
|
Diagonal Size |
47" |
|
Aspect Ratio |
16:9 |
|
Pixel Pitch |
0.76125(H) x 0.76125(W) |
|
Response Time |
<8ms |
|
Resolution |
1366x768 |
|
Contrast Ratio |
1300:1 |
|
Brightness (cd/m2) |
700d/m2 |
|
Active display area |
1040.5 (H) x58.35(V) |
|
Display Color (Max) |
16.7M |
|
Viewing Angle |
H:89o/89o V:89o/89o |
|
Video Input |
|
|
VGA |
X1 |
|
DVI |
X1 |
|
HDMI |
X1 |
|
Display port |
X1 |
|
Composite video( BNC) |
X1 |
|
RJ45(use for RS232 IN) |
X1 |
|
RJ45(use for debug) |
X1 |
|
Output Connection |
|
|
Composite video(BNC) |
X1 |
|
RJ45(use for RS232 OUT) |
X2 |
|
Power |
|
Power Supply |
AC Input 100~240V(+/-10%)/50-60Hz |
|
Power Consumpiton |
≤210W |
|
Stand-by(MAX) |
≤2W |
|
Operation/Sotrage |
|
Operating Temperature |
0 0 C~50 0 C |
|
Operating Humidity |
10%~90% |
|
Storage Temperature |
-20 0 C~60 0 C |
|
Operating Humidity |
0%~90% |
|
Safety and Ergonomics |
|
Regulations |
CE,FCC,ROSH |
|
Technical Specification |
|
OSD language |
Simplify Chinese,English |
|
Horizontal Frequency |
20 ~ 82KHz(analog and digital) |
|
Vertical Frequency |
55~75Hz |
|
Optimum Resolution |
1366x768at 60HZ |
|
Native Resolution |
1366x768at 60HZ |
|
Supported Resolutions |
1366x768; 1280x1024;1280x768; 1024x768;832x624; 800x600;720x400; 600x480; |
|
Video Modes(no tuner) |
480i;480p;576i;576p;720p(50 & 60HZ);1080i(50 & 60HZ);1080p(50 &60HZ); |
|
Colour Versions |
Black |
|
Package Contents |
|
Manual |
x1 |
|
Warranty Card |
x1 |
|
Application CD |
x1 |
|
Power Cord |
x1 |
|
Lan cable(1.8m) |
x1 |
|
RJ45 to RS232 connector |
x1 |
|
Batteries |
x1 |
|
Mechanical Spec |
|
Weight(Set/package) |
33kg/40kg |
|
Dimension(W/O stand) |
1046.8*591.6*105mm |
|
Packing Dimension |
1160x710x240mm |
|
Warranty |
|
1 year for backlight, 3 years for other parts |
|
Terms And Conditions |
|
Payment Term |
T/T or Sight L/C |
|
Shipment Term |
FOB, CIF, CNF |
|
Port of Loading: |
Shenzhen |
|
Brand |
Follow Client's Command (Ours, OEM, ODM) |
|
MOQ |
20'ft |
|
Valid Date |
7 days |
|
Delivery Time |
Within 25 Days After payment |
|
About Samples |
|
Extra 15% Handling Fee Is Charged For Sample. It will Be Returned When An Purchase Order Is Placed |
|
Optional Accessories |
|
Wall Mount |
|
RS232 to USB connector |
|
BNC to RCA Adaptor Jack |
|
BNC to BNC cable(1.5m) |
|
DVI cable(1.5m) |
|
HDMI cable(1.5m) |
|
VGA to BNC cable(1.5m) |
PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...
Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.
PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
