Product Specifications
| Prod Model: |
MNT-DL8104V |
| Type: |
H. 264 dvr |
| Usage: |
record |
Product Description

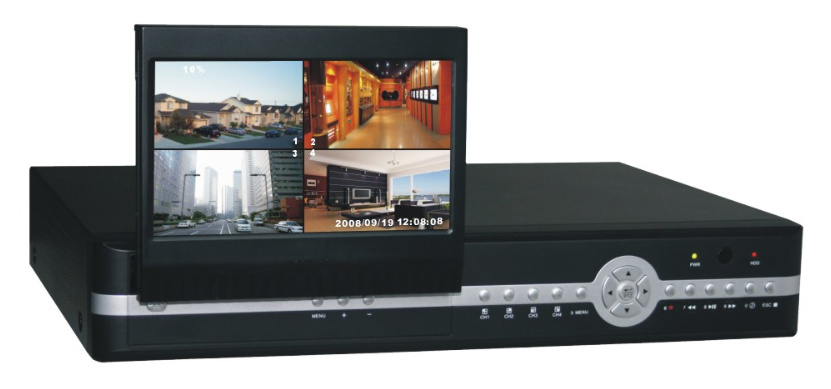

With 7' indash LCD monitor
H. 264 real-time high compression, support dual stream transmission
Pentaplex operation: Live, record, playback, backup, net transmission
Support remote view with Mobile Phones
| Specifications | |
| Model | MNT-DL8104V |
| Video Compression | H.264 |
| Video System | NTSC / PAL |
| Operation System | Linux |
| Video Input / Output | BNC 4-channel inputs / 1-channel output; 1VGA output |
| Audio Compression | 8kHz*16bit ADPCM |
| Audio Input / Output | RCA 4-channel input / 2-channel outputs |
| Display Frame Rate | PAL: 100fps / NTSC: 120fps |
| Playback Resolution | PAL: CIF(352x288), HD1(704x288), D1(704x576) |
| NTSC: CIF(352x240), HD1(704x240), D1(704x480) |
| Total Recording Frame Rate | PAL: 25fps@D1, 50fps@HD1, 100fps@CIF |
| NTSC: 30fps@D1, 60fps@HD1, 120fps@CIF |
| Recording Mode | Always / schedule / motion detection / sensor triggered |
| Recording Pack Time | 15/30/45/60mins selectable |
| HDD Interface | Support SATA HDD & USB disk |
| Network Interface | RJ45, 10M/100M |
| Network Protocol | Support TCP/IP, UDP, DHCP, DNNS, PPPoE |
| Network Function | Support to live view with IE (Internet Explorer) & with Mobile phone |
| USB2.0 | USB mouse, USB disk (backup, upgrade) |
| Playback Mode | Normal play, fast forward, fast rewind, frame by frame |
| Backup | Backup AVI file via USB flash disk, USB disk, USB CD/DVD-RW & Network |
| PTZ Control | Built-in RS485, support PELCO-P & PELCO-D |
| Alarm Mode | Motion Detection, Sensor triggered, video loss, HDD error, HDD full |
| Senor & Alarm I/O | 4 sensor inputs / 1 alarm output |
| Monitor | 7' indash LCD monitor |
| Power Supply | DC 12V/5A (power adaptor included) |
| Power Consumption | 10~15W |
| Working Temperature | -10?C to +40?C |
| Working Humidity | 10% to 90% |
| Dimension | 400 x 288 x 73mm (W x D x H) |
