Shenzhen Ele Technology Co., Limited >> 4CH H. 264 CCTV DVR System 4 PCS IR Waterproof Camera Security System

4CH H. 264 CCTV DVR System 4 PCS IR Waterproof Camera Security System

4CH H. 264 CCTV DVR System 4 PCS IR Waterproof Camera Security System
Price: US $ 91-96/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Product Specifications

Prod Model: DH3204K-800W4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compression Algorithm: H. 264 Baseline
Playback Resolution: PAL/NTSC
Camera: 4 PCS IR CCTV Camera
Power Consumption: 25W
Power Supply: AC 100~240 V, 50/60Hz
Alarm Input: 4 Channel
Model No: Dh3204k-800W4
Certificate: CE/FCC/RoHS
Export Markets: Global
RS485: PTZ Control
Type: Monitoring System
Application: Sentinel Surveillance
Feature: Vandal-proof
Video Capture System: Video Camera
Video Transmission System: Coaxial-Cable Transmission
Software Function: Monitoring+Control
Software Usage: Mobile Phone Monitoring Software
Client Software: Client Software
Model: Monitor Type
Sensor: CCD
Kind: Manual Focus Lens
Technology: Infrared
Horizontal Resolution: 650tvl

Product Description


4CH H.264 cctv dvr system 4 pcs IR Waterproof camera security system

4CH H.264 cctv dvr system 4 pcs IR Waterproof camera security system,CCTV DVR WITH HDMI


ModelDH3204
SystemSystem ResourcesLive,Recording,Playback,Backup&Remote access
Control ModeUSB mouse,Network,IR remote control
CompressionH.264 /G711
VideoInput4 channel,BNCx4,Composite;1.0Vp-p/75
Output1 channel BNC/TV,1 channel VGA, 1 channel HDMI
AudioInput2 channel
Output1 channel
DisplayDisplay Split1,4
Resolution1920x1080P;1280*1024;1024*768
Frame RateDisplayPAL:100 FPS NTSC:120 FPS
RecordPAL:100 FPS  NTSC:120FPS
AlarmNO
Playback&BackupPlayback FunctionsPlay,Pause,Stop,Fast play,Slow play,Full screen,Backup selection
Backup ModeUSB,Network download
NetworkInterfaceRJ45 Port,10/100MB
FunctionsTCP/IP, PPPoE ,DHCP,DDNS,IP Fliter,UDP,Email
Remote OperationMonitor,PTZ control,Playback,System setting,File download,Log information
Phone Monitorsupport Symbian,WindowsMobile,For iPhone,Android,BlackBerry Operation system.
Hard disk1 SATA port,Max 3000G HDD support
(DVR not include HDD )


Auxiliary InterfaceUSB Interface2 ports
RS485PTZ control
EnvironmentsPower SupplyAC 100~240 V,50/60Hz
Power Consumption25W
Dimension1U
Weight2.0kg

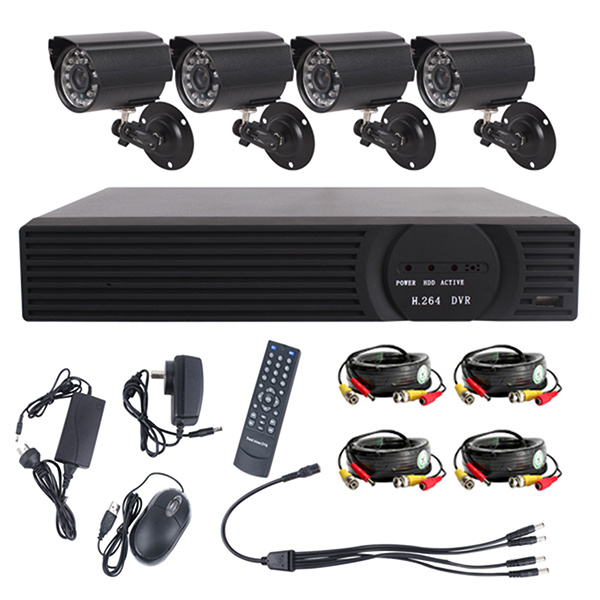

DVR Package includes:
1 x DVR
1 x IR remote control
1 x DVR power adapter
1 x Mouse
1 x CD/User manual
4pcs  Waterproof Camera
1/4"CMOS  800TVL, 15 IR Distance,3.6mm lens
1X Power Supply For Cameras (with Power Splitter Cable)
4X60feet power/ Video all in one cable


Package Include:
1X 4CH H.264 Stand Alone DVR(Not include Hard Drive)
4X 1/4"CMOS CMOS 800TVL waterproof Camera
1X Power Supply(with Power Splitter Cable)
4X60feet power/ Video all in one cable
Shenzhen Ele Technology Co., Limited, is a professional high technology enterprise specializing in developing, manufacturing and marketing our own Uvistar series of security products. was established in 2004. We are also one of the members of the China Security Product Industry Association.

At present, Ele concentrates on the production of Security Surveillance System, CCTV Camera, DVR, PTZ Camera, CCTV Accessory. We have exported our products to North America, South America, Europe, Asia, Africa, Oceania, MID East. We also take OEM and ODM orders from renowned companies at home and abroad.

With a factory space of 3, 000 square meters, We has over 200 employees (among whom more than 40 are R&D engineers), advanced development equipment and comprehensive test facilities. During the past 6 years, Ele has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality.

Dear fellow workers and friends, thank you for your care and support to Ele's cause all the time! we will, while working hard to promote the strategic partnership with our long-term customers, make the intercourse and cooperation with the well-known enterprises and elites from the similar industries at home and abroad close via the powerful implementation of standardized, information-based and international brand strategy, continuously improve R&D strength, added value of our products and even the core competitiveness through keeping track of the trend of the advanced communication technology in the world to serve numerous consumers with the high-quality communication products as well as repay peoples of all walks of life who care and support Ele.

With years of successful experience in global trade, we are capable of providing top quality products, stable supply with competitive prices to our customers. As a professional manufacturer, ongoing innovation and improvement are our business spirit. So we always listen to our customers' needs, providing reliable service that we trust and value.

It is our deeply rooted hope to pursue a future of excellence, transcend EGO and build an international brand. With this end in view, we would like to cooperate with you to advance hand in hand, design the development and share success.
