| Price: | US $ 3/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 500/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | L7 RCD 4P |
|---|---|
| Markets: | Eastern Europe,Southeast Asia,Africa,Oceania |
| IEC Standard: | IEC1008 |
| Rated Voltage: | 230V 400V |
| Rated Current: | 25A 40A 63A |
| In: | 30mA 100mA 300mA 500mA |
| Logo: | Printing |
| Breaking Capacity: | Low Voltage Circuit Breakers |
| Operation: | Electric Type |
| Speed: | High-Speed Circuit Breaker |
| Arc-extinguishing Medium: | Air |
| Installation: | Fixed |
| Structure: | ELCB |
| Poles Number: | 4 |
| Certification: | CCC |

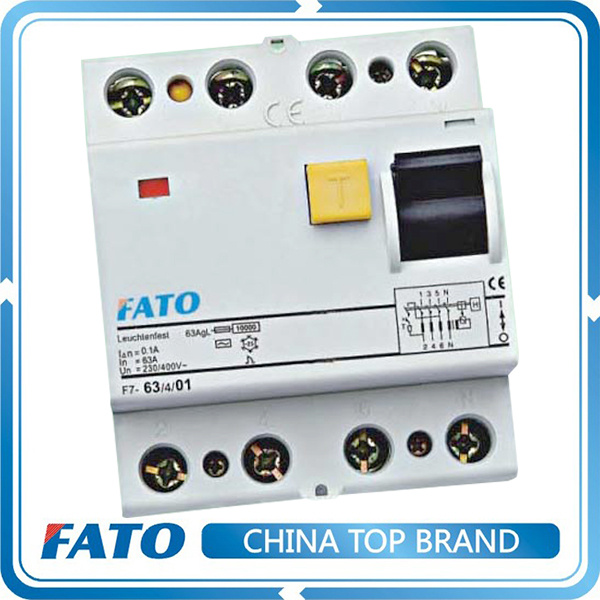

The Residual Current Device F7 is in conformity with the standard of IEC61008. It can cut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunk line. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage.
F7 RCD is mainly suitable for using in varieties of plants, enterprises, buildings, constructions, commerce, guesthouses and families.
It can be used in circuits of 1 phase 230V and 3 phases 400V 50/60Hz.
RCD is not used for pulse system.
L7-40 Residual Current Circuit Breaker
| ||||||||
| Specification | ||||||||
| L7-63 Combined Circuit Breaker with residual current Device | ||||||||
| Provides protection earth fault/ leakage current and electromagnetic | ||||||||
Residual Current Circuit Breaker
| ||||||||
| L7-63 Combined Circuit Breaker with Residucal current Device | ||||||||
| Construction and Feature | ||||||||
| Provides protection against earth fault / leakage current and function of isolation. | ||||||||
| High short-circuit current withstand capacity | ||||||||
| Applicable to terminal and pin/ fork type busbar connection | ||||||||
| Equipped with finger protected connection terminals | ||||||||
| Fire resistand plastic parts endures abnormal heating and strong impact. | ||||||||
| Automatically disconnect the circuit when earth fault/ leakage current occurs and exceeds the rated sensitivity. | ||||||||
| independent of power supply and line voltage, and free from external interference, voltage fluctuation. | ||||||||

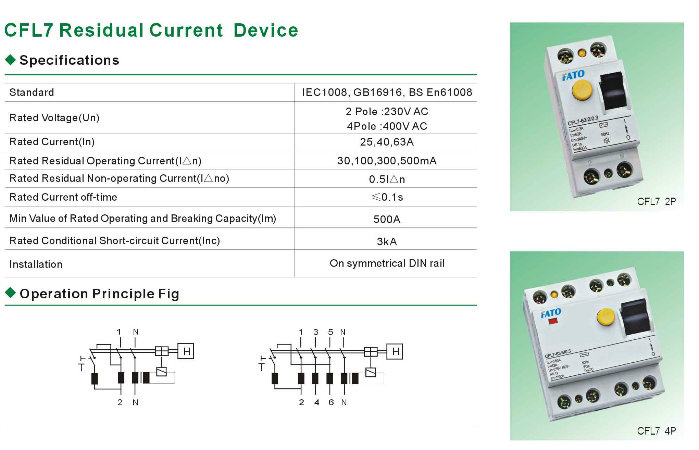

Technical Date:
| ||||||||
| Mode:electro-magnetic type, electronic type | ||||||||
| Residual current Characteristics; A,AC | ||||||||
| Pole No. 1+N 4 | ||||||||
| Rated Voltage: 230/440V AC | ||||||||
| Rated Frequency: 50/60 Hz | ||||||||
| Rated Residual operating current In(A) | ||||||||
| 0.01, 0.03, 0.1, 0.3, 0.5 | ||||||||
| Rated residual non operating current Ino: 0.5In | ||||||||
| Rated Conditional short-circuit Current Inc: 6000A | ||||||||
| Rated conditional residual short-circuit current: Ic: 6000A | ||||||||
| Tripping duration: instantaneous tripping ≤ 0.1S | ||||||||
| Residual tripping current range: 0.5 In (A) In | ||||||||
| Electro-mechanical endurance: 4000 cycles | ||||||||
| Connection Capacity: Rigid conductor 25mm2 |
