Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Motor Power: |
Different Models of Different Power |
Product Description
| Model | Rotor diameter
(mm) | Rotor length
(r/mm) | Maximum
Feed size
(mm) | Discharge size
(mm) | Capacity
(t/h) | Number of rollers | Motor power
(kw) | Drive mode |
| 4PG04704 | 400 | 400 | <20 | 0.1-10 | 2-30 | 4 | 7.5(11) | Belt
or
coupling |
| 4PG0605 | 600 | 500 | <40 | 0.1-16 | 5-55 | 4 | 22(30) |
| 4PG0806 | 800 | 600 | <40 | 0.1-22 | 8-85 | 4 | 30(37) |
| 4PG0709 | 700 | 900 | <55 | 0.1-22 | 12-115 | 4 | 37(75) |
| 4PG1009 | 1000 | 900 | <65 | 0.1-25 | 18-180 | 4 | 55(75) |
| 4PG1210 | 1200 | 1000 | <85 | 0.1-30 | 30-230 | 4 | 75(90) |
| 4PG1216 | 1200 | 1600 | <90 | 0.1-40 | 50-380 | 4 | 90(110) |
| 4PG1618 | 1600 | 1800 | <90 | 0.1-50 | 80-650 | 4 | 110(132) |
Outline

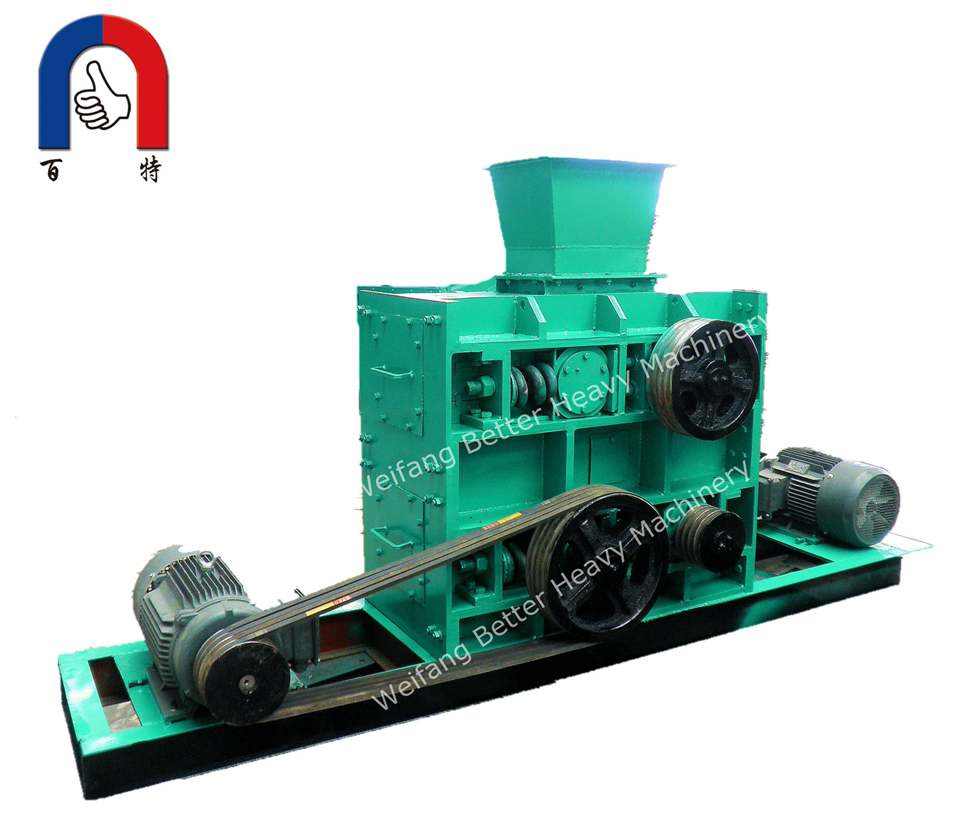

Four roller crusher with high efficiency ,energy saving ,intelligent and so on.Mainly applied compressive strength values≤200Mpa ,particle size ,100mm material
such as limestone coal gangue ,ceramic raw materials ,coke ,etc. Broken,directly crushed to less than 1mm (90%) .it mining coal chemicaland other industrial
sectors is crushing industry one of the best
Weifang Better Heavy Machinery Science and Technology Co., Ltd. Is a modern joint -stock enterprise, which was founded by Weifang Baite Magnet Technology Co., Ltd. Is the backbone enterprise of mining equipment and magnetic devices, is the larger magnetic equipment manufacturer of research and development, engineering design, production and installation, commissioning and service.
Companies specializing in the production of crushing equipment, screening equipment, transportation equipment, feeding equipment, magnetic separation equipment, sand and gravel production equipment, grinding and processing equipment, more than thirty series over 200kings of standard models. The service is related to more than 10 areas, such as electricity, coal, building materials, metallurgy, ports, mining, nonferrous metals, powder environmental protection. At present, we have provided more than 3000 domeseic customers with reliable and at the same time we occupy more than 60%magnetic separation equipment matching share of China crusher ball mill, iron sand ship and other production industry.
There is no best only better. Baite has firmly implemented ISO9001: 2000 international quality management system standard and ISO 10012 international quality inspection system standard, relying on technological innovation, and continuously improve core conmpetitiveness. We innovate and constantly improve product performance, quality, extend the application scope to meet user higher demand. To become an international leader in magnetic application system is the goal of Baite
