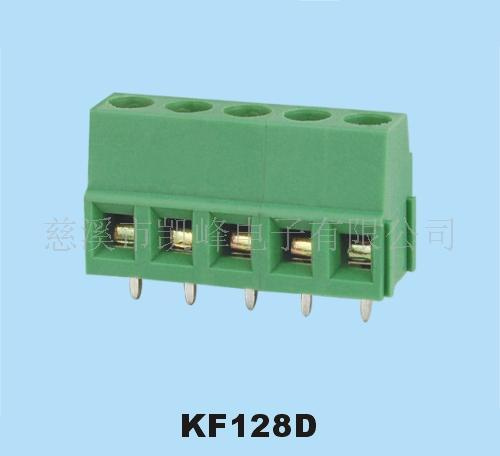

5.08mm mount Terminal blocks PCB Euro style connectors
Pitch: 5.08mm
Material:
Screws: M2.5 steel Zinc plated
Contact: Brass Ni plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
Electrical:
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 5000M Ω /1000V
Withstanding voltage: AC1500V/1Min
Wire Range: 24-12AWG 1.0mm²
Mechanical:
Temp Range: -40º C~+105º C
Max Soldering: +250º C, for 5Sec.
Torque: 0.4Nm(1.8lb. In)
Strip length: 6-7mm
Thank you very much for your pay attention to our 5.08mm mount Terminal blocks PCB Euro style connectors please contact with us at any time, we will give you a quick reply(within 24 hours)and try our best to support you!
|
Part number |
KF128 |
|
Pitch |
5.0, 5.08,mm |
|
Material |
PA66, UL94V-0 |
|
Rated voltage/current |
300V/10A |
|
Contact |
Phosphor bronze |
|
Wire range |
24-12AWG 2.5mm² |
|
Strip length |
6-7mm. |
|
Temp. Range |
-40C~+105C |
|
package |
we packed in the standard cartons:28*28*42cm,or as your requirement. |
|
Payment |
100% TT before shippment |
