Wireless video system mini camera with 5 inch monitor DVR(Long distance transmit, good audio and video)

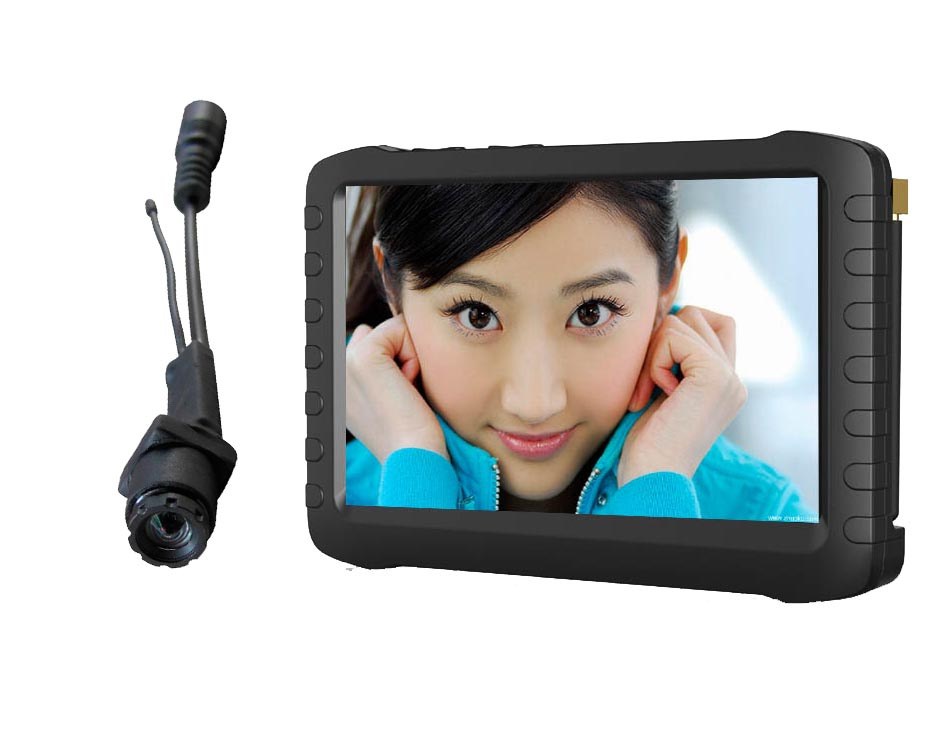

This kit includes a very tiny wireless camera and a 5-inch LCD DVR, which adopt no-interference 5.8G
Frequency. It transmits 100 meters range. The size of camera is smaller than finger, which is suitable to install it into narrow and hard-to-reach room. Users can view the instant video on this 5 inch HD screen. They also can record videos and take pictures. Motion detect & loop recording are available for more convenience use. Just connect the camera to AV power supply, it starts to continuous working. Just plug & play! It is a good helper for safe & security.
Main Features
1. No-interference 5.8G frequency, no need to worry the interference from general-used 2.4G frequency;
2. Camera has up to 24 channels for choice;
3. Tiny size camera (smaller than finger), and tiny weight (only 8g);
4.0.008LUX super low illumination, which can see clearly under dim light;
5.90° And 50° View angle for your choice;
6. Low power consumption assures the long time working life;
7.25mW transmitting power, which leads 100 meters wireless transmission range;
8. High resolution 5-inch large screen DVR playback clear video instantly without connecting to computer;
9. Motion Detection Available: Record only when there is movement detected(Replaced CCTV 24 Hrs Monitoring );
10. No need any cable installation, just plug and play;
11. Support SD Card(up to 32G) recording for any evidence needed.
Installation Notes for Camera:
1. This camera has one working channel. Please select the model with your requested frequency;
2. Pay attention to horizontal direction of lens, and then fix camera.
| Working frequency | G1-within 5.8G | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. | Working Channel: 1 of 24 |
| CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz |
| G2-Beyond 5.8G | CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. |
| CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz |
| G3-Within 5.8G | CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. |
| CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz |
| Antenna | External antenna |
| RF OUTPUT POWER | 25mW |
| TRANSMISSION RANGE | 100 meters |
| SENSOR DIMENSION | NTSC:720(H)×480(V) | PAL:720(H)×576(V) |
| HORIZONTAL RESOLUTION | 480TV Lines |
| SENSITIVITY | 0.008Lux/F1.2 |
| LENS & VIEW ANGLE | 0.5mm F1.2 / 90 °(TE60A) 0.5mm F1.2 / 50 °(TE60B) |
| SIZE(L x W x H) | 39.5mm x 10.5mm x 10.5mm(TE60A) 33.0mm x 10.0mm x 10.0mm(TE60B) |
| WEIGHT(g) | 20g |
| WORK CURRENT | 230mA |
| POWER REQUIREMENT | DC 4V |
| OPERATING TEMPERATURE | - 20°C ~ + 50°C ,Relative humidity 85/100 |
