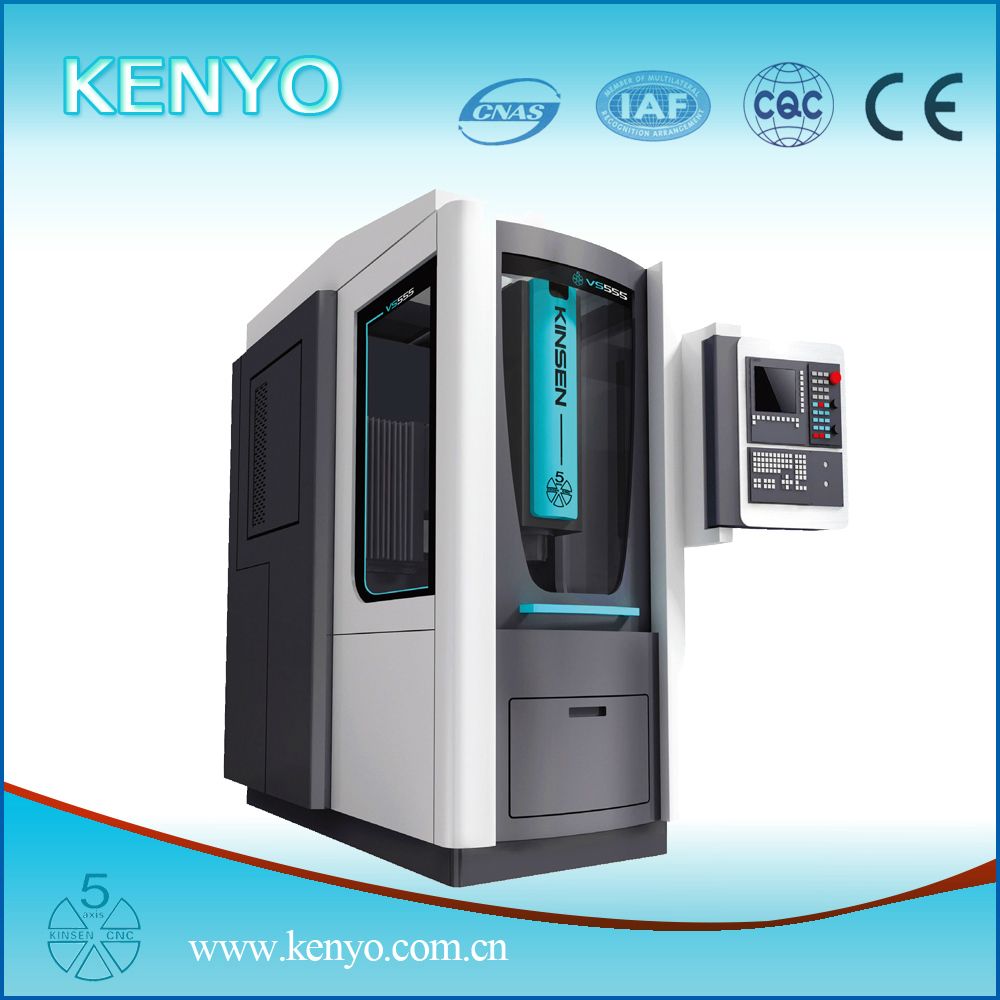

5 Axis Machine Tools/CNC Milling Machine (VS555-K)
Price: |
US $ 70000-80000set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Casting machine body
High rigidity spindle unit
Taiwan HIWIN screw
Motorized spindle unit 24000rpm

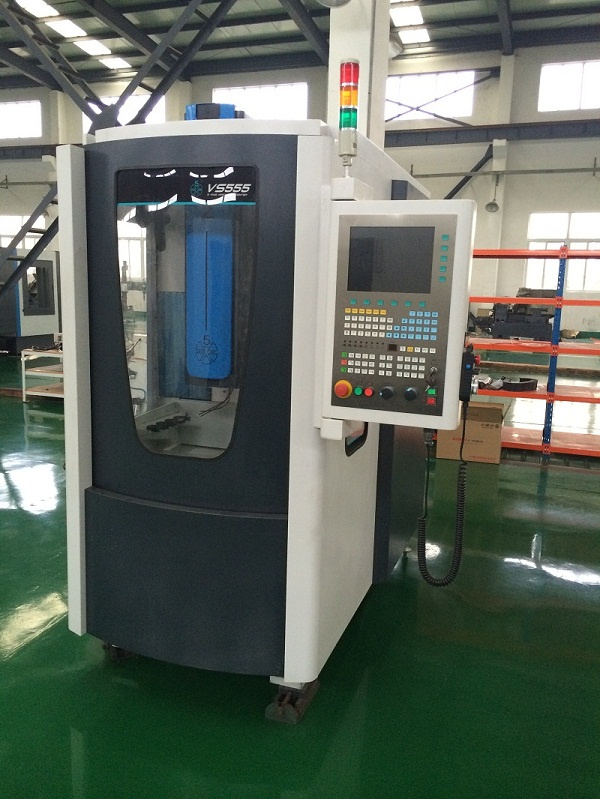

GOOD QUALITY GOOD PRICE 5Axis CNC machine center VS555-K
FeaturesVS555/VS655 Five Axis Control Machining Center
1.Equipped with direct drive motor swing table
2.Large power, high rigidity for machine body, closed cover
3.By using the isolation structure, the machine structure area and the machining area are completely separated in order to reduce the machine structural thermal expansion.
4.The main structure of the machine and peripheral devices are evenly placed on framework
5.Automatic door opening systemSpecificationsProduct type | VS655 | unit |
Workbench | Table size | 250 | mm |
Table load | 100 | kg |
Machining range | X travel | 600 | mm |
Y travel | 300 | mm |
Z travel | 420 | mm |
spindle nose to table surface | 100-520 | mm |
Spindle | Spindle taper | BT30 | |
Spindle rotation | ± 110° | |
Max. speed | 12000/24000 | rpm |
Spindle motor | 5.5/7.5 | kW |
Rotary table | Turntable type | CNC250 | |
Disk diameter | 250 | mm |
Rotation angle | 360° | |
Feed speed | Cutting feed rate | 1-5000 | mm/min |
Max. rapid feed rate | 16000 | mm/min |
16000 | mm/min |
16000 | mm/min |
Tool(selection) | Tool type | BT30 | |
Tool capacity | 3 | |
Lubrication system | automatic | |
coolant system | oil-cooling | |
Accessories | Three axis guide specification(XYZ) | X, Y hard guide | |
Z hard guide | |
Three axis screw specification(XYZ) | X 3206 |
Y 3206 | |
Z 3206 |
Bearing specification | X 76205 2 6205 1 |
Y 76205 2 6205 1 | |
Z 76205 2 6205 1 |
positioning accuracy | 0.005 |
repeatability | 0.01 | mm |
Machine size | 2200X2200X2300 | mm |
Cover form | Full | mm |
Weight | 2.4 | T |
Main Export MarketCanada, the U. S. A., Italy, France, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U. A. E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and so on Customers
Our Factory
Since the establishment, our company has been committed to the innovation and development of CNC machines, constantly striving to build our own brands. We have developed T32, T36 and T40 CNC lathes, K7250, K714 and K715 CNC milling machines and V7250 machining centers.
In recent years, we have designed high-precision machining centers like VM850 and VM1060, VS655 milling machines and CLX400 inclined lathes. We have cooperated with Tsinghua University in the development of VS655 five axis milling machines and MMC740 high Vertical Machines. Our products were entitled as innovation products by Nanjing Science and Technology Bureau and Trade Commission of Jiangsu Province in 2008. Our company has more than 10,000 square meters of production area.
Our company has a strong technical force, professional fully-equipped technical team which are currently 30 professional R&D personnel, including a Ph.D.,8 Masters, accounting for 30% of R &D personnel. And more than 30 engineers and technicians engaged in research and development of new products, design and manufacturing, the enterprise has technological innovation and ability to promote the use of new technologies. Concentrating on R&D technology department, the professional departments collaboration, mainly engaged in the industry much-needed new technology, new methods and new equipment of research and development work research and development capabilities, education high-level, with rich practical experience of senior engineers and project engineers and technical personnel, is bring together a combination of a reasonable age structure of the technical team. In order to grasp the opportunity of CNC machine tools Market quickly, our company has cooperate with Tsinghua University. Jiangsu University, and jointly collect the market and facilitate R&D. Scientific research institutions of its technological capability to build a leading technology, high-performance products.
Certificates
Prod Model: |
VS555-K |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Type: |
5 Axis CNC Machine Center Vs555-K |
Place Of Origin: |
Jiangsu China (Mainland) |
CNC System: |
Fanuc/Siemens |
Package Way: |
Standard Wooden Case |
Delivery Date: |
45days |
Warranty: |
1 Year |
Process Usage: |
Metal-Cutting CNC Machine Tools |
Movement Method: |
Contour Control |
Control Method: |
Semi-Closed Loop Control |
Numerical Control: |
CNC/MNC |
Performance Classification: |
Economical CNC Machine Tools |
Processing Precision: |
0.01 |
Nanjing Kenyo Precision Machine Manufacture Co., Ltd is a high-tech enterprise, supplying high-end CNC machines in the last few years. The company locates in Guabu CNC industrial park, LUHE district, Nanjing City, Jiangsu Province, China, and consists of eco-friendly production workshops, R&D center, worker apartment buildings, and modern office buildings. The company occupies 45 acres land, including 16000 sqm for manufacturing area.
Nanjing Kenyo company being dedicated in innovative researches and development, specializes in manufacturing CNC Machine, CNC Milling Machine, CNC Machining Center, CNC Lathe, CNC Turning Machine, 5 Axis CNC Machining Center, Industrial Robot Arms...
In 2011, Nanjing Kenyo enterprise established engineering R&D center for Nanjing Municipal Vertical-Horizontal Hybrid Machining Center, as well as Jiangsu Province post-graduates' workstation in enterprises by cooperating with a very famous science and technology univerisity in Nanjing named "Nanjing Southeast University".
In 2012, the enterprise acquired ISO9001 issued by CQC, Jiangsu Province Export Product Quality Assurance Certificate, and CE certificate.
On January13, 2015, Nanjing Kenyo enterprise successfully listed in Beijing stock exchange"New Three Borad", and the security code is"831883".
Keeping building high-quality brand, Nanjing Kenyo enterprise owns a research team, who has core technology and independent knowledge. In the year of 2011, VS1580 five- axis machining center was awarded with the title "Jiangsu Province First key Product". In 2012, VS855 column-moving five-axis machining center was listed in "Nanjing Science and Technology Project".
Nanjing Kenyo enterprise sets sales offices in Beijing, Tianjin, Shanghai, Chongqing, Guangzhou these five very developed cities in China, and the CNC machines are used in military field, aviation field, aerospace field and wind energy field. In addition, Nanjing Kenyo enterprise has exported machines to foreign markets, such as America, Austrilia, Russia, Indonesia, Middle East countries, Dubai, Philippines, New Zealand, Africa, Turkey, and other countries in Europe.
Each year, we take part in "Beijing / Shanghai International Machine Tool Exhibition", which is the most important machine exhibition in China in the whole year. Moreover, we take part in certain global machine exhibitions, such as the machine exibition held in Indonesia, since we have office there, and we export our CNC machines mainly to markets in Indonesia.
Since eatablished, Nanjing Kenyo enterprise adheres to the scientific development concept, and gains its own concept "Business-first, people-oriented, credit-based" during its development. For the time being, Nanjing Kenyo Precision Machine Manufacture Co., Ltd owns 29 patents and 2 software copyrights. We keeps supplying high quality CNC machines, and we offer very competitive factory. More and more, we have a very efficient after service group, who will answer your questions promptly and help solve your problems in 48 hours. If our customers need very professional technicial support, we can send our engineers to help them solve problems.
If you have more questions, please feel free to ask. We would be very glad to serve you.
