Product Specifications
| Prod Model: |
TS0504F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Pin Assignment: |
Data Provided Over Pairs Over 1/2and 3/6 |
| Port: |
5*10/100m Tx |
| Poe Distance: |
up to 100m |
| Poe Standard: |
802.3af, 802.3at, Max 30W Output |
| Network Site: |
Intermediate Node Routers |
| Application: |
SOHO, IP Camera and Wireless Access Point Power Supply |
| Firewall: |
Without Firewall |
| Transfer Rate: |
10/100Mbps |
| Port Structure: |
Not Modular |
| Network: |
Ethernet |
| Performance: |
Store-and-Forward |
Product Description

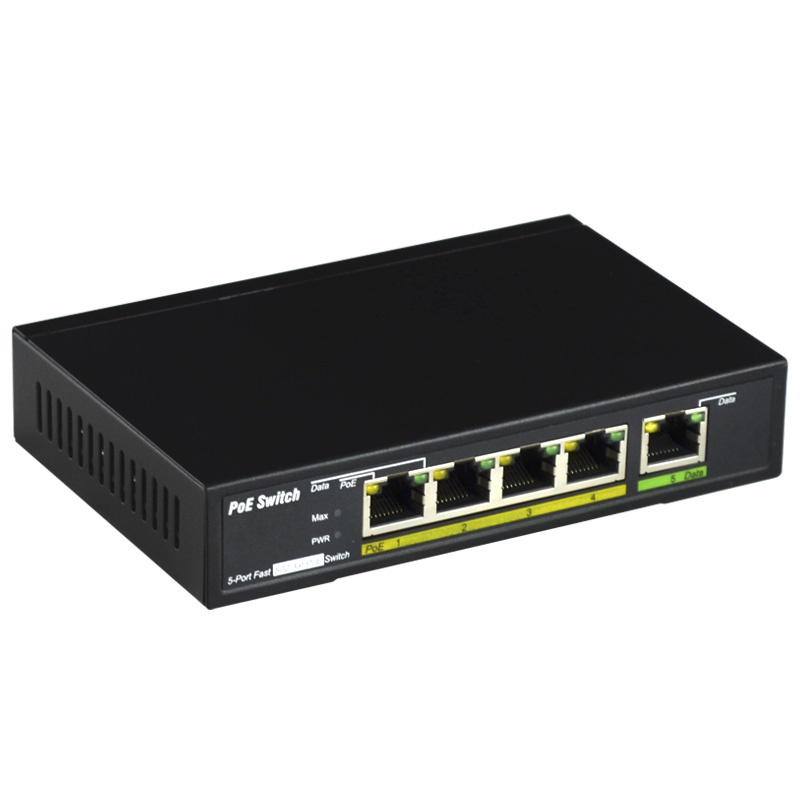

TS0504F4-Port 10/100Mbps and 1-Port 10/100Mbps TX uplink port. 802.3at PoE switch with 4 port PoE(Port1~4), The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.
TS0504F is easy to install and don't need to configuration. With outstanding performance and quality, the desktop PoE switch is an ideal choice for expanding your home or office network.
Features
Interface information
4-Port PSE 10/100Mbps Fast Ethernet
1-Port 10/100Mbps uplink
4-Port PoE port(Port1~4)
PoE(Power over Ethernet)
Complies with IEEE802.3af/at Power over Ethernet
Supports PoE Power up to 32W for each PoE port
Auto detect power device
PoE Overload Alarm LED
Remote power and Data feeding up to 100m
Switch
Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
2K MAC address, automatic address learning and address aging
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
Key Features and Benefits
PoE Features
The TS0504F can provide up to 32 Watts of power to attached devices, such as VoIP phones, wireless access points; surveillance cameras etc, all over existing cat. 5 cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.
PoE Power Usage Display
The TS0504F helps users to monitor current status of PoE power usage easily and efficiently by its intelligent PoE Management feature of LED indication, there are one orange LEDs named "max" located on left side of the front panel. When Port 1-4 output is >= 80%, the LED will be lighted up, when Port 1-4 output is> = 100%; the LED will blink to notify customers for better PoE allocation. If PoE Power consumption over 100%, the system will cut off the power of the lowest-priority port. Priority (port 1 > port 2 >port 3 > port 4).
Application
TS0504FF is an ideal solution for IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) application. it is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi- channel (802.11a/b/g/n) wireless LAN access points and other network devices by providing double PoE power than conventional 802.3af PoE currently.
Specification
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Network Media(Cable) | 10BASE-T: UTP category3,4, 5 cable (≤100m)
100BASE-TX: UTP category 5,5e cable (≤100m)
100Base-FX: MMF or SMF SFP Module |
| LED | System: Power (Green)
PoE Overload Alarm Led: Max(Orange)
Per port: PoE (Orange), LNK/ACT(Green), SFP(Orange) |
| MAC Address Table | 2K, Auto-learning, Auto-aging |
| Transfer mode | Store-and-Forward |
| Switching Capacity | 1G |
| Dimensions (LxWxH) | 140×92.5×28mm (5.51 x 3.64 x 1.1 in ) |
| Weight | 0.296kg |
| Fan | Fanless |
| Power Supply | 55VDC /1.1A, 55VDC /1.6A, 55VDC /2.3A(Optional) |
Certification | CE/EMC Class B CE/LVD (EN60950)
FCC (Part 15 Class B) |
| PoE(Power Over Ethernet) |
| PoE port | Port1~4 |
| PoE Power on RJ-45 | Mode A 1/2(+),3/6(-) |
| PoE Power Output | Per port 55V DC Max.32W |
| PoE Power Budget | 55W/80W/120W (Optional) |
| Environmental |
| Operating Temperature | -10°C ~ 45 °C |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
Adapter information
| Power Supply | PoE Power Budget |
| 55V/1.1A | 55W |
| 55V/1.6A | 80W |
| 55V/2.3A | 120W |
