Product Specifications
| Prod Model: |
CWF52-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation Type: |
as Required |
| Production Process: |
Solder |
| Material: |
Metal Oxide |
Product Description

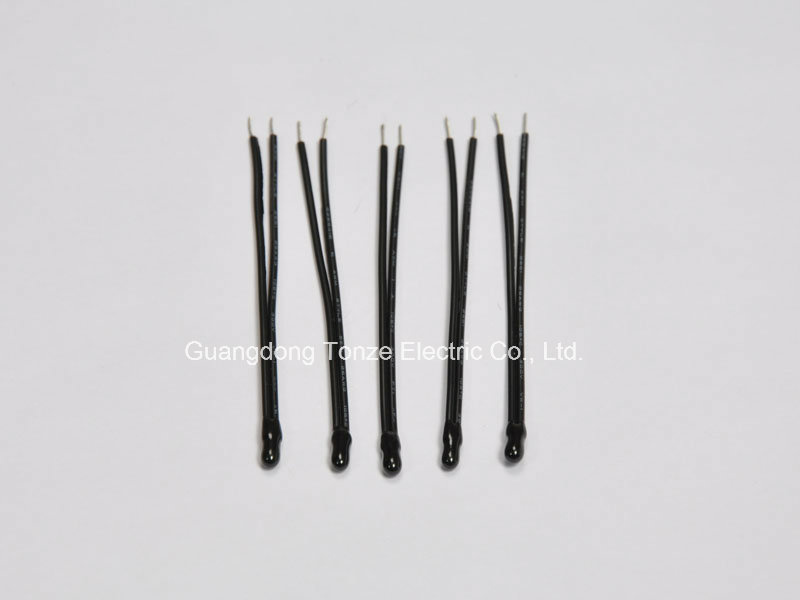

· Epoxy resin wrapped NTC sensor
· Connect with insulated wire with different wire gauge available
· Featuring moisture protection, good insulation
· High reliability, little time constant and sensitive response
· A variety of coating configuration and wire gauge are available according to different usages
· Cable length could be tailored according to customers' requirement Application:Battery powered screwdriver, drill, battery pack, digital calendar, air conditioners, refrigerators, water heaters, room heaters, freezers, drinking water dispenser, air warmers, dishwashers, disinfecting cabinets, washing machines, driers...…

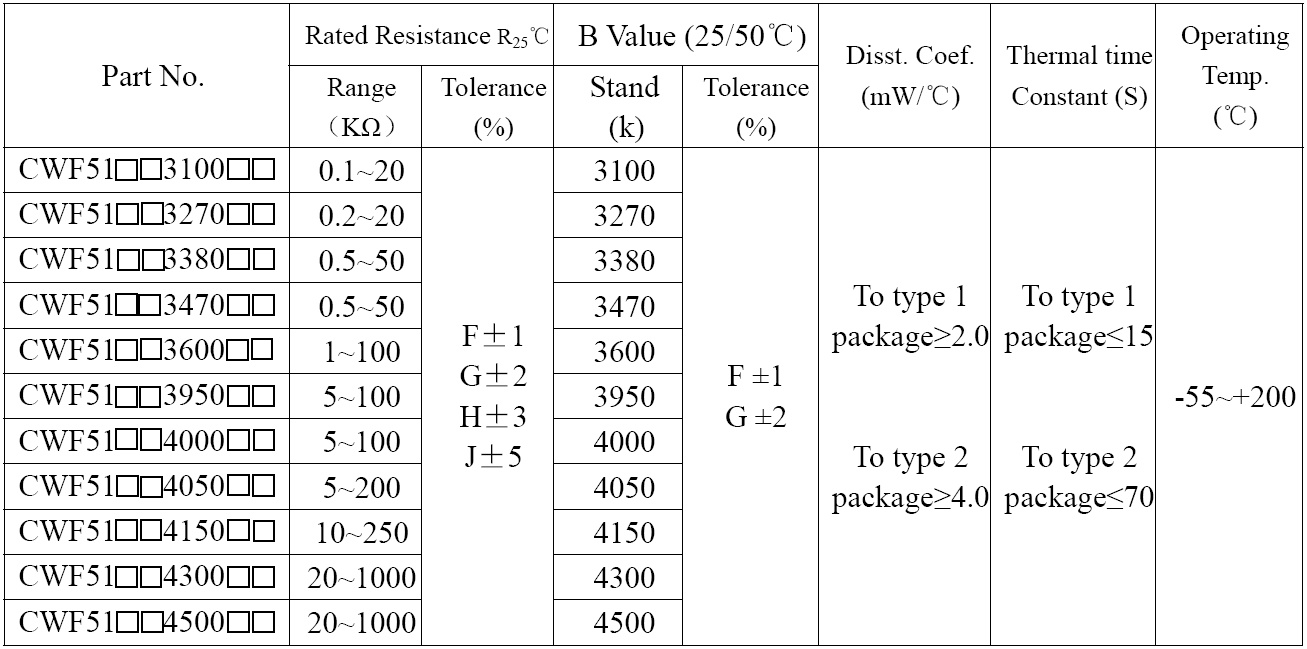

Specification:· The range of resistance under the rated zero power (R25ºC): 50KΩ
· The allowable tolerance of R25ºC: ±1%,±3%,±5%
· The range of B value (K): 3977K
· The allowable tolerance of B value: ±1%
· The range of operating temperature: -30ºC ~ +105ºC
· Dissipation factor: ≥2.0mW/ºC (In Still Air)
· Thermal time constant: ≤15S (In Still Air)
· Encapsulated: Epoxy coated
· Dimension: Customized
Established in 1996, Guangdong Tonze Electric is a professional and leading manufacturer specializing in high precision NTC THERMISTORS and TEMPERATURE SENSORS, as well as Medical and Home Electric Appliances. We are capable of making all kinds of specifications to meet your requirements and providing technical support.
We are an ISO9001 and ISO14001 certified company, covering an area of 39, 000sqm located in Shantou, China.
With excellent testing equipment, professional manufacturing technique, and perfect quality control system, we aim to serve customers with high product quality and honesty.
Trust in us for our 18 years experience serving the famous enterprises. Welcome to contact.
