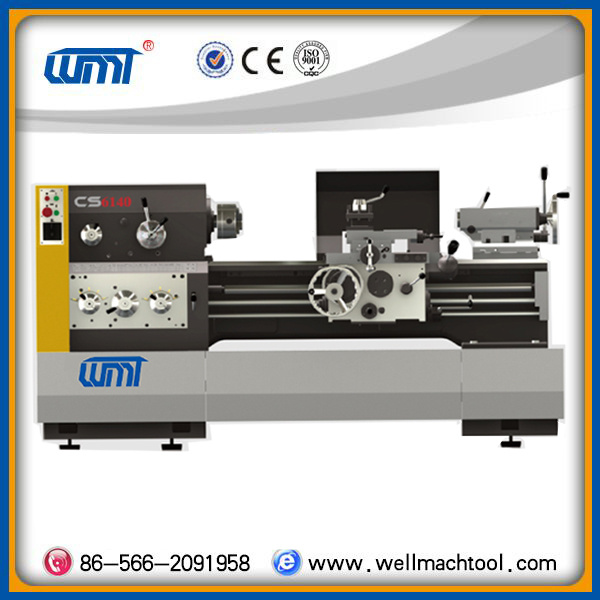

Product Specifications
| Prod Model: |
CS6140 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle Bore: |
52mm |
| Max. Swing Over Bed: |
400mm |
| Distance Between Centers: |
750/1000mm |
| Machine: |
Lathe |
| Clour: |
Customer Appoint |
| Voltage: |
110V, 220V, 380V |
| Package: |
Fumigated Poly-Wood Case |
| Payment: |
T/T, Paypal, LC, West Union |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Steel Workpiece |
| Tool Holder: |
4-Statio Toolpost |
Product Description
Feature
Precision ground and supersonic frequency
The spindle system is high in rigidity and accuracy
The noise of the machine is low
Main specification :
| SPECIFICATIONS | CS6140 | CS6150 |
| Capacity | Max. swing dia. over bed | Φ400mm(16") | Φ500mm(20") |
| Max. swing dia.in gap | Φ630mm(24-3/4") | Φ710mm(28") |
| Max. swing dia. over slide | Φ220mm(8-3/4") | Φ300mm(12") |
| Max. workpiece length | 750/1000/1500/2000/3000mm(30/40/60/80/120") |
|
| Spindle | Spindle bore diameter | Φ52mm(2") | Φ82mm(3") |
| Type of spindle nose | CS6140:ISO 702/III NO.6 bayonet lock |
| Spindle speed | 24 steps 9-1600rpm |
|
| Spindle motor power | 7.5kw |
| Tailstock | Diameter of quill | Φ75mm(3") |
| Max. travel of quill | 150mm(6") |
| Taper of quill (Morse) | MT5 |
| Turret | Tool O.D. size | 25mm×25mm(1"×1") |
| Feed | Max. X travel | 145mm(5-3/4") |
| Max. Z travel | 320mm(13") |
| X feed range | 93 kinds 0.028-6.43mm/r |
| Z feed range | 93 kinds 0.012-2.73mm/r |
| Metric threads | 48 kinds 0.5-224mm |
| Inch threads | 48 kinds 72-1/4t.p.i |
| Module threads | 42 kinds 0.5-112 πmm |
| Diametric pitch threads | 42 kinds 56-1/4 t.p.i.π |
| Other | Cooling pump | 0.06kw |
| Length | 2382/2632/3132/3632/4632mm |
|
| Width | 975mm |
| Height | 1230mm |
| Weight | 1795/2050kg | 2050/2100kg |
| 2250/2450/2850kg | 2300/2500/2900kg |
Standard Accessories | Optional Accessories |
| 3-jaw chuck (325mm) | Quick change tool post |
| 4-jaw chuck (400mm) | Turning tools |
| Face plate | Leadscrew cover |
| Steady rest | Chuck guard |
| Follow rest | Tool post cover |
| Splash guard | Digital readout system |
| Stand | Taper turning attachment |
| Halogen work lamp | One piece casting stand |
| Toolbox & tools |
|
| Coolant system |
|
| Foot brake |
|
| Five position carriage stop |
|
