Product Specifications
| Prod Model: |
EP-V7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 54Mbps: |
WiFi Modem Router |
| Type: |
Wireless |
| Firewall: |
Firewall |
| Application: |
SOHO |
| Transfer Rate: |
54Mbps |
| Ports: |
6 |
| Port Structure: |
Modular |
| Network Site: |
ADSL Router |
| Network: |
802.11b/G/N |
| Performance: |
54Mbps |
| Architecture: |
54Mbps |
Product Description

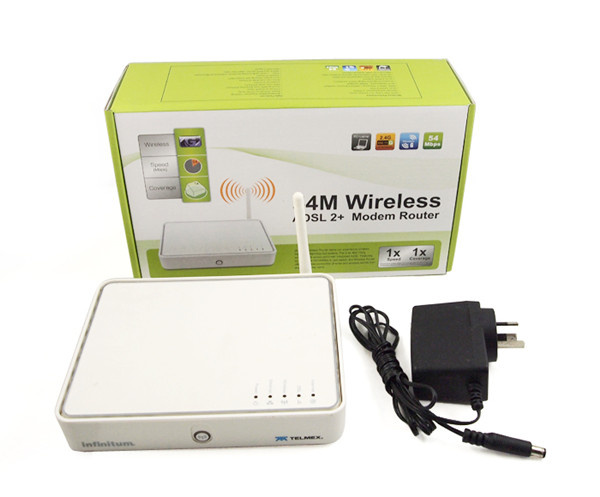

4 LAN 500MW Hi-power ADSL Modem Router
Model: EP-530G
Features
1. Inbuilt ADSL2+ 54Mbps Wireless Router + 4 LAN ports + WiFi AP + QOS
2. Solid CAP, firm stable operation.
3. 3 Inbuilt antennas, double WiFi modules,
4. 500MW adjustable efficiency, 10 grades available, super buzzing signals.
5. 200M CPU, with 64M(256MBIT) Samsung system practical cache, and 32M flash, awesome BT booster.
6. Inbuilt Lightening-protection.
7. Updated Qwest firmware, QOS supported. To relieve network stum and delay.
8. DMZ and Firewall supported, ADSL PPPOE, alternative broadband accesses like fixed and automatical IP render
9. Compact and cool outlook design, longer working system.
Setup:
This Router needs wired encrytion for WiFi.
1. Set the IP into Automatically obtained IP ans DNS with Ethernet.
Remind: The Interenet address won't turn up immediately after exitting, wait seconds, then redraw the PC (F5).
2. Encrytion on router: Keep your 10 digits code, then search WiFi, access code needed automatically after encrytion double-cliking, input your code twice.
3. Decrytion on LAN Adapter: WEP/WPA/WPA2 decrytion follows user manual of your adapter.
4. Reset: Hold on 15 sec on the buttion "reset", efficiency adjustable online, system encryted automatically.
|
Hardware Specifications |
|
Interfaces WAN |
RJ11 DSL line port for ADSL/POTS and ADSL/ISDN |
|
Interfaces LAN |
4-port autosensing 10/100Base-T auto-MDI/MDI-X Ethernet LAN switch
Wi-Fi IEEE 802.11b/g on board |
|
Housing |
standing and wall-mountable design |
|
Dimensions |
35 x 181 x 138 mm (1.4 x 7.1 x 5.4 in.) |
|
Temperature |
0-40 C (32-105F) |
|
Humidity |
20% to 80% |
|
AC Voltage |
100-240VAC (switched mode power supply) |
|
DSL Modem Specifications |
|
ADSL |
ANSI T1.413 Issue 2,
ITU-T G.992.1 Annex A, B (G.dmt)
ITU-T G.992.2 Annex A, B (G.lite)
ITU-T G.994.1 (G.hs)
Maximum Rate: 8 Mbps for downstream and 1 Mbps for upstream |
|
ADSL2 |
ITU-T G.992.3 Annex A, B, L, M (G.dmt.bis),
ITU-T G.992.4 Annex A, B, L, M (G.lite.bis)
Maximum Rate: 12 Mbps for downstream and 1.5 Mbps for upstream |
|
ADSL2+ |
ITU-T G.992.5 Annex A, B
Maximum Rate: 24 Mbps for downstream and 3 Mbps upstream |
|
Wireless Performance |
|
Wi-Fi IEEE 802.11b/g access point |
|
Wi-Fi CERTIFIED® |
|
WPA™-Personal / WPA2™-Personal , WEP™ |
|
Wi-Fi Multimedia (WMM®) |
|
Wi-Fi Protected Setup (WPS™) |
|
Up to 4 virtual SSID APs support |
|
Security and service segregation per SSID |
|
Dynamic rates switching for optimal wireless rates |
|
Manual/auto radio channel support |
Shenzhen EDUP Electronics Technology Co, . Ltd., was established in 2004, we are a professional manufacturer and exporter specialized in the research, development and production of Wireless Networking products. We are located in Shenzhen, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We have over 200 employees and an annual sales figure that exceeds USD 5000000 and are currently exporting 80% of our products to worldwide places. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the USA, Canada, Iran, Turkey, Indonesia, Germany, France and Italy and so on.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
