Product Specifications
Prod Model: |
PTP-II |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Max Diameter Of Paper Roller: |
40mm |
Paper Width: |
58mm |
Printing Width: |
48mm |
Printing Speed: |
50-80mm/S |
Resolution: |
384 Dots/Line |
Paper Type: |
Thermal Paper |
Support Barcode: |
1d and 2D |
Command: |
Compatible with ESC / POS |
Interface: |
RS232+USB+Bluetooth |
Dimension (W*L*H): |
112*79*45.5mm |
Interface Type: |
RS232 + USB +Bluetooth |
Type: |
Thermal Printer |
Max. Paper Size: |
58mm |
Usage: |
Receipt Printer |
Style: |
Black or Dark Grey |
Product Description

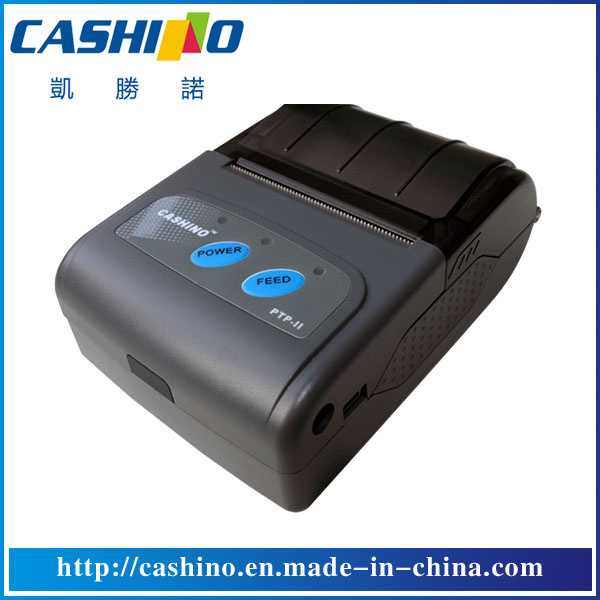

58mm thermal mobile portable mini printer with supporting bluetooth print
Note:
1. This portable printer with RS232+USB interface by itself, you can choose blustooth or wifi
2. You can choose bluetooth or wifi interface
3. We can provide you the SDK for development.
4. pass CE & FCC Certification
5. support windows 7 & 8 , and android & IOS
Feature:
Light weight and small size
Direct thermal printing method
High printing speeds up to 80mm/sec.
Easy to use and simple to maintain
Easy paper loading
Long lasting Li-ion battery supplied(7.4V, 2000mAh)
Support RS232, Mini USB, IrDA, and Bluetooth interface
NV image tool logo download
Portable device suited for outdoor usage
Appliacation:
Mobile POS/Retail
Hospitality
Packing citation
Deliveries
Warehouse/logistics
Onboard Transportations
Utility billing /meter reading
Field reparis/Installation
Specifications:
Model | PTP-II |
Dimension | 110*79*45mm |
Print method | thermal line printting |
Paper width | 58mm |
print width | 48mm |
Weight ( g) | 205 (not including the paper roll) |
Max diameter of paper roller | 40mm |
Dot per lie | 384 dots/line |
internal characters | ASCII CH(24× 12)GB18030(24× 24) |
Print speed | 50~80mm/s |
Life cycle time | 50km(printing density under 12.5%)/100 million pulses |
text and graphic Support | English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode (ID-Codebar/ITF/UPC A/UPC B/Code 39/Code 93/Code 128/EAN-8/EAN13/EAN 18 /2D-QR Code/Maxi Code/PDF417/Data Matrix) |
Dot pitch (resolution) | 203DPI/8 dots/mm |
interface | IR, Bluetooth, RS232, Mini USB |
Power | 2000mAh 7.4V rechargeable Lithium battery |
Recharge adapter | Stand by recharging / AC adapter |
Self-check | Without paper /low power/ cover open |
Black mark test | Supported |
Paper feeding | Easy paper loading |
commands | ESC/POS compatible with order sets |
Paper cut | By hands |
operate setting | Temperature -10° C~50° C; Humidity 20%~85% |
Recharge Setting | Temperature 5° C~40° C; Humidity 20%~85% |
Storage Setting | Temperature -20° C~70° C; Humidity 5%~95% |
Standard accessories | Long-term preservable paper, AC adapter, li-ion battery |
Optional accessories | Serial interface cable / leather coat |
