Product Specifications
| Prod Model: |
EL65D05IG9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
10-20day Depending on The Qty |
| Lifetime: |
>8000hrs |
| Max. Forward Current: |
30mA |
| Max. Forward Voltage: |
3VDC |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
P-type Semiconductor |
| Package: |
Customized |
Product Description
1, Wavelength 650 nm
2, High brightness
3, Class IIIa laser
4, CDRH RoHS compatible
5, Operating Temperature -10 to 50degree

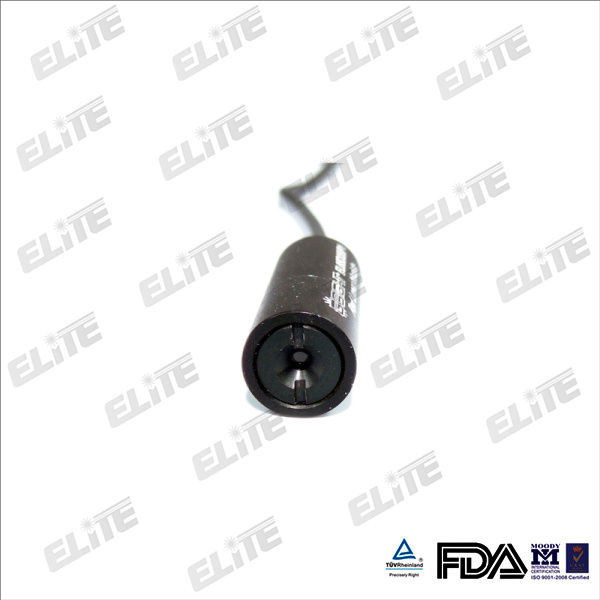

EL65D05IG9 Laser Diode Modules Key Features
1) Wavelength- 650 nm
2) High brightness, optical output power- 1 ~ 3.0 mW
3) Low operating current-30mA
4) Low operating voltage-3VDC
5) Class IIIa laser, CDRH/RoHS compatible
6) Static, Surge, and Reverse Polarity Protected
7) Circuit control-Auto power control (APC)
8) Operating Temperature -10 to 50° C.
Parameter |
Symbol |
Ratings |
Unit |
Optical Output Power |
P0 |
< 3.0 |
mW |
Operating Temperature |
Topr |
-10 to +50 |
° C |
Storage Temperature |
Tstg |
-40 to +80 |
° C |
Operating Humidity (none condensing) |
RHopr |
90 |
% |
Optical and Electrical Characteristics
Parameter |
Spec. |
Test Conditions |
Wavelength |
650 nm |
Tc = 25° C |
Output Power |
< 3.0mw |
Tc = 25° C |
Laser Modes |
CW |
|
Output Aperture |
2.5 mm |
Factory fixed |
Beam Size |
< 20x40 mm |
Factory fixed @ 50yards |
< 30x60 mm |
Factory fixed @ 100yards |
Divergence |
0.6 mrad |
Tc = 25 ± 3° C |
Optics |
Glass lens |
|
Operating Current |
< 30mA |
Tc = 25± 3° C |
Operating Voltage |
3 VDC |
|
CDRH Class |
Class IIIa |
|
MTTF |
10000 Hrs. |
Tc = 25± 3° C |
Dimensions |
6(d) x 12(l)mm |
|
Mechanical Characteristics
|
Parameter |
Specification |
Case Material |
Brass |
Vibration |
DIN EN 60068-2-6 Standard |
Shock |
DIN EN 60068-2-29 Standard |
