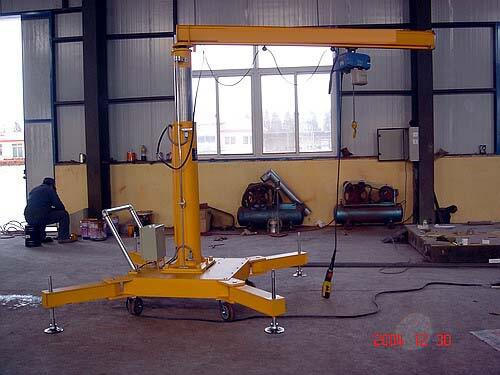

5t Small Mini Mobile Jib Crane with Wheels
| Price: |
US $ 800-2000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
5t Small Mini Mobile Jib Crane |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Loading Capacity: |
0.06~10 Ton |
| Max. Lifting Height: |
25m |
| Brand Name: |
Moris |
| Warranty: |
One Year |
| Type: |
Small Crane |
| Application: |
Mineral Area Usage |
| Power Source: |
Electric |
| Sling Type: |
Chain |
| Certification: |
CE |
| Condition: |
New |
Product Description
The Brief Introduction Of Mobile Jib CraneMobile Jib Crane is small and medium size lifting equipment, safe, reliable, high efficiency, energy-saving, time-saving and labor-saving and flexible feather, in the three-dimensional space and can operate freely, especially in the short, intensive lifting showing the occasion better than any other conventional lifting equipment unique advantages, widely used in workshops, warehouses, terminals and other fixed location.The Features Of Mobile Jib Crane 1. It is suitable to work in the dock, warehouse, workshop etc fixed working conditions, it can work within the 360 degrees to lift, move and materials handling. 2 . This type machine with advantages of the simple structure, operate convenience, turning agile, wide working conditions. 3. The steel structure of mobile jib crane is strong and built to last, optimized in design to reduce the stresses on your building. Your operators have good control over the load with stepless speed internal control along the runwayThe Advantages Of Mobile Jib Crane Efficient assembly Modular design and construction, horizontal adjustment device for the beam, clear and illustrated assembly instructions. Flexibility Available as complete crane or as jib crane kit, individual manufacturing and reduced transport-costs with the jib ster kit, component package ready for assembly together with the complete jib ster High quality standard Design according to international standards(EN 130011), high quality materials and controlled processing, powerful hoistsJib Cranes Application.1. The most common applications for jibs are individual workstations; machine tools, welding/fabrication stations, and some small assembly stations.2. They are also often used in simple loading / unloading operations where it is not necessary to spot a load precisely.3. Jib cranes most often handle lighter loads at lower duty cycles than their bridge and gantry crane counterparts.4. If there is a need for precise locating of heavy loads, a large area of hook coverage, or frequent use for heavy loads, the jib crane may not be the best solution..Jib Crane Safety Featurescranes.1. Overload protection device2. Top quality long time bearing polyurethane materials buffer3. Crane traveling limit switch4. Voltage lower protection function5. Emergency stop system6. Lifting height limit deviceSimple installation Wall mounted jib cranes can be mounted on wall, no special floor space required. And pillar mounted jib cranes only need a minimum of space for the pillar. It can be fastened to foundations with cast-in anchor bolts, with the help of intermediate plates, with heavy-duty anchor bolts, with dowel pins, etc. If required, anchorages and templates can also be supplied as extras..Shorten loading time, improve work efficiencyWith a jib crane, workers can lift, quickly transport and precisely deposit all kinds of work pieces at any time. In this way, the company can save the cost on traveling cranes or fork, and improve the work efficiency mostly. Using a jib crane, you can considerably reduce the set-up and non-productive times of your work..Easy handling, lighten laboring workWith our outstanding hoisting units: VL electric chain hoist or VT electric wire rope hoist or BH electric belt hoist, etc, you can position your load quickly and precisely. It is also very important that our jib cranes can relieve the strain of physically demanding work on your staff. The risk of injuries or accidents when handling heavy or unwieldy parts is considerably reduced..High quality with good price Serial production of our hoisting units and jib cranes, ending with full load factory testing of every part, certifies the functionality and quality to customers. We will offer you the most adequate equipments for your needs through good communication.

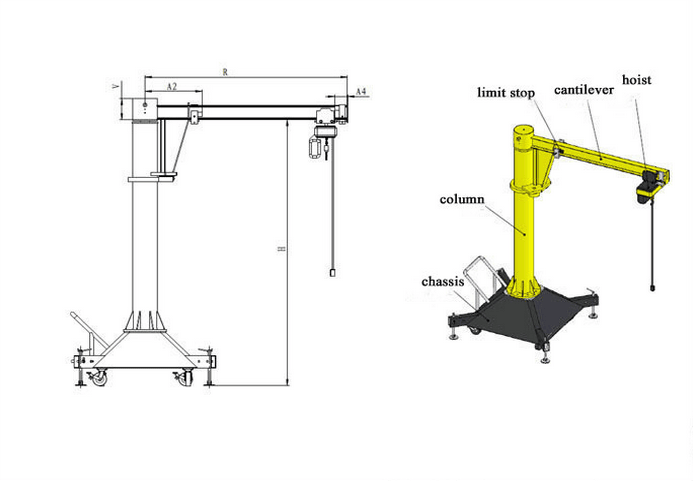

| The Technical Parameters Of Mobile Jib Crane |
| Model | SWL(kg) | Turning Radius(r) | Edge Of H
Steel Wide(F) | Base Size
(p*p) |
| DJB-PA-MV021 |
| 1000 | 75 | 1100*1100 |
| DJB-PA-MV021.5 |
| 1500 | 75 | 1100*1100 |
| DJB-PA-MV022 |
| 2000 | 75 | 1100*1100 |
| DJB-PA-MV022.5 | 125 | 2500 | 75 | 1100*1100 |
| DJB-PA-MV023 |
| 3000 | 75 | 1300*1300 |
| DJB-PA-MV023.5 |
| 3500 | 75 | 1300*1300 |
| DJB-PA-MV024 |
| 4000 | 90 | 1300*1300 |
| DJB-PA-MV031 |
| 1000 | 75 | 1100*1100 |
| DJB-PA-MV031.5 |
| 1500 | 75 | 1100*1100 |
| DJB-PA-MV032 | 250 | 2000 | 75 | 1300*1300 |
| DJB-PA-MV032.5 |
| 2500 | 75 | 1300*1300 |
| DJB-PA-MV033 |
| 3000 | 90 | 1700*1700 |
| DJB-PA-MV051.5 |
| 1500 | 90 | 1300*1300 |
| DJB-PA-MV052 |
| 2000 | 90 | 1700*1700 |
| DJB-PA-MV052.5 | 500 | 2500 | 100 | 1700*1700 |
| DJB-PA-MV053 |
| 3000 | 100 | 1700*1700 |
