Product Specifications
| Prod Model: |
919 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bucket Capacity: |
0.7 M3 |
| Rated Load: |
1800kg |
| Rated Power: |
60HP |
| Rated Speed: |
2400 R/Min (Rpm) |
| Bucket Width: |
1600mm |
| Max. Breakout Force: |
32kn |
| Operating Weight: |
3110kg |
| Overall Dimensions: |
5560mm*1600mm* 2700mm |
| Dumping Height: |
3200mm |
| Min Turning Radius: |
4500mm |
| Type: |
Small Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

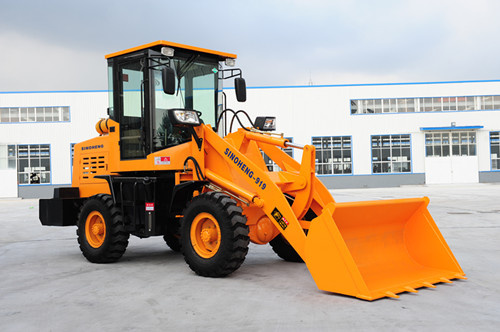

Mini wheel loader 919 ISO9001-ISO2000, Small Loader, Hydraulic Loader
1.0 Engine details:
(1) Model: 4100 (WEI CHAI)
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 60HP
(4) Rated Speed: 2400 r/min (rpm)
2.0 Transmission System
(1) Type: Shaft transmission
3.0 Bucket
(1) Bucket Capacity: 0.7 m3
(2) Bucket width: 1600mm
(3) Max. Breakout Force: 32KN
(5) Rated Load: 1800kg
(6) Operating Weight: 3110kg
4.0 Overall Dimensions:
(1) Overall Length (Bucket on ground position): 5560mm
(2) Overall Height
(a) Ground to Cabin Top: 2700mm
(b) Ground to exhaust pipe: It is below from the top of cab
(c) Dumping Height: 3200mm
(3) Overall Width: 1600mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4500mm
(3) Driving System: Four wheel drive, four wheel brake.
6.0 Brake System
(1) Service Brake: Hydraulic disc brake on four wheels
(2) Parking Brake: Hand operated
7.0 Tyre
(1) Model: 1400-16
8.0 Wheelbase: 2070mm
9.0 Track: 1360mm
Shipment: 2units shipped in 1X40HC
