Product Specifications
| Prod Model: |
HPS-65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type Of Output: |
Single Output(AC/DC to DC),Constant Voltage |
| Type Of Power Supply: |
Open Frame Power Supply |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
51 - 100W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Input Voltage: |
90~264VAC |
| Brand: |
Dhecn |
Product Description
Features:
High efficiency, high reliability
Universal AC input/ full range
Low leakage current <0.5mA
100% full load burn-in test
Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Fixed switching frequency at 65KHz
2 years warranty
Dimensions: 127*76.2*42mm (L*W*H)

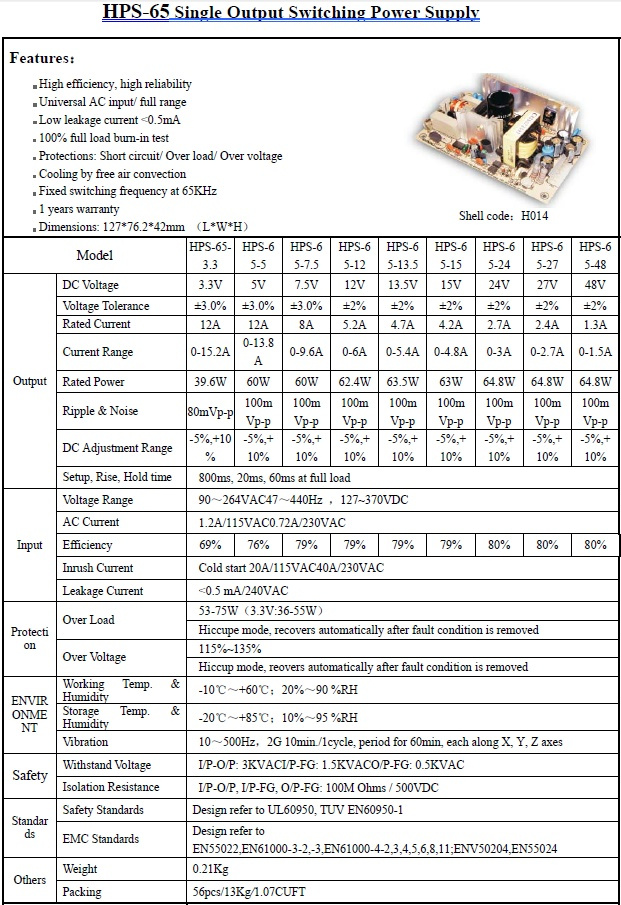

Specification:
1)INPUT
Voltage Range: 90~264VAC47~440Hz, 127~370VDC
AC Current: 1.2A/115VAC0.72A/230VAC
Efficiency: 69%(HPS-65-3.3); 76%(HPS-65-5); 79%(HPS-65-7.5); 79%(HPS-65-12); 79%(HPS-65-13.5);
79%(HPS-65-15); 80%(HPS-65-24); 80%(HPS-65-27); 80%(HPS-65-48);
Inrush Current: Cold start 20A/115VAC40A/230VAC
Leakage Current: <0.5 mA/240VAC
2)PROTECTION
Over Load: 53-75W(3.3V: 36-55W) Hiccupe mode, recovers automatically after fault condition is removed
Over Voltage: 115%~135%Hiccup mode, reovers automatically after fault condition is removed
3)ENVIRONMENT
Working Temp., Humidity: -10º C~+60º C; 20%~90 %RH
Storage Temp., Humidity: -20º C~+85º C; 10%~95 %RH
Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes
4)SAFETY AND STANDARD
Withstand Voltage: I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
Safety Standard: Design refer to UL60950, TUV EN60950-1
EMC Standard: Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024
5)OUTPUT
Model HPS-65
3.3 5 7.5 12 13.5 15 24 27 48
DC Voltage: 3.3V 5V 7.5V 12V 13.5V 15V 24V 27V 48V
Voltage Tolerance: ± 3.0% ± 3.0% ± 3.0% ± 2% ± 2% ± 2% ± 2% ± 2% ± 2%
Rated Current: 12A 12A 8A 5.2A 4.7A 4.2A 2.7A 2.4A 1.3A
Current Range: 0-15.2A 0-13.8A 0-9.6A 0-6A 0-5.4A 0-4.8A 0-3A 0-2.7A 0-1.5A
Rated Power: 39.6W 60W 60W 62.4W 63.5W 63W 64.8W 64.8W 64.8W
Ripple & Noise: 80mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p
DC Adjustment Range: -5%, +10%, -5%, +10%, -5%, +10%, -5%, +10%, -5%, +10%, -5%, +10%, -5%, +10%, -5%, +10%, -5%, +10%
Setup, Rise, Hold Time: 800ms, 20ms, 60ms at full load
