Product Specifications
| Prod Model: |
6640 |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: |
0.17mm 0.20mm 0.25mm 0.30mm 0.35mm |
| Width: |
1000mm |
| Form: |
in Rolls. |
| Package: |
Carton and Pallet |
| Storage Life: |
1 Year |
| Application: |
Motor |
| Type: |
Solid |
| Chemistry: |
Organic Insulation |
| Material: |
Paper |
| Thermal Rating: |
F 155 |
| Maximum Voltage: |
10KV~20KV |
Product Description

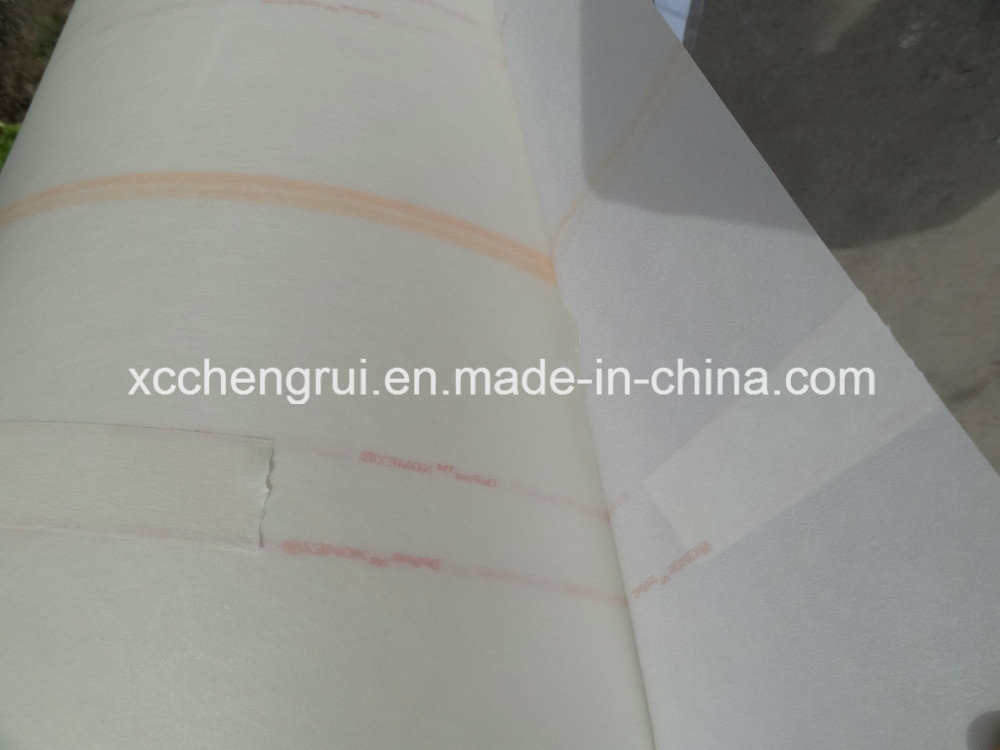

6640 NMN Flexible Laminate high quanlity transformer electrical insulation paper is a three-layer flexible laminate in which Du Pont Nomex paper is bonded to the two sides of polyester film.
We also call it transformer insulation paper, motor insulation paper, high quality insulation paper or top grade electrical insulation paper.
Features and Applications of 6640 NMN Flexible Laminate motor, transformer or other Electrical appliances electrical Insulation Paper.
- Insulation class F (155oC)
- Excellent Heat Resistance, dielectric property and Mechanical Strength.
- Good cutting and overload resistance, high stiffness. Good compatibility with insulation varnish.
- As slot, interturn and liner insulation for F-grade motor and electric appliances.
THICKNESS mm | NMN 0.16 | NMN 0.18 | NMN 0.2 | NMN 0.24 | NMN 0.3 | NMN 0.35 | NMN 0.4 | NMN 0.47 |
| Tensile Strength N/10 | MD | 170 | 202 | 234 | 273 | 335 | 403 | 454 | 476 |
| TD | 143 | 170 | 210 | 214 | 332 | 407 | 403 | 493 |
| Elogation % | MD | 28 | 31 | 25 | 34 | 50 | 49 | 54 | 51 |
| TD | 4 | 52.6 | 40.31 | 46.12 | 81 | 64 | 73 | 87 |
| Breakdown |
| 12 | 13 | 15 | 16 | 17 | 18 | 22 | 24 |
