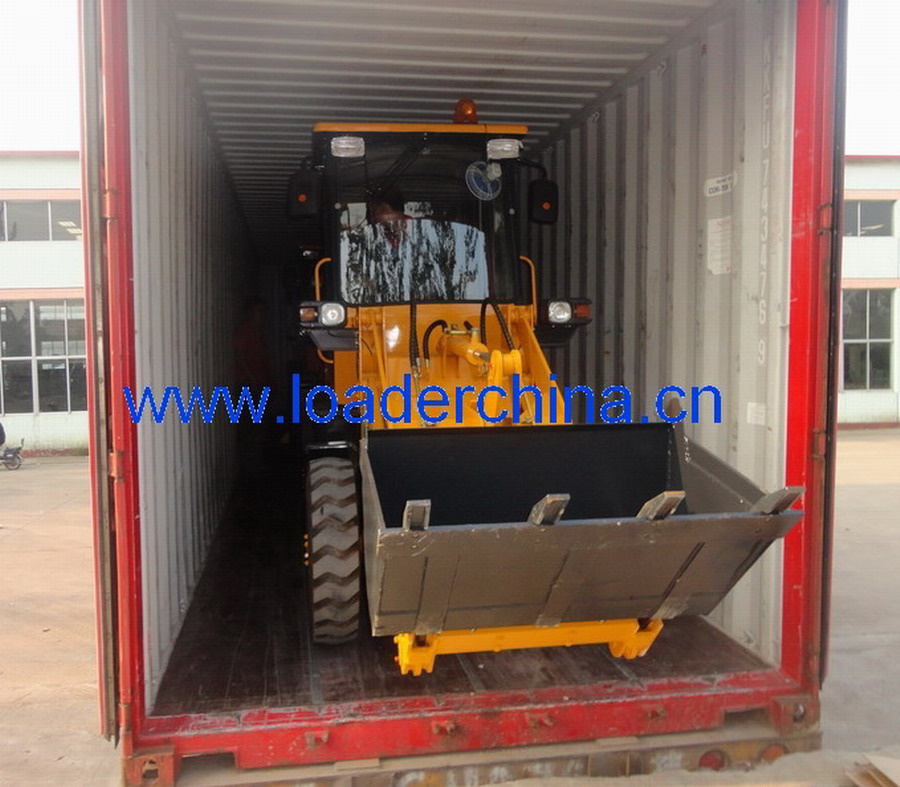

0.6t Mini Wheel Loader with Snow Plow/Snow Blade

0.6t Mini Wheel Loader with Snow Plow/Snow Blade
Price: US $ 6000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T
Model ZL06F Wheel Loader
Use: Wheel loader ZL06F is widely used in construction works, public works, urban and rural parks, highway and transportation, station and wharf, and irrigation and water conservancy, as well as various coal pits, limekiln, coal yard, sand and stone quarry, cement mill, etc. It is especially applicable in narrow sites to shovel and load or transfer loosing soil, sand and stone, coal cinder, lime, fertilizer, trash and other loosing materials. This mini wheel loader can be used together with various trucks, tractors farm vehicles and construction machineries (sand mixer, pug mill), etc.

Features:
1. Using 750-16 tyres to increase the stability of the whole machine;
2. Running system adopts mechanical drive, and this compact wheel loader uses short wheel base and 130 axle to make it only 1260mm wide, short and flexible;
3. Power system adopts CHANGCHAI L24 single-cylinder engine to make the machine energy saving and environmentally friendly with high working efficiency;
4. Drive mode of this mini wheel loader adopts 4-wheel drive to make it light and flexible;
5. This small wheel loader can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this compact wheel loader to change quickly among multiple accessories, such as hay grapple, grass grab, log grab, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow blade, snow bucket, drum grab and barrel grapple, etc.

We have various models that can meet your different capacity needs. Any colors are available upon request.

Optional Accessories:
Multiple optional accessories can meet your application or use need, with hydraulic quick hitch one machine can be used as much as 6 or even 8 machines. These mini wheel loaders are ideal for a wide range of jobs.
Model: ZL06F
  Item Parameters
Performance 1. Rated Load 600 kg
2. Total Weight 1860 kg
3. Rated Bucket Capacity 0.3 m 3
4. Max. Tractive Force 25 KN
5. Max. Breakout Force ≥ 20 KN
6. Max. Gradeability 38°
7. Dumping Height 2350 mm
8. Dumping Reach 800 mm
9. Raising Time ≤ 4.5 s
10. Total Cycle Time ≤ 8.5 s
11. Overall Dimensions (L x W x H) 4300*1300*2400 mm
12. Min. Turning Radius 3000 mm
Engine 13. Model CHANGCHAI L24
14. Type Single-cylinder, Horizontal, Water-cooled Evaporative, Four-stroke Engine
15. Rated Power 15.5 kW/17 kW
16. Rated Speed 2200 rpm
17. Min. Fuel Consumption Ratio ≤ 244.8 g/kW· h
Transmission 18. Mode Mechanical Shift
19. Gear Shift 2 Forward, 1 Reverse, High & Low Speed
20. Max. Speed 25 km/h
Drive Axle 21. Model of Axle 130 Drive Axle
22. Wheel Tread 1100 mm
23. Wheel Base 1760 mm
Drive 24. Mode 4-wheel Drive
Hydraulic System 25. System Working Pressure 16 Pa
26. Fuel Tank Capacity 50 L
Brake System 27. Service Brake Drum Brake
Tyre 28. Type Specification 750-16
29. Front Tyre Pressure 0.40 Mpa
30. Rear Tyre Pressure 0.35 Mpa

Prod Model: ZL06F
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Load: 600kg
Rated Bucket Capacity: 0.3 M3
Total Weight: 2000kg
Engine Model: Changchai L24
Transmission Mode: Mechanical Shift
Size: Small-Scale
Certification: CE
Condition: New
Type: Front End Wheel Loader
Located in the small construction machinery manufacturing base of China, Qingzhou City of Shandong Province, Qingzhou Guohua Construction Machinery Co., Ltd. is a professional small machinery manufacturer specialized in manufacturing of wheel loader, mini-loader, log loader, log grab, grass loader, grass grab, hay loader, hay grab, bale loader, bale grab, snow grader and forklift, as well as the gearbox for these compact construction machineries.

Founded in 1997, our factory covers an area of 15, 000 square meters and now has more than 180 workers. Equipped with complete production equipment, all necessary test devices and 6 senior engineers with over 15 years of experiences in mini machinery R & D, we can manufacture any type of compact construction machineries according to customers' design and requirements (ODM service). We also can provide OEM service for our worldwide customers and partners.

Thanks to our state-of-art technology, all our machineries have reliable performance and efficient operation and are CE approved. Besides providing the whole unit of different machineries, we also can provide quality accessories and parts for those machineries, such as multi-way directional valve (integrated with the priority valve), travel valves, precise filter, gear pump, instrument desk, entire vehicle lines, etc.

Due to the compact design, stable performance and competitive prices, our products sell well in the worldwide market and get favorable comments from our partners and customers at home and abroad. We warmly welcome worldwide distributors, buyers and customers come to visit us to build a mutually beneficial cooperation.
