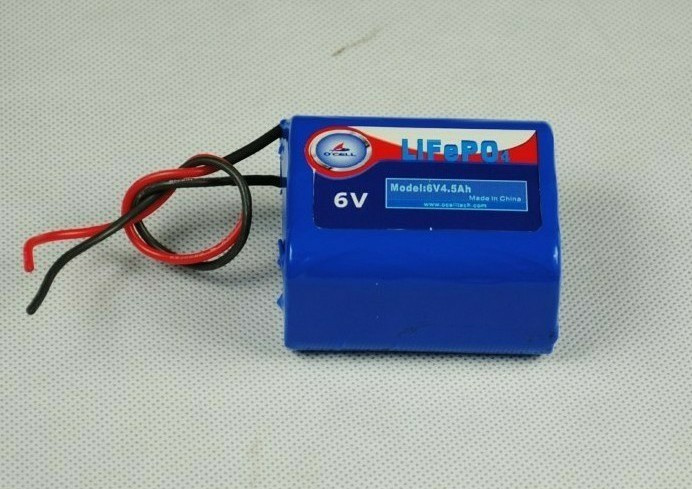

UL approved cell
Voltage: 6.4V
Capacity: 4.5AH
Configuration: 18650-1.5Ah 2S3P
Dimension can be customization
Light weight, long lifecycle...
Typical Capacity Ah 4.5AH
Minimum Capacity Ah 4.3AH
Nominal Voltage Voltage 6.4V
Dimension (L*W*H) mm 38x56x68mm/20x67x120mm(Customization accepted)
Approx. Weight g 500
Max. Charge Voltage Voltage 7.3
Cut-Off Discharge Voltage Voltage 5
Standard Charge Current AMPS 2A recommended
Rapid Charge Current AMPS 4
Continuous Discharge Current AMPS 2A
Pulse Discharge Current(5S) AMPS 10A
Storage Temperature Range oC -20oC--70oC
Working Temperature (Charging) oC -10oC--45oC
Working Temperature (Discharging) oC -20oC--60oC
Life Cycle(2C, 80%DOD) 1000
Life Cycle(1C, 80%DOD) 2000
Our company specialized in LiFePO4 battery according to the customer request.
O'CELL TECHNOLOGY Co., Ltd., established in Oct. 2008, is a high-tech enterprise which involves in research, production, sales and services of qualified Lithium Iron Phosphate (LiFePO4) cell, battery pack, reliable battery management system and one-stop power solution, for a wide range of applications worldwide including E-bike, HEV, EV, AGV, Cordless Power Tools, Solar & Wind Power Generation System, UPS, EPS, Lighting, RC Toys, etc.
O'CELL's manufacturing facilities are ISO9001: 2008 and ISO14001: 2004 registered. It's products are compliant with CE, RoHS and have passed UN transportation testing, which is required for international transportation of all lithium batteries.
O'CELL people are the engine of our success today and in the future. They are motivated to keep well informed about the most recent technological developments and modernization management. Meanwhile, O'CELL continues to invest in research and development in order to take a leadership role in advanced lithium battery technology.
O'CELL factory covers over than 96, 000m2 and bases in Yichang which is famous for Three Gorges and the biggest water power center in the world. Taking the advantage of sufficient electricity, O'CELL will pass the benefit to our customers. O'CELL sincerely expects to cooperate with our customers for mutual benefit and common development. O'CELL also hopes that we can contribute to new energy development and green circular economy.
