HD-SDI Monitor

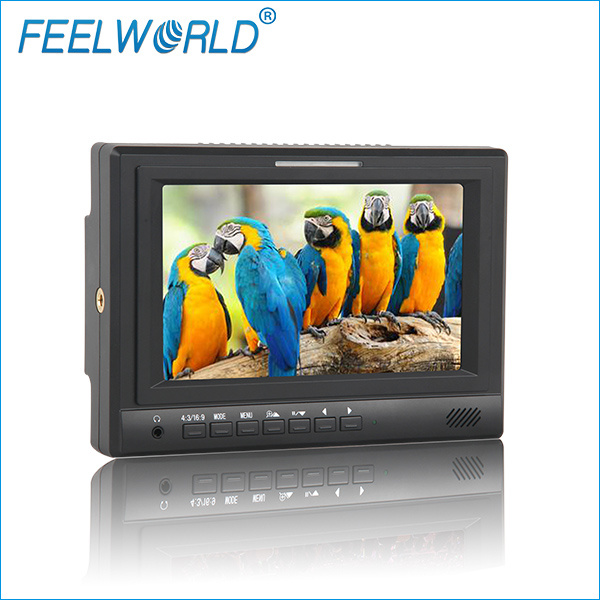

1. 7" Broadcasting Monitor w/3G-SDI for Photography
2. LED backlight
3. Brightness 250CD/m2
| 7" Broadcasting Monitor w/3G-SDI for Photography |
| Specification |
| Description: | 7" Broadcasting Monitor w/3G-SDI for Photography |
| Model: | FW679-HSD600 |
| Resolution: | 1024x600 pixels (up to1920×1440) |
| Brightness: | 250 cd/m² |
| Contrast Ratio: | 700 :1 |
| Aspect Ratio: | 16 :9 |
| Backlight: | LED |
| Viewing Angle: | 75°/75°(L/R) 70°/75°(U/D) |
| Input Voltage: | DC6V-14V±15% |
| Input Signal: | 3G/HD/SD-SDI,HDMI,Component,Composite inputs |
| Output Signal: | 3G/HD/SD-SDI,Component,Composite outputs |
| Power Consumption: | ≤10W |
| Operation Temperature: | -20°C~60°C |
| Storage Temperature: | -30°C~70°C |
| Unit Size: | 205L × 145W × 51H (mm) |
| Unit Weight: | 750g(include battery plate); 650g(NO battery plate) |
| Advanced Features |
| * Peaking Filter(Focus Assist) |
| * Pixel-to-Pixel Mode |
| * 5D II Camera Mode |
| * Image Multiplication, Image Freeze |
| * Underscan,Overscan,H/V Delay |
| * Image Filp(U/D,L/R) |
| * Picture in Picture(PIP) |
| * Tally Red/Green Color |
| * Brightness,contrast ratio,tint,saturation and color temperature adjustable |
| * 3G/HD/SD-SDI,HDMI,Component,Composite inputs |
| * 3G/HD/SD-SDI,Component,Composite outputs |
| * 1 Earphone Jack in the front panel in addition to a built-in speaker |
| * Variety of user-replaceable battery plate(Sony V-Mount,Panasonic Anton,DV Battery ) |
| * LCD 16:9 Aspect Ratio, max 1920 x 1080 pixels |
| * High Brightness/Contrast & Dizzy-proof monitor with sun shade, to see clearly under sunshine |
| * Multi-mounting methods to view under different angles |
| Accessories | Accessories(optional) |
| XLR Power Adapter | Panasonic Anton Battery Plate |
| Mini HDMI Cable | Sony F970 Battery Plate |
| BNC to RCA Connector | Canon LP-E6 Battery Plate |
| Hot Shoe Mount | Panasonic D28S Battery Plate |
| Operation Manual | |
| Sun Shade | |
| BNC & SDI Cable | |
| Sony V-Mount Battery Plate | |
| Tally Indicator Light | |
