Product Specifications
| Prod Model: |
M1907B+ D18AD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black/White |
| TFT Resolution: |
800X480tvl |
| Connection: |
4 Wires/100m |
| Keys Type: |
Touch Keys |
| Camera: |
1/4 CCD Color |
| Power: |
11 - 13V |
| Viewing Angle: |
56 Degree |
| DVR Function: |
Photo Frame |
| Lock Control: |
Capture Over 64 Images |
| Power: Adapter: |
15V/1A |
| Type: |
Video Doorbell |
| Style: |
One-to-Many |
| Talkback Type: |
Color Video |
| Automation: |
Automatic |
| Wireless: |
Wired |
| Application Scope: |
Home |
| Waterproof: |
Waterproof |
| Power Source: |
Plug |
| Brand: |
OEM/ODM |
Product Description

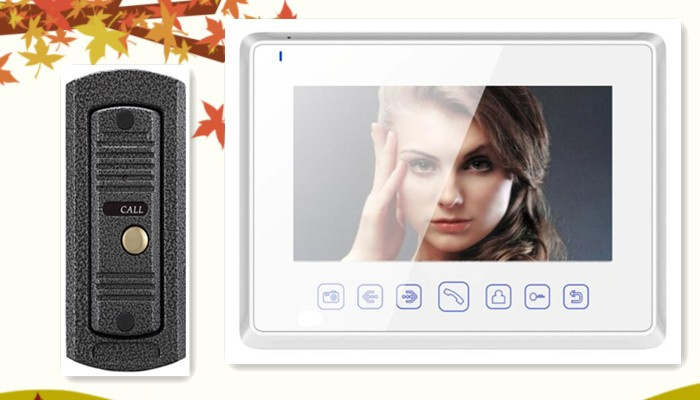

Cost Effective Video Door Intercom for Villas (M1907B+ D18AD)
M1907B and D18AD are very cost effective video door intercom for villas.
Apart from the common functions as other video door phone, they are with many other pratical functions, eg: DVR function, video
Recording, pictur taking, photo frame, alarm clock, etc.
The system can maximum support 4 indoor monitors and 2 outdoor panels, so they are very good for those people who need to put monitors in different floors or rooms.
Doorbell functions:
1. Camera: 1/4 CCD color
2. With night vision, water proof
3. Metal case
4.4 wires connection
5. Construction: Surface/pit/corner
6. Support lock control
7. Operating temperature: - 20 to + 60
8. Power: 11 - 13V
9. Dimension: 160× 70× 20mm
10. Viewing angle: 56°
11. Support subscriber: 1
Monitor function:
1. DVR function
2. Answer machine function
3. Auto picture taking from doorbell camera
4. Video and audio recording
5. Multimedia manager
6. Photo frame
7. Calendar
8. Alarm clock
9. Lock control
10. Capture over 64 images with internal flash
11. Monitor doorbell or CCTV cameras
12. Door-call transfers to other monitors
13. Make calls between monitors
(it needs SD card for functions from 1 to 6)
Monitor Description:
1. Panel: 7'' color digital LCD
2: TFT resolution: 800x480
3. Connection: 4 wires/100m
4. Video channels: Support 3
5. Power: Adapter 15V/1A
6. Power consumption: 0.4~8W
7. Keys type: Touch key
8. Dimension: 210x160x21mm
| Model | M1907B |
| Panel | 7'' color digital LCD |
| TFT resolution | 800x480 |
| Connection | 4 wires/100m |
| Support video channels | 3 |
| Power | Adapter 15V/1A |
| Power consumption | 0.4~8W |
| Keys type | Touch key |
| Dimension | 210x160x21mm |
|
|
|
|
| Model | D18AD |
| Camera | 1/4 CCD color |
| Night vision | Yes |
| Water proof | Yes |
| Connection | 4 wires |
| Construction | Surface |
| Support lock control | Yes |
| Operating temperature | - 20 to + 60 Celsius degree |
| Power | 11 - 13V |
| Dimension | 160×70×20mm |
| Viewing angle | 56° |
| Support subscriber | 1 |
