Product Specifications
| Prod Model: |
PRP-T70 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Type: |
Resistance Screen |
| Operating System: |
Windows |
| Memory: |
2GB |
| Network Mode: |
4G |
| Hard Disk Capacity: |
32G |
| Webcam: |
Webcam |
| Battery Capacity: |
3000mAh-4000mAh |
| Built-in Bluetooth: |
Built-in Bluetooth |
| Built-in Microphone: |
Built-in Microphone |
| Card Reader: |
Card Reader |
| Rear Camera Pixel: |
3MP-5MP |
| Front Camera Pixel: |
2MP-3MP |
| Fingerprint: |
Fingerprint |
| Screen Size: |
7'' |
| CPU Type: |
Intel Atom N2600 |
| CPU Core: |
Intel Dual Core |
Product Description
Main feature:
Intel® Cedar Trail™ Platform, N2600 1.6GHz with NM10 chipset
Seamless communication functions, 3.5G or LTE, GPS, Tracker (optional)
Slim, rugged, sealed and lightweight design
Sunlight Readable function (optional)
IP65, MIL-STD-810G and MIL-STD-461F

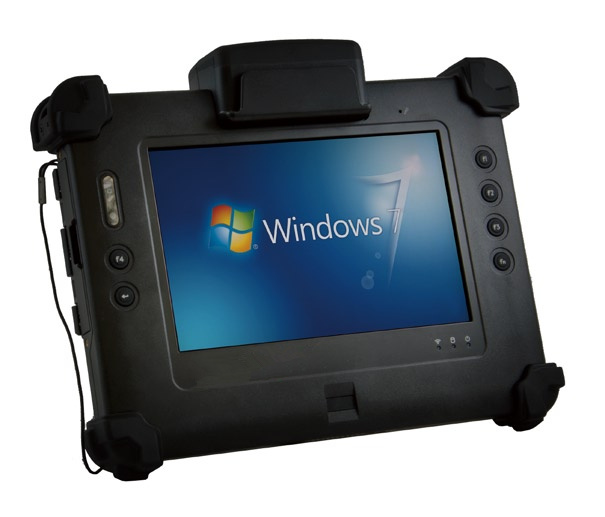

7" IP65 Rugged Tablet PC
W/Intel® Cedar TrailTM Platform
Hot swappable dual battery with up to 8 hours battery life
Dual camera and RFID module support (optional by snap-on module)
Wide coverage accessories to meet different deployment needs
The compact vehicle dock and vehicle
Introduction:
PRP-T70 is the best functionality and ergonomics for user application. Based on MIL-STD-810G military standard reliability (high temperature, low temperature, shock, vibration, drop), the Rugged Tablet PC pass from -20 to 50º C, highly transit shock and vibration, 6ft drop to plywood on concrete surface, and also IP65 fully sealed to against water & dust damage. With sunlight readable touch screen coating technology, fanless thermal conduction design, and
Expansion flexibility for barcode scanner, MSR, GPS, Tracker, RFID (optional by snap-on module) or wireless combo communication functions. Our Rugged Tablet PC can meet the most of harsh outdoor environment application and will be the best tool of your job assistance.
| CPU | Onboard Intel ATOM N2600 Dual Core 1.6GHz |
| Chipset | Intel NM10 |
| Display | 7″WSXGA LED Backlight ,400nits/500nits(Optional) |
| Resolution | 1280(W) × 800(H) |
| Touch Screen | 5-wire Resistive Touch |
| Memory | 2GB DDRIII 800 SO-DIMM |
| Storage | 32GB SATA half-slim size SSD |
| Speaker | High Quality Speaker |
| Network | 1 x 100/1000Mbps Ethernet ,WiFi IEEE 802.11a/b/g/n and Bluetooth |
| Webcam | 2 Mega-pixel camera audio input(Front bezel)
5 Mega-pixel camera with LED Flashlinght(Rear bezel) |
| Light Sensor | 1 |
| GPS | Embedded GPS/Glonass(Optional) |
| WWAN | 3.5G or LTE(Optional) |
| TPM | TPM 1.2(Optional) |
| RFID | ISO/IEC 14443A,14443B , Mifare 1K/4K,Ultralight, NFC-IP1 Protocol
(Optional by snap-on module) |
| I/O | 2 x USB2.0 |
| 1 x For microphone and headphone |
| 1 x RJ45 Ethernet |
| 1 x RS232 |
| 1 x Micro SD Slot |
| 1 x DC jack |
| In Front Control | 1 x Power button,1 x Enter key,5 x program Function button |
| LED Indicator | Power on/off,Storage,WIFI on/off |
| Protection Class | IP65 for whole device |
| Certifications | CE,FCC |
| Operating System | WES7-WS7P,Win7 Pro |
| Drop | 5-ft drop resistance(MIL-STD-810G ) |
| Mechanical Shock | Operating:40g,11ms,Terminal sawtooth
(MIL-STD-810G Method 516.6 Procedure 1 Functional Shock)
Non-operating:75g,8~13ms,Terminal sawtooth
(MIL-STD-810G Method 516.6 Procedure V,Crash Hazard Shock) |
| Power Supply | Power Adapter: AC100V~240V,50~60Hz input;[email protected],65W |
| Battery | Internal Smart Lithium Polymer battery,3000mAH,7.4V |
| Fanless | Fanless design |

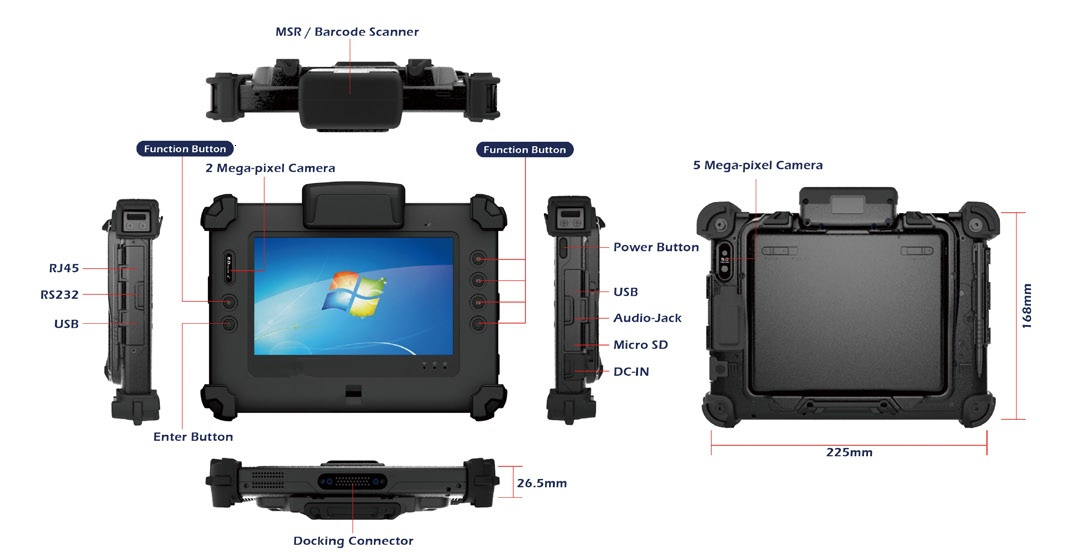

| Dimension | 225(W)x 168(H)x 26.5(D)mm |
| Installation | Tablet/hand |
| Net Weight | 0.9Kg |
| Gross Weight | Abt 2.1Kg |
| Operating temp | -20~+50ºC(MIL-STD-810G Method 501.5 and 502.5) |
| Storage temp | -30~+70ºC(MIL-STD-810G Method 501.5 and 502.5) |
| Humidity | 5~95% without condensation(MIL-STD-810G Method 507.5) |
| Ordering information | PRP-T70:Intel N2600 Dual core 1.6GHz Rugged Tablet w/7"touch panel/2GB RAM/32GB SSD/WLAN/BT/internal battery |
