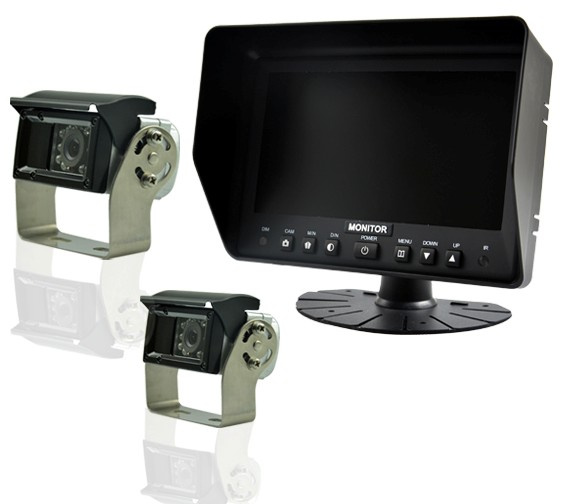

Key Feature:
- 7" TFT LCD Monitor,
- Two video input
- IR rearview camera
- When select the reverse gear, it automatically swith into video 2
- 20M extension cable
- DC 12-24V for heavy duty
Monitor Specifications:
- Screen size: 7-inch panel (diagonal length)
- Input: 2-way video input
- System: PAL and NTSC auto switching
- Resolution: 480 X R-G-B X 234
- Power supply: 12-24V DC
- Built-in speaker (optional)
- Heavy duty reversing
- OSD menu
- contrast, color, brightness adjustable
- View angle range: (left/right) 65 degrees (top) 40 degrees
(down) 15 degrees
Camera Specifications:
- Type High resolution backup camera
- Image Sensor 1/3" CCD
- TV System NTSC/PAL Optional
- Effective Pixels N: 510X492 pixels P: 500X582 pixels
- Horizontal Resolution 420 TV Line
- Lens Angle 120°
- Minimum Illumination 0Lux (LED ON)
- IR LED 16PCS for night vision distance 45ft
- Audio function
- Operating Temperature -20° ~+70° RH95% Max
- Lens f=2.8mm
- Power Supply DC12V
- N. W 350g
- Waterproof Rate IP68
- Shell Material Aluminium alloy
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China nowadays. We specializing in OEM and ODM vehicle rear view system and surveillance products
Vehicle system department products inclde the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
Guide under the concept, make a conveinent life and protect your life and property, BRVISION pepople striving for offering the products for all customers requirements and the international market. Currently, all our products are exported to North America, Europe, Middle East and Asian around area.
BRVISION have decades experiences of safey and surveillance for international market experience. We can quickly respond your feedback and are well equipped to meet your requirement.
Specialize in: . Vehicle Rearview Camera(CCD or CMOS). Vehicle TFT LCD Monitor. Wireless Transmitter and Receiver. Surveillance Camera. OEM and ODM Project
