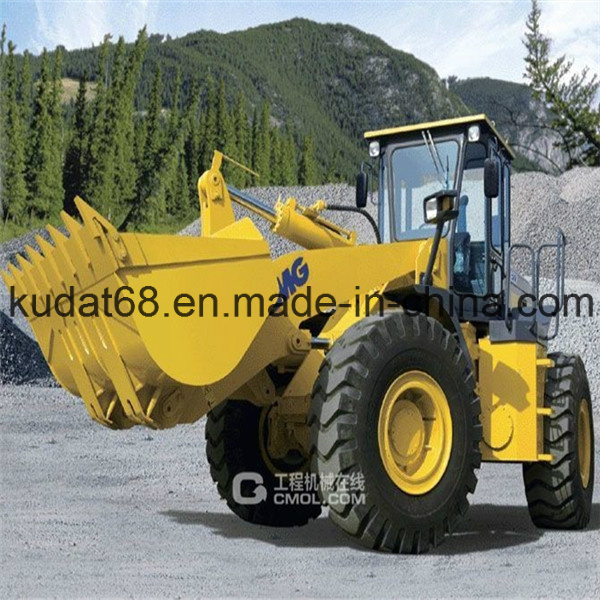

Product Specifications
Prod Model: |
LW700K |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Bucket Capacity: |
4.2m3 |
Rated Load: |
7000kg |
Operating Weight: |
23500kg |
Engine Model: |
Cummins Qsm11-C290 |
Engine Type: |
Electrical Injection, Turbo Charging, Air-Air Inte |
Rated Speed: |
2100r/Min |
Tyre Model: |
29.5-25-22pr |
The Highest Driving Speed: |
40km/H |
The Whole Machine Features (Length * Wid: |
8900*3200*3600mm |
Rated Power: |
216kw |
Walking Mode: |
Wheeled |
Condition: |
New |
Type: |
Large Loader |
Certification: |
ISO9001: 2000 |
Load And Unload Method: |
Front Discharge |
Product Description
High productivity, low fuel consumption
High-performance Cummins QSM11 (Tier3) engine
Low emission, low fuel consumption
ZF transmission with KD file function
The hydraulic system of high efficiency
Increase the bucket capacity
Long wheelbase/articulated Angle of 40 °
High reliability
Imported Cummins engine, ZF drive axle, rexroth hydraulic valve, rexroth brake components such as the key component is made form
International famous brands, and assembly under the strict quality management, ensure the reliability of the engine.
Wet multiple disk brake and hydraulic brake system
Solid frame and link mechanism
Plane type O sealing
Use waterproof plug line connection
The maintenance is easy
All kinds of parts, maintenance is convenient
Concentrated pressure
Centralized lubrication system
The operator environment
The electro-hydraulic shift transmission
New type of xugong stamping type bridge
Adjustable steering column
The side plates of the shield and rear shield are opened easily, and it is convenient to check the engine and parts, and daily maintenance.
Thoughtful design
The key articulated positions adopt two-stage dustproof, preventing grease overflow and dust entry and reducing the abrasion of the pin, prolonging the service life and decreasing the operation and maintenance cost.
The hydraulic pipeline adopts two-level sealing of 24° Cone and O ring, settling the common issue of leakage.
Durable blade and bucket teeth feature longer service life.
The easily worn pipeline is equipped with the protection bush, prolonging the service life.
ITEM |
unit |
parameter |
Work performance parameters |
|
|
Rated load |
t |
7 |
Bucket capacity |
m 3 |
4.2 |
Discharge height |
mm |
3200 |
Uninstall the distance |
mm |
1300 |
Maximum digging up the force |
KN |
200 |
Movable arm time to ascend |
S |
6 |
Three and time |
S |
<=10.8 |
Driving performance parameters |
|
|
Maximum traction |
KN |
- |
Minimum turning radius (bucket edge) |
mm |
5950 (to tire center) |
The highest driving speed |
km/h |
40 |
Quality parameters |
|
|
The weight |
t |
23.5 |
Size parameters |
|
|
The whole machine features (length * width *height) |
mm |
8900*3200*3600 |
The wheelbase |
mm |
3450 |
The engine |
|
|
Engine type |
|
Cummins QSM11-C290 |
The rated power/speed |
kW/r/min |
216/2100 |
