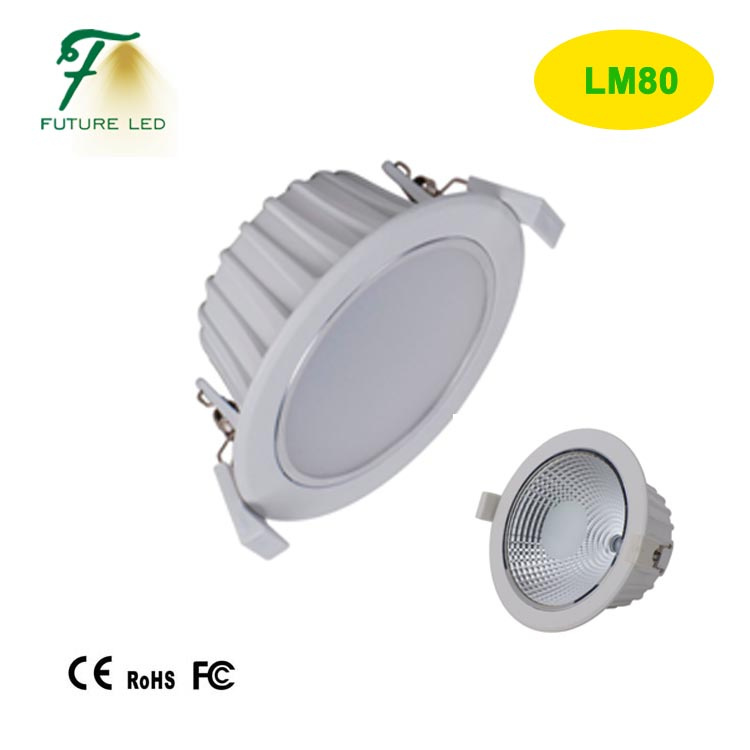

7W LED Down Lights
Price: |
US $ 4.0-4.5/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
100/Piece |
Pay Type: |
T/T,D/P,Paypal,Western Union |
die casting led lm80 smd downlight
1) High brightness, high efficiency, energy-saving, low electricity consumption.
2) Built-in reflector, high light output and uniformly light
3) Integrated heat dispersion structure, low lumens depreciation and long lifespan
4) Built-in constant current driver, universal available, Easy to install.
5) Aluminium alloy frame with high-thermal conductivity, simple and nice.
6) Unique patented heat sinking design
7) Vibration resistant Easy to transport and install.Specification:Model | Power (W) | Voltage (V) | Beam Angle (°) | Color temperature (K) | Lumens(LM) | CRI (Ra) | Dimension (mm) | Cut-out Size(mm) | Light Source | Material |
|
FT-DL1501-5 | 5W | AC85-265V | 120° | 2700-6500K | 425LM ±5% | >80Ra | φ95*53 mm | φ78 | 10PCS LM80 5630 LEDs | Die-cast |
|
|
FT-DL1501-7 | 7W | AC85-265V | 120° | 2700-6500K | 600LM ±5% | >80Ra | φ115*55 mm | φ100 | 14PCS LM80 5630 LEDs | Die-cast |
|
|
FT-DL1501-12 | 12W | AC85-265V | 120° | 2700-6500K | 1000LM ±5% | >80Ra | φ140*60 mm | φ120 | 24PCS LM80 5630 LEDs | Die-cast |
|
|
FT-DL1501-15 | 15W | AC85-265V | 120° | 2700-6500K | 1300LM ±5% | >80Ra | φ170*65 mm | φ150 | 30PCS LM80 5630 LEDs | Die-cast |
|
|
FT-DL1501-18 | 18W | AC85-265V | 120° | 2700-6500K | 1500LM ±5% | >80Ra | φ190*65 mm | φ170 | 36PCS LM80 5630 LEDs | Die-cast |
|
|
FT-DL1501-20 | 24W | AC85-265V | 120° | 2700-6500K | 1700LM ±5% | >80Ra | φ230*50 mm | φ200 | 40PCS LM80 5630 LEDs | Die-cast |
|
|
FT-DL1501-30 | 30W | AC85-265V | 120° | 2700-6500K | 2500LM ±5% | >80Ra | φ230*50 mm | φ200 | 60PCS LM80 5630 LEDs | Die-cast |
|
|
Product Specifications:
Model | Size | Hole Size | Voltage | Lumen | CRI | CCT(K) | LED | Power |
FT-DL1501-7 | 115*50MM | 100MM | AC85-265V | 600 | RA>80 | 2700~6500 | 5630 | 7W |
FT-DL1501-12 | 140*60MM | 120MM | AC85-265V | 1000 | RA>80 | 2700~6500 | 5630 | 12W |
FT-DL1501-15 | 170*65MM | 150MM | AC85-265V | 1300 | RA>80 | 2700~6500 | 5630 | 15W |
FT-DL1501-18 | 190*65MM | 170MM | AC85-265V | 1500 | RA>80 | 2700~6500 | 5630 | 18W |
FT-DL1501-20 | 230*55MM | 200MM | AC85-265V | 1700 | RA>80 | 2700~6500 | 5630 | 20W |
FT-DL1501-24 | 230*55MM | 200MM | AC85-265V | 2000 | RA>80 | 2700~6500 | 5630 | 24W |
FT-DL1501-30 | 230*55MM | 200MM | AC85-265V | 2500 | RA>80 | 2700~6500 | 5630 | 30W |
Application
1 ) Replacement to incandescent, halogen, energy saving lamp and metal halide lamp
2 ) meeting rooms/school classrooms/office buildings
3 ) hospitals/factories/, hotels
4 ) supermarkets/home lighting
5 ) other commercial and residential place
Our factory---Shenzhen Futureled lighting Co., Ltd.
Prod Model: |
FT-DL1501-7 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Lm80 LED Down Light |
LED: |
Taiwan Imported SMD 5630 |
Lifespan: |
30,000 Hours |
CRI: |
80 |
Light Source: |
LED |
Source Number: |
Double Plug |
Installation: |
Embedded |
Lamp Installation: |
Screw Holder |
Application: |
Home Furnishing |
Material: |
Die-Cast |
