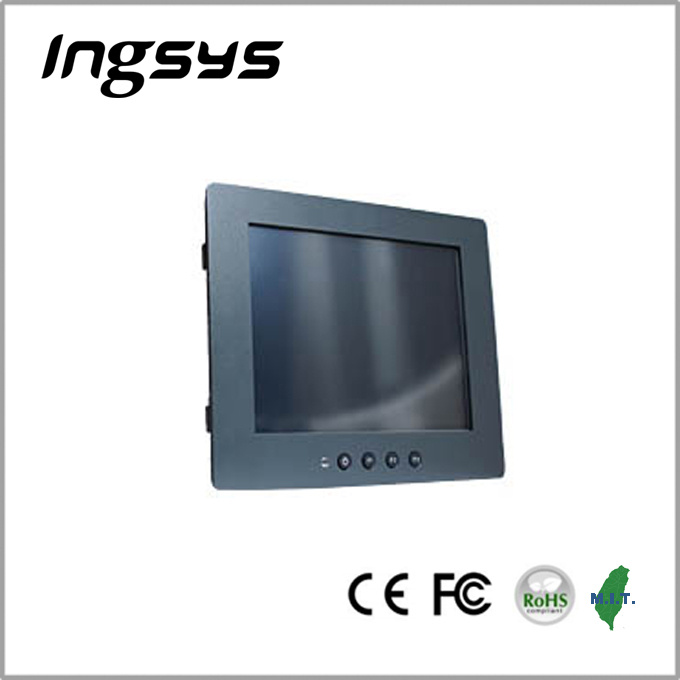

RISC Fanless Industrial Panel PC - IS-ARM-PPC 860
8" ARM Cortex-8 Ready-To-Run Slim Touch Panel PC
Cortex-A8 600MHz, 256MB SDRAM, 256MB, 256MB NAND Flash, 8" Resistive Touch, 2 LANs, USB 2.0 OTG, 2 USBs, CAN Bus, 2 Serial Ports RS232/422/485, Console Port, Mini PCIe, SIM Card, SD Card, C-FAST
Features:
- RS232 Console Port
- RS485 Data Direction Control
- High Speed CAN bus
- 1 x USB 2.0 OTG
- Open Source Linux Platform
- Bootable microSD card option (Debian GUN/Linux installed)
- Support Both CFAST & SD Card
- Support Bluetooth/ Wifi/ 3G/ 4G
- Wide Voltage (9-30V)
Specification:
-RISC based Touch Panel PC
-ARM Cortex-A8 600MHz
-256MB SDRAM, 256MB NAND Flash
-Flat Panel 8", resistive Touch
-1 x CFAST-Slot, 1 x SD card slot
-2 x Fast Ethernet LAN ports
-1 x USB 2.0 OTG
-2 x USB 2.0 Host
-1 x CAN BUS
-2 x Serial Ports RS232/422/485
-Audio-In/-Out
-1 x Console Port
-1 x MiniPCI Express-Slot for 3G-Modem
-Option: WLAN 802.11b/g/n, Bluetooth
-Very small, fanless, low Power
-Ready-to-run full-featured Debian GNU/Linux platform
-Supports Windows CE
-Dimension: 219 x 44 x 179 mm
Suitable Solutions:
Energy
Solar Power
Industrial Tasks
Retail
Transportation
Security
