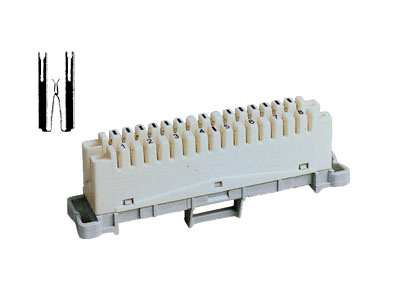

8 Pair Krone Disconnection Module
| Price: |
US $ 0.64/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
200/Piece |
| Pay Type: |
T/T,Western Union |
Product Specifications
| Prod Model: |
AQ-KM8-D |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Server |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Voice |
| Certification: |
ISO |
| Condition: |
New |
Product Description
1. The modules used in telecommunication wire terminating.
2. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires| Technical Sheet: |
| Style: | Disconnection |
| Material of Plastic Parts: | PC40%,ABS60% V0 Fire-Resistant |
| Material of Contacts Pin: | Silver-plated Bronze |
| Internal diameter of connection wire: | 0.4-0.7 mm |
| External diameter of connection wire (shield): | 0.7-1.4 mm |
| Insulation resistance | R>1x108MΩ. |
| Typical contact resistance of wire connection approx | R<0.007Ω.
|
| Voltage intensity: | 1000V/min without breakdown and arcover |
| Pulse voltage strength | 1.2/50 µs 5kV |
| Permitted surge current | 8/20 µs 5kA |
| Common capacitance between neighbouring wires: | 5pF@100HZ |
Cross-talk attenuation (150 impedance)
| * 300 Hz ... 3400 Hz 110 dB
* 3.4 kHz ... 10 kHz 102 dB
* 10 kHz ... 1.2 MHz 63 dB |
| Insertion loss | 0.05 dB |
| Operating temperature | - 25°C ... + 80°C |
| Storage temperature | - 40°C ... + 90°C |
| Mechanical characteristics | * No. of insertions of connection wires 200 x
* Force to pull off not less than 35N with single wire along vertical direction of dent |

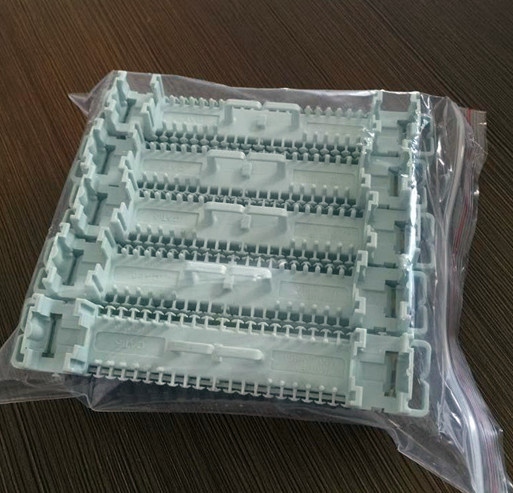

Our packing:
Ningbo Aqrich Co., Ltd. is a manufacturer, enjoys rich experience in communication and electronic field, together with good quality and excellent service we have won appreciation from global partners.
Our company supply: Subscriber Terminal Block Products (STB Distribution Box, 1 pair drop wire connection module. ), LSA-PLUS Compatible Products (10 Pair Disconnection Module, Protection Magazine, Distribution Box. ). Network Connector Products (RJ45 Cat5E Module, CAT6 Module, Faceplate, Patch Panel...), etc.
Our research department is matched with advanced computer assistant design system AutoCAD and completed inspection equipment. The equipment including: Dropping Test Table, Low & High Temperature Cabinet, Aging Testing Cabinet, Resistance Tester, Plating-thickness tester. And the tester equipment FLUKE DSP-4300 specially for networking products. etc.
We always keep tidy workshops, reasonable and compact production lines, and a group with professional trains, so as to guarantee the reliable products and efficient production. From design, raw material purchasing, craft, finished inspection to sales, our company carry out whole quality management system and insist on strict quality standard to satisfy the clients.
We have more than 20 corporation partners in Europe, America, MID-East and Asia. Our products are labeled famous brands and sold to all parts of the world. We appreciate to share success and happiness with all of you.
