Product Specifications
Prod Model: |
W859PC |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
CPU: |
Samsung S3c 6410 |
Resolution: |
800*480 |
OS: |
Windows CE 6.0 |
Port: |
RS232 Port, USB, RS485 Port |
Color: |
Black |
Description: |
Touch All in One PC |
Brightness: |
450 CD/M² |
Input Voltage: |
9V-24V |
Working Temperature: |
0~ 50 Degrees Celsius |
Contrast: |
500:1 |
Screen Type: |
Electromagnetic Screen |
Screen Size: |
7" |
Network Mode: |
WiFi |
Built-in Bluetooth: |
Built-in Bluetooth |
Card Reader: |
Card Reader |
CPU Type: |
Samsung |
Operating System: |
Win CE |
Memory: |
Ddrii Sdram 256MB |
Hard Disk Capacity: |
2GB |
CPU Core: |
Samsung S3c 6410 |
Product Description

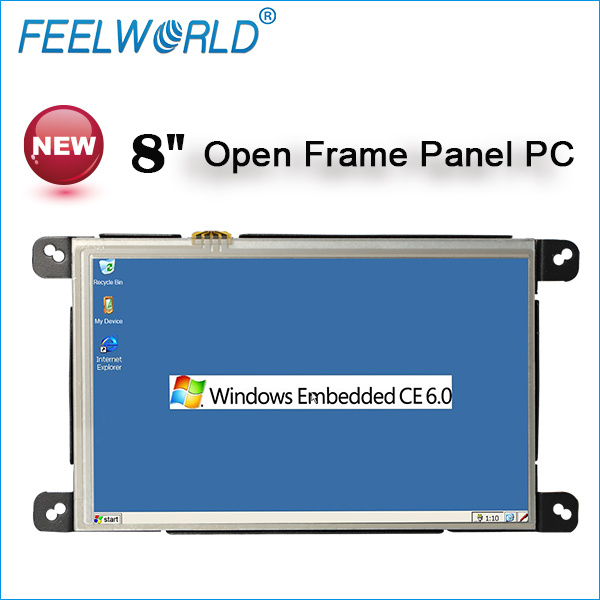

800*480 touch all in one PC RS232 industrial computer with bluetoth WiFi mini USB W859PC
Support Visual Basic, EVC, Visual Studio, net frameworking 3.5
Support keyboard, mouse and U disk
Support RS232, TTL(Optional)
Input Voltage: 9V-24V
Max Consumption: ≤ 8 W
Working Temperature: 0~ 50 degrees Celsius 0~85% RH
Storage Temperature: -10~ 60 0~ 50 degrees Celsius 0~75% RH
Unit Size: 195Lx120Wx30H(mm)
Unit Weight: 560g
Applications:
Industrial control system
Automotive media center, telematics and navigation
Ultra Mobile PC
Personal Media Player
Home automation and media center
Order management system
E-education device
Advertising digital signature
Description | 8"Industrial Embedded Touch PC |
Model No. | W859 |
CPU | Samsung s3c 6410 |
667MHZ |
Memory | DDRII SDRAM 256MB(MAX to 512MB) |
Nand Flash | 2GB(MAX to 4GB) |
LCD Screen | Resolution: 800x480 |
Dot pitch: 0.0642(W) × 0.1790(H) mm |
Brightness: 450 cd/m² |
Contrast: 500:1 |
View Angle: 70/70 (L/R) 50/70(U/D) |
Operation System | WINDOW CE 6.0 |
Features: | Mini USB Input | USB Device 2.0 input for PC |
Memory Card Insert | SD Card Insert,Max to 32G |
WIFI(optional) | Wi-Fi RT2870 Wireless Adaptor, support IEEE802.11b/g(Standard) IEEE802.11g (6M/S) |
|
|
Bluetooth(optional): | Bluetooth V2.0,2.4GHz for Data Transmission |
Li-Battery(optional): | 7.4V 2500mAH; working Hour:4 hour |
Interface: | Mini USB 2.0 ( OTG ) | 1 |
USB Host 1.1 | 2 |
Lan Port RJ45 | 1 |
RS232 | 2 |
Support Visual Basic\EVC\Visual Studio\net frameworking 3.5 |
Support keyboard, mouse and U disk |
Support RS232 ,TTL(Optional) |
Input Voltage: | 9V-24V |
Max Consumption: | ≤ 8 W |
working Temperature: | 0 ~ 50 degrees Celsius 0 ~ 85% RH |
storage Temperature: | -10 ~ 60 degrees Celsius 0 ~ 75% RH |
Unit Size: | 195Lx120Wx30H ( mm ) |
Unit Weight: | 560g |
Applications: |
Industrial control system |
Automotive media center, telematics and navigation |
Ultra mobile PC |
Personal Media Player |
Home automation and media center |
Order management system |
E-education device |
Advertising digital signature |
