800kv Hvdc Lattice Overhead Power Transmission Steel Structure Tower
Price: |
US $ 1100/Ton |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T |
Product Specifications
Prod Model: |
MGP-800DCT |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
We Can Design By Pls & Tower Software: |
According to Client Design or Requirement |
Usage: |
According to Client's Technical Specification |
Conductor Circuit: |
Single Circuit |
Certification: |
ISO |
Materials: |
Steel |
Standard: |
Nonstandard |
Style: |
Independence Tower |
Structure: |
According to Client Desing or Requirement |
Product Description

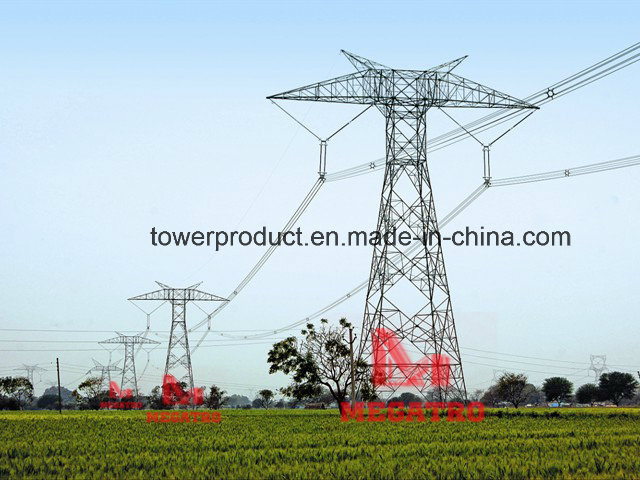

800KV HVDC lattice overhead power transmission steel structure towerIn power transmission line project, there are two type tower according to power current transmission type, AC and DC type. AC meant alternative current and DC direct current. In our china, DC power transmission used in 800KV line project and being first HVDC line from 1990s. This photo refer to 800KV HVDC lattice overhead power transmission steel structure tower. There are only two phase conductor, which is six split ACSR and set OPGW on tower peak. The tower height from 50m to 80m, even higher or modify according to project requirements. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & angular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software. The structure shall be designed according to load combinations given as per IEC 61936-1 and as illustrated below:
Normal loads
1 Dead weight load
2 Tension load
3 Erection load
4 wind load
Exceptional loads
1 Switching forces
2 short-circuit forces
3 Loss of conductor tension
4 Earthquake forces
MEGATRO is fully equipped and qualified to carry out Design Engineering services which includes:√ Overhead Transmission line steel tower & Telecom steel tower Basic Design and Analysis√ Shop Erection Drawings√ As-Built Drawings MEGATRO performs in-house design activities specializing in electrical overhead transmission &telecom tower steel works, which include wind and earthquake loading, static analysis, stress analysis by finite element methods and fatigue.Our Engineering Department is boasting of highly qualified engineering who are conversant with international codes and standards. The work is carried out with extensive use of CAE/CAD via a large of computer network. The computer hardware & drafting software are liked to the CNC workshop equipment for downloading of information thereby eliminating error and saving valuable production time. Moreover, MEGATRO is one of the few manufactures who assemble a face of 800KV HVDC lattice overhead power transmission steel structure tower. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. After fabrication all 800KV HVDC lattice overhead power transmission steel structure towers are delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. MEGATRO' 800KV HVDC lattice overhead power transmission steel structure tower systems can accommodate a variety of cross-arm. MEGATRO also offers a wide variety of accessories and mounts.
Other information:
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Package: Both parties discuss before delivery
Port of Loading: Qingdao Port
Lead Time: One month or based on the customer's needs
Minimum order: 1 set
Fabrication standard: Chinese Standard or other standard which client accepted
Steel grades
Tower legs: Chinese steel Q420, which same to ASTM A572 GR60
Other webs, bracing and not stress plate and angle steel: Chinese Q345B or Q235B, which same to ASTM A572 GR50 or ASTM A36
Plates: Chinese steel Q345B, which same to ASTM A572 GR50
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394
A) Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
B) Hot dip galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performance in accordance with AWS D1.1 or CWB standard
If any special requirement, we can design and discuss with client. APPLICABLE STANDARD AND CODESAll towers manufactured and design shall be generally in accordance with latest revision of the following standards except where specifically directed otherwise. General IEC 60050 (151) International Electro-technical Vocabulary Part 51 Electrical and Magnetic DevicesIEC 60050 (601) Chapter 601: Generation, transmission and distribution of electricity-General IEC 60050 (601) Chapter 601: Generation, transmission and distribution of electricity-OperationIEC 60059 IEC standard current ratings Chinese StandardNo | Code | DESCRIPTION |
1 | GB/T2694-2003 | Power Transmission line Steel tower - Technical requirements for manufacturing |
2 | JGJ81-2002 | Technical specification for welding for steel structure of building |
3 | GB9787-88 | Measuring and allowable tolerance for hot-rolled equal angle |
4 | GB709-88 | Measuring and allowable tolerance for hot-rolled plate and strip |
5 | GB/T699-1999 | Quality Carbon Structural Steel |
6 | GB/T1591-1994 | Low alloy high strength structural Steel |
7 | GB700-88 | Carbon Structural Steel |
8 | GB222-84 | Method of sampling steel for determination of chemical composition and permissible variations |
9 | GB/T228-2002 | Method for Tensile testing of metals |
10 | GB/T232-1999 | Method for Bending test of metals |
11 | GB/T5117-1995 | Carbon Welding Rod |
12 | GB/T5118-1995 | Low Alloy Welding Rod |
13 | GB/T8110-1995 | Welding wires for gas shielding arc welding of carbon and low alloy steels |
14 | GB/T10045-2001 | Carbon steel flux cored electrodes for arc welding |
15 | JB/T7949-1999 | Weld outer dimensions for steel construction |
16 | GB50205-2001 | Test Standard for Acceptance of Steel Structure |
17 | GB/T470-1997 | Zinc Ingot |
18 | GB3098.1-2000 | Mechanical properties of fasteners-Part 1:Bolts, screws and studs |
19 | GB3098.2-2000 | Mechanical properties of fasteners-Part2: Nuts, and thread |
20 | GB3098.3-2000 | Mechanical properties of fasteners-Part3: Fastening screw |
21 | GB/T5780-2000 | Helical Bolts Grade C |
22 | GB/T41-2000 | Helical Nuts Grade C |
23 | GB/T90-2002 | Flat Washer Grade C |
24 | GB/T13912-2002 | Metal Coating, Technical Requirement and Test Method for Hot-dip galvanized Metal Parts |
American Standards:Standard | Description |
ASTM A6/A6M | Standard specification for general requirements for rolled structural steel bars, plates, and sheet piling. |
ASTM - 6 | - General Requirements for delivery of Rolled Steel Plates, Shapes, sheet Piling Bars for structural used |
ASTM A36/A36-M-97a | Standard specification for Carbon structural steel |
ASTM A123 / A123M-02 | Standard specification for Zinc (Hot-Dip Galvanized) Coatings on iron and steel products |
ASTM A143 / A143M-03 | Standard Practise for Safeguarding Against Embitterment of Hot-Dip Galvanized Structural Steel Products and Procedure for Detecting Embitterment |
ASTM A153/ A153M-05 | Standard specification for zinc coating (Hot-Dip) on iron and steel hardware |
ASTM A - 194 | - Grade for bolt |
ASTM A239 | Standard practice for locating the thinnest spot in a zinc (Galvanized) Coating on Iron or Steel Articles |
ASTM A242 | Standard specification for High-Strength Low-Alloy Structural steel |
ASTM A307 | Standard Specification for Carbon Steel Bolts and Studs, 60000 PSI Tensile strength |
ASTM A370-06 | Standard Test Methods and Definitions for Mechanical Testing of Steel Products |
ASTM A325 | Standard Specification for structural bolts, steel, Heat treated 120/105 ksi minimum tensile strength |
ASTM A-325 or A-354 | - Galvanized hexagonal head of connection bolt |
ASTM A325-97 | Standard Specification for High-strength Bolts for structural steel Joints |
ASTM A384 / A384M-02 | Standard Practise for Safeguarding Against Warpage and Distortion During Hot-Dip Galvanizing of Steel Assemblies. |
ASTM A394-93 | Standard Specification for steel Transmission Tower, Bolts, Zinc Coated and Bare |
ASTMA - 563 | - Class and size of nuts |
ASTMA - 572 | - Chemical composition of steel |
ASTM A572/A572-97c | Standard specification for High-Strength Low-Alloy Columbium-Vanadium Structural steel |
ASTMA - 615 | - The anchor bolt material |
ASTM A673 / A673M-07 | Standard Specification for Sampling Procedure for Impact Testing of Structural Steel |
ASTM B201 | Standard practice for testing Chromatic coating on Zinc and Cadmium surfaces |
ASTM E94-93 | Standard Guide for Radiographic Testing |
ASTM E 709-95 | Standard Guide for Magnetic Particle Examination |
ASCE Manual 72 | - Load testing a simple structure |
ASCE 10-97 | Standard Design of latticed steel transmission structures |
AWS D1.1 | American Welding Society D1,1/D1,1M structural Welding code- Steel |
ANSI B-182-2 | Bolts, nuts and washers dimensions |
DIN VDE 0101 - Isokeraunic LevelVDE 0201 - Climatic and environmental conditionsCVDE 0210 - Minimum safety factors under simultaneous working loadsISO R898 Mechanical Properties of Fasteners BS EN ISO 1461:1991 - High dip galvanized coatings on fabricated iron and steel articles. Specifications and standardsA) BS 5950: Welding Terms And SymbolsB) BS 729: Hot - Dip Galvanised Coating On Iron And Steel ArticlesC) BS 2901: Filler Rods And Wires For Gas Shielded Arc Welding: Part 1 Ferritic SteelsD) BS 3692: ISO Metric Precision Hexagon Bolts, Screws And NutsE) BS 4360: Weldable Structural SteelF ) BS 5135: Metal - Arc Welding Of Carbon And Carbon Manganese SteelG) BS 5950: Part 1: Code Of Practice For Loading Latticed Tower & MastsPart 2: Guide To The Background And Use Of Part 1"Code OF Practice For Loading"Part 3: Strength Assessment of MembersH) DD 133 (1986): Code Of Practice For Loading Latticed Tower & MastsI) BS 4592 (1987): Part 2: Specification For Expanded Metal Grating PanelsJ) BS 4592 (1977): Code Of Practice For Protective Coating Of Iron And Steel Structure Against CorrosionK) BS 4190: Bracing & Flanged BoltsL) BS 4190: Rolled Steel sections, Flats & Plates If any special requirement, we can design and discuss with client.
Qingdao Megatro Mechanical and Electrical Equipment Co., Ltd.Is a Structure Steel, Power Transmission line steel tower, Telecom tower, related power materials, wind turbine, wind tower, power flange, forged products, casting, power fitting, conductor fabrication& export& import company.MEGATRO headquarter are located in Qingdao city, Shandong province, and plants located in Qingdao city of Shandong Province.
MEGATRO fabrication plants are equipped with state of the art equipments and machineries manned by skilled and talented staff.MEGATRO adheres to the principles of "We provide goods every time, and we offer you good all the time!", "Good Quality Management" and committed to "Heath, Safety and Environment" standard.These values had made our plants certified ISO 9001:2008;ISO 14001:2004 and OHSAS18000:2007 company.
To meet our clients requirements, we also design every type of steel towers & poles as per American Society of Mechanical Engineers(ASME), American National Standards Institute(ANSI) and clients standard.Major design engineers come from America, India, and Egypt in meeting the quality requirements for standard of power transmission steel tower, telecom tower and standard fro steel building structures.
MEGATRO capabilities combined with the diversified and rich experience of our design engineers distinguish it as a professional manufacturer & trader in the power transmission line steel tower, telecom tower, wind turbine, wind tower, power flange, and structural steel.We are delighted to be a one-stop steel structure solutions with power material and related products provider and aspire to build on these relationships with our clients promising them a future as solid as steel.
Licensed Products:
Design, fabrication, supply and Erection of Steel structures, Telecom Towers, Overhead Electrical Transmission Lind Towers, Power Substation, Power Materials, Galvanizing;Provide Wind Power Flange, distribution pole, high mast pole, power fitting &hardware, steel pipe, forged product, Wind Turbine, Lam post, forged products, power fittging, conductor, and related products as per client requirements;Import and Export Steel ore
