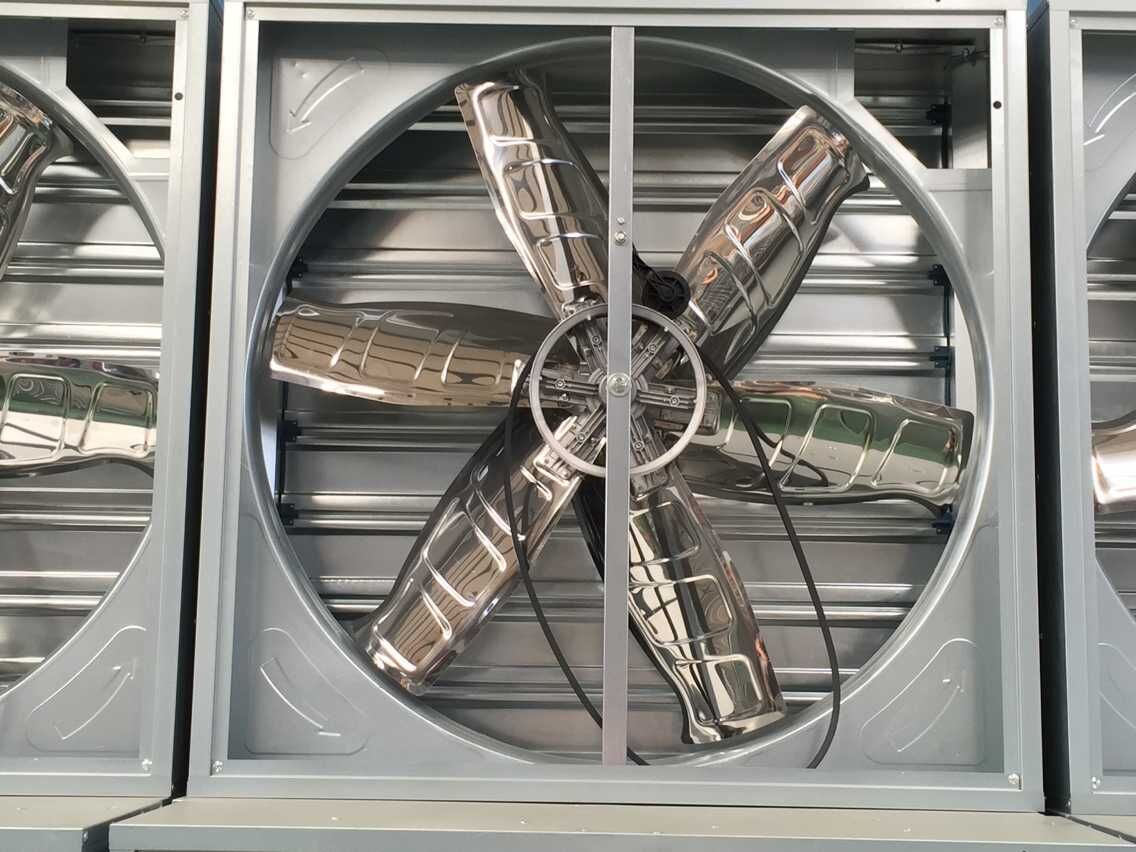

1. Blades are made of high quality stainless steel by CNC TURRET PUNCH PRESS, attractive and durable, special design of blade shae ensurng big air flow, no distortion, no broken, passing the homeosasis test to ensure the air volume keeing the same as the very beginning during the operational life span.
2. Siemens motor or Chinese famous motor can be chose, high efficient and energy-saving with CCC certificate. Protection class: IP55, Insulation class: F. The voltage, power, frequency and phase can be customized.
3. The bearing adopts special waterproof design of double-row bearing, high intension, low noise, maintenance-free and long service life.
4. Belt Pulley: Made of aluminum-magnesium alloy by injection moulded, reducing the weight of blade and impeller, high corrosion resistance. Blast-sanding treatment for attractive appearance, eliminating internal stress to improve its own rigidity and stability, high strength.
5. Swung drop hammer: Made of high quality nylon, stable performance, guaranteeing the shutters open and close flexibly.
6. Protective net: Made of hard-drawn wire, designed as door-type, which is convenient for maintaining.
7. Belt impeller: Made of aluminum magnesium alloy by injection moulded, adopting more stiffening rib, processed by sandblasting, eliminating the internal stress, high intensity, low noise, long service life.
8. Belt Pulley: Made of aluminum-magnesium alloy by injection moulded, reducing the weight of blade and impeller, high corrosion resistance. Blast-sanding treatment for attractive appearance, eliminating internal stress to improve its own rigidity and stability, high strength.
9. Belt tensioner: Made of high quality nylon or aluminum-magnesium alloy, avoiding belt loosening or dropping off, extending service life and avoiding distortion, waterproof
10. Bearing: Imported double-row bearing, super mute, high intension and durable
11. Belt: China famous brand belt, Mistubishi belt
12. Strict test criterion: Consist of airflow test, nose test, libration test, drive concentric test, blade RPM test, whole machine efficiency test, dynamic balance test, the thickness of the galvanized sheet test, the size of the spare parts test, etc.
13. Guarantee period: One year. Easy broken parts are offered free of charge during this period
Company Information:
Qingzhou Jinlong Temperature-controlled Equipment Co., Ltd is a professional manufacturer of exhaust fan, evaporative cooling pad, light trap, air inlet and heater. We use good materials to produce high quality products. Our company have passed ISO9001 Quality certificate. And our products passed CE certificate.
Welcome to contact us for cooperation.
Model specifications | Diameter blades - mm | Blades rotational speed - rpm | Motor rotational speed - rpm | Air flow m3/h | Total pressure -Pa | Noise decibels | Import power - W | Rated voltage - V | High mm | Width mm | Thick mm |
JLF(c)-620 | 500 | 1400 | 1400 | 5700 | 55 | ≤ 70 | 250 | 380 | 620 | 620 | 400 |
JLF(c)-780 | 710 | 960 | 1400 | 18000 | 75 | ≤ 70 | 370 | 380 | 780 | 780 | 400 |
JLF(c)-800 | 720 | 660 | 1400 | 20000 | 60 | ≤ 60 | 550 | 380 | 800 | 800 | 400 |
JLF(c)-900 | 750 | 630 | 1400 | 22000 | 65 | ≤ 65 | 370 | 380 | 900 | 900 | 400 |
JLF(c)-1000 | 900 | 610 | 1400 | 30000 | 70 | ≤ 70 | 750 | 380 | 1000 | 1000 | 400 |
JLF(c)-1100 | 1000 | 600 | 1400 | 32500 | 70 | ≤ 70 | 750 | 380 | 1100 | 1100 | 400 |
JLF(c)-1220 | 1100 | 460 | 1400 | 38000 | 73 | ≤ 70 | 750 | 380 | 1220 | 1220 | 400 |
JLF(c)-1380 | 1250 | 439 | 1400 | 40000 | 56 | ≤ 70 | 1100 | 380 | 1380 | 1380 | 400 |
JLF(c)-1530 | 1400 | 325 | 1400 | 55800 | 60 | ≤ 70 | 1500 | 380 | 1530 | 1530 | 400 |
Qingzhou JINLONG Temperature-controlled Equipment Co., Ltd is a professional livestock machinery manufacturer in Shandong province, China, which is a high technology enterprise composed with design, production, sale and after-sales service.
Our company has advanced machining equipment and strong technical force. We introduced advanced quality control equipment, static and dynamic balancing machine and hydraulic repressive machinery. The main products include ventilation fans, air circulation fan, roof fans, wall fans, cooling system, evaporative cooling pad, air cooler, automatic feeding and drinking system, automatic oil-burning and coal-burning hot blast stove, totally more than 30 kinds, which have absorbed the quintessences of similar products home and abroad, made of high quality materials by advanced technology.
The products are all energy saving, smooth operation, low noise, stable performance, solid and durable with elegant appearance, and widely used in the fields of agriculture, flowers and plants, livestock, textile, mining, chemical, pharmaceutical and timber. Our company always insists on the tenet of "survive with quality, develop with credibility". We provide first-rate products and service for customers with the enterprise spirit as "keep faithfulness, and race to the top ". Our products have been exported to Southeast Asia, Middle East, West Europe, Canada and Australia and get favorable comments.
