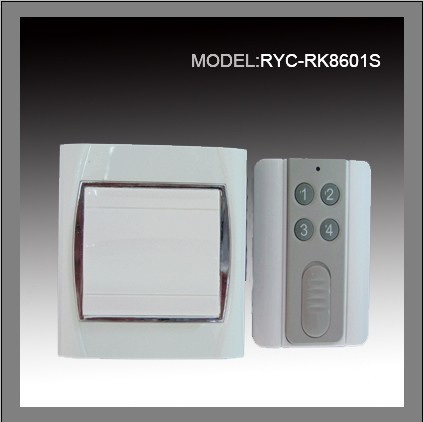

86 Single-Channel Remote Control Switch (Learning) (RYC-RK8601S)

86 single-channel remote control switch RYC-RK8601S (Learning)

First, the product features
1.86 GB type, direct replacement for the original wall ordinary mechanical switches. Look beautiful and luxurious.
2, a single FireWire control, do not change any lines, clothes and very convenient and easy modification.
3. Can also be remote manual control, independently of each other, to retain the traditional switch habits.
4. Using intelligent MCU system, users are more convenient optional remote control, can be equipped with the company any remote control.
5. With over-current protection, and has a very good anti-jamming performance.
7. Housing: PC fire-retardant plastic, polished surface, eyebrow shiny chrome metal frame, large toggle touch of a button.
8. Power-up time is short, about 1 second or so energy-saving lamps, starter-type fluorescent lamp about 2-3 seconds;
9. Multi-way power supply technology, standby power consumption is smaller, and misplaced priorities supply. Lighting all the way to avoid the damage caused by the use of the product can not happen.
10. Down with self-recovery capabilities. Recovery time <2 seconds;
11. Remote control switch and the remote control can be one to one, but also many, learning the code, the operation is very simple and convenient, supporting our twelve-button remote control, with total open total off function can be centralized remote control can also be decentralized control;

Second, the configuration of the remote control
1 clear operation (ie, remote switch initialization): In the lighting for the destruction of the state, long press any button remote control switch more than 10 seconds, the light from the original off to bright light to destroy and then by hand to release (clear zero operation is completed, all the matching remote control is invalid).
2 The first way switch remote configuration: Click on the first channel remote control switch hand control button until the load lamps lit to let go. Then press the hand control button for 3 seconds and hold until the load off the light from the light, then release, then the remote switch into the learning state, press any one of the remote control buttons, emission control signal; Learning After the success of the load from light to light will extinguish.
3 specific operational procedures: Press start button ---- lights controlled release ---- ---- ---- lights off and then press and hold for 3 seconds ---- ---- Lights - - Press the remote control key and then release ---- ---- over 2 seconds ---- lights off ---- study completed; If not remote, repeat the above operation;
4 according to the above steps, configure the brightest remote key;
5 was equipped with remote control: Repeat the above steps can learn up to 12 remote control. Over 12, the first one is deleted.

Three methods of operation
1 Manual control: Tap a key on the switch, then the corresponding lights, press the lamp goes out.
(2) Remote Control: Press the buttons above to learn good remote control, the corresponding lights, press again lights out.
3 with total open total off function (only twelve-button remote control): When studying the 12-key remote control, the default for the full 11 keys, 12 keys are fully closed;

Fourth, technical indicators
1, Rated voltage: 100-250VAC; 50 \ 60Hz.
2, rated load: Resistive: 600W; Sensibility: 200W;
3, remote control distance: More than 50 meters high power remote control, low-power remote control is not less than 20 meters.
4 Receiver sensitivity: -95dB.
5, the receiving frequency: 315MHz, 433MHz.
6, Standby current: 50uA.
7, standby power consumption: 0.016W.
8, for a variety of lamps, starter-type fluorescent lamp has a small portion of the use of fake brand starter Philip Please note that if does not work, replace the other starter can be.
