Product Specifications
| Prod Model: |
KY-PC-F2-LED |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Detailed Product Description

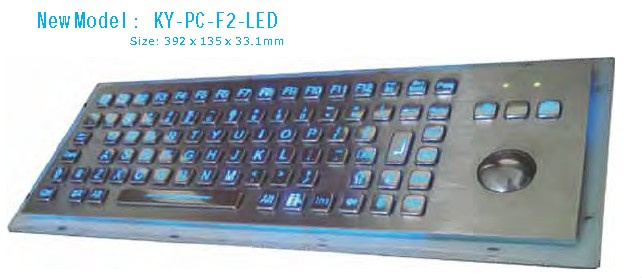

89 keys illuminated LED backlight metal keyboard with integrated 38mm stainless steel laser trackball (rear mount solution)
89 keys illuminated LED backlight metal keyboard with integrated 38mm stainless steel laser trackball (rear mount solution)
Material:
@ Front Panel: 304 stainless steel
@ Key: 304 stainless steel
@ Trackball: 304 stainless steel
Electrical Performance:
@ voltage: 5.0VDC ± 5%
@ electric current: 10mA
@ EMC Emission: EN55022(B)
Mechanical Performance:
@ Operating Temperature: -10° C to +60° C
@ Storage Temperature: -30° C to +80° C
@ relative humidity: 10%~95%
@ Atmospheric pressure: 50 ~110kPa
@ Life Expedance: >4 million times per key
@ Stroke Travel: 1.5mm
@ Actuation Force: 80g nominal
@ Lettering: Rasied key with high density printing ink
@ Weight: 2.2kg
Reliability:
@ MTBF >20000h
@ MTTR < 30min
Founded in 1995, Shenzhen Keyu Co., Ltd. is the professional manufacturer of metal keyboard/keypad, and PCI2.0 EPP(Encrypted PINPad).
During 16 years of development, KEYU always focus on the finance, elctronics and industrial fields. We dedicated to researching, manufacturing, maketing and service the experienced devices for vertical markets such as self-service terminals, rugged date-entry, encrypted transactions, amusement&gaming, electronic engineering and combat forces as well as many public interactive applications. So far, KEYU offers a complete range of self-service terminal and rugged date-entry devices covering various market segments including:
Metal keyboard: Interactive kiosk, meeting room, industrial controller, public service
PCI EPP: ATM, POS terminal, kiosk
Metal keypad: Vending machine, public phone, medical equipment, vehicle&vessel dashboard, elevator, gas station, karaOK(KTV)
Metal trackball: Kiosk, industrial controller, medicare equipment, military and vessel
KEYU has a 6, 500 squaremeters whole-owned factory with CNC and other metal processing machine on hand. KEYU is also know to keep the largest profilio of over 1, 000 sets of mould for kiosk, metal keyboards and metal EPP. We have a very strong developing and manufactoring ability in fine ironware processing.
KEYU also maintains an experienced software team to service and support our customers timely. We provide the tailored turnkey solution for our customers from conception to installation to the protect their investments in IT.
The markets have witnessed that KEYU has produced the most stable and qualified products in this industry for over 16 years.
