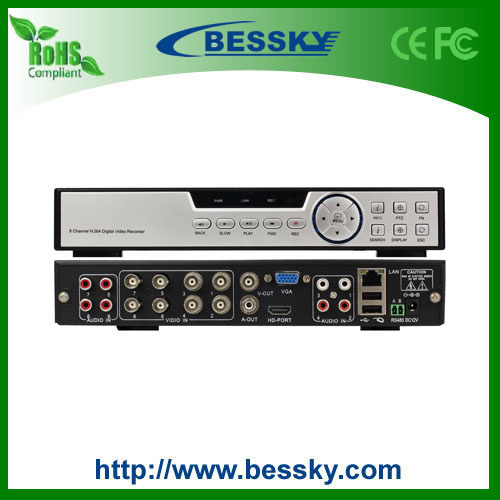

8CH d1 CCTV Standalone Network DVR Security System (BE-9608H)
Main features:
Use the standard H.264 video compression format
Support 8CH D1 real time/8CH 960H realtime recording resolution
Dual-stream design, network remote view effects and local recording effects parameters can be set separately, independently of each other
Multiple operation simultaneously:Preview, recording, playback, backup, network live, mobilephone view
Multiple record mode:Auto, timer, motion recording mode
Support backup with USB Flash Disk, Movable hard disk, DVD writer, Network
Support drag the progress bar can be targeted playback time directly
Support Network function:One IE browser centralized monitoring and CMS Software for multiple DVR
Supports Multiple backup mode:USB flash drive, USB hard disk and network backup
Support one SATA HDD, max capacity is 3TB
Support 3G & WiFi extension
Support multi-browser
Support mobile phone monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
Powerful net service(support DHCP, PPPOE, FTP, DNS, DDNS, ARSP(www.Dvrcenter.COM), NTP, UPNP, EMAIL, IP authority, IP search, alarm center, etc), complete enclosure(WEB, CMS, SDK), to easily achieve interconnection
|
|
Model |
BE-9608H |
|
System |
Main processor |
HIS chipset Hi3520D |
|
Display |
Display screen |
1/4 /9screen |
|
Video |
Video standard |
PAL(625 lines,50HZ);NTSC(525lines,60HZ) |
|
Monitor quality |
Monitor:D1;VGA:1080P ;HDMI:1080P |
|
Playback quality |
Max support 1080P |
|
Encode capability |
8CH D1 real time/8CH 960H |
|
Decode capability |
2CH 960H / 4CH D1/8Half D1 |
|
Motion detection |
Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) |
|
Audio |
Audio compression |
G.711A |
Record and playback
|
Record mode |
Manual\alarm\motion detection\timing |
|
Local playback |
Support 2CH 960H / 4CH D1/8Half D1 playback synchronously |
|
Video search |
Time\date\event\channel search |
|
Storage and back up |
Space occupation |
Video:CIF 4~5G/day*channel, D1 16~20G/day*channel;
audio:691.2M/day*channel |
|
Video storage |
Local HDD \Network |
|
Back up mode |
Network backup\USB portable HDD\USB DVD-RW |
|
Interface |
Video input |
8CH BNC |
|
Video output |
1CH BNC,1CH VGA,1CH HDMI |
|
Audio input |
8CH RCA |
|
Audio output |
1CH RCA |
|
Network port |
RJ45 10M/100M self-adaptive Ethernet port |
|
PTZ control |
1 RS485;support multi kinds of PTZ Protocol |
|
USB port |
2*USB2.0 |
|
HDD port |
1 SATA(max support 3TB) |
|
Wireless port |
3G\WIFI(extension via USB port) |
|
CMS |
CMS software |
Support (up to 255 DVR simultaneously) |
|
other |
Tour |
Support |
|
Remote controller |
Support |
|
Working temperature |
-20-60 |
|
Working humidity |
10%-90% |
|
Power |
12V/3A |
|
Dimension |
260(W) x 45(H) x 234(D) |
