8CH H. 264 DVR IR Camera CCTV System DVR System
Shenzhen Ele technolgoy is Chinese factory of CCTV camera and camera board over 5 years. We provide IR Waterproof Camera, Dome Camera, CCD camera, board camera, security camera, Box CCTV Camera, High speed dome Camera, DVR, ahd camera , dvr system ,ip nvr system and so on
Our Service:
(1) Prompt reply: Your inquiry related to our products or price will be replied within 24 hours.
(2) OEM Service: We offer customized options for our products, and customer's designed LOGO printing is available.
(3) Quality Control: All products we sold are 100% strictly selected and tested by our QC department.
(4) Warranty: We offer 2 years product warranty.
Specification:
| Model | AH3208 |
| Systems | Main processor | Technical grade embedded microprocessor |
| Operating system | Embedded LINUX operating system |
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
| Display screen | 1/4/8 screen |
| Image encode | H.264(Main Profile); |
| Recording | 8CH AHD720P real time Recording |
| Playback | 4CH AHD 720P real time Playback |
Multi-mode video input
| Local analog input:4*AHD 720P
Local analog + network digital input:
|
| Motion detection | Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) |
| Audio | Audio compression | G711A |
| Bidirectional talk | support |
Record and playback
| Record mode | manual>alarm>motion detection>timing |
| Local playback | 1-8ch playback synchronously (take local analog input for example, other is depended on the selected channel mode) |
| Video search | Time, date, event, channel search |
| Video storage | Local HDD, Network |
| Back up mode | Network backup, USB portable HDD, USB imprint, SATA imprint |
| Interface | Video input | 8ch BNC(1.0Vp-p,75) |
| Video output | 1ch BNC(1.0Vp-p,75),1ch VGA,1ch HDMI 1080P |
| Loop output | optional |
| Alarm input | N/A |
| Alarm output | N/A |
| Network port | RJ45 10M/100M self-adaptive Ethernet port |
| PTZ control | 1 RS485, 1 RS232;support multi kinds of PTZ protocol |
| USB port | 2*USB2.0 |
| HDD port | 2 SATA ports(Each support 4,000GB) |
| Wireless port | 3G, WIFI( extension via USB port) |
| Other | Power | 12V/4A |
| Consumption | <15W(not including HDD) |
| Operation Environment | -30C~+55C/ 10%-90%(H)/ 86kpa-106kpa(A) |

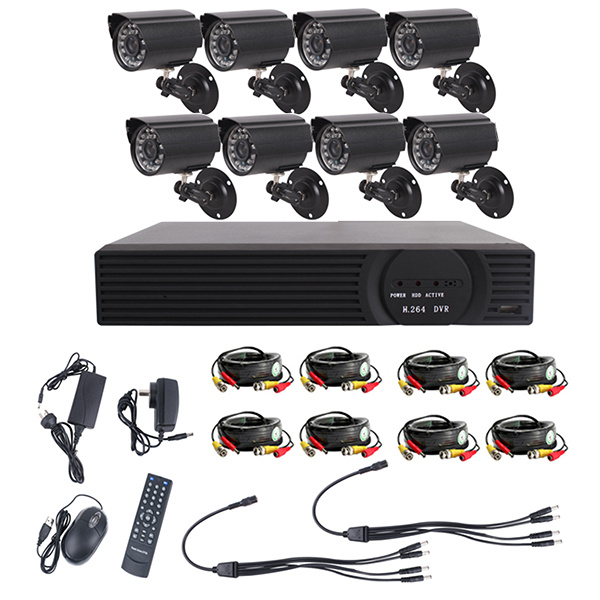

AHD DVR Package includes:1 X 8CH full AHD 720P H.264 Network hybrid DVR NVR recorder1 X Mouse for CCTV DVR1 X12V/4A Power Adapter for CCTV DVR1 X remote controller for CCTV DVR1 X Software CD disk 8XAHD 720P (1.0 Mega Pixel) waterproof Camera| Model | WPC014A10 |
| Horizontal Resolution | AHD (1.0 Mega Pixel) |
| Pick-up Device | 720P |
| Scanning Area | 4.9mm(H)×3.7mm(V) |
| Focal Length | 3.6mm Lens (can choose 3.6mm 6mm 8mm lens) |
| Picture Element | PAL:752(H)x582(V); NTSC:768(H)x494(V) |
| TV System | PAL/NTSC |
| Minimum Illumination | IR ON 0 lux |
| S/N Ratio | More than 48dB |
| Auto Electronic Shutter | PAL:1/50s-1/100.000s |
| Gamma Characteristic | 0.45 |
| Auto Gain Control | Auto |
| Auto White Balance | Auto |
| Back Light Compensation | Auto |
| Synchronous System | Internal Synchronization |
| Video Output | 1.0vp-p.75Ω,BNG Connector |
| IR Distance | 24 pcs ¢5mm IR-LED,15Meters |
| Water resistance: | Ip66 |
| Power Supply | DC 12V ±10% |
| Current Consumption | 90mA(IR ON MAX 470mA) |
| Temperatur | -30 ~ +50 C |
| Material | Aluminum alloy |
Package Include:1 X 8CH full AHD 720P H.264 Network hybrid DVR NVR recorder1 X Mouse for CCTV DVR1 X12V/4A Power Adapter for CCTV DVR1 X remote controller for CCTV DVR1 X Software CD disk8XAHD 720P (1.0Mega Pixel) waterproof Camera
