Product Specifications
| Prod Model: |
BB-C0801A-DVR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
High Definition |
Product Description
Place of Origin: Guangdong, China (Mainland)
Brand Name: BB
Model Number: BB-C0801A-DVR
Channel No.: 8CH
Compression: H. 264
Video Input: 8CH BNC
Video Output: 1CH BNC/VGA
Audio Input: 2CH ( be able to enlarge to 4ch)
Audio Output: 1CH
RS485: Support
HDD Interface: 1PS SATA2.0
Video Systerm: PAL &NTSC Adjustable
Alarm: Optional
|
Video Input |
8CH BNC |
|
Video Output |
1CH BNC,1CH VGA , HDMI Optional(Add 5usd) |
|
Audio Input |
2 CH RCA |
|
Audio Output |
1CH BNC |
|
Alarm Input |
4CH (Optional) |
|
Alarm Output |
1CH (Optional) |
|
PTZ control |
RS485 |
|
HDD Interface |
1PS SATA HDD Interface |
1, support P2P, easily penetrate a variety of network and enjoy penetrate clouds, cloud push, cloud cover hand, cloud value-added cloud services, support plug and play, no need port settings (UPNP)
2, support dual-stream, the main stream to ensure image quality, sub-stream to ensure high-speed Internet browsing
3, support for all major mobile surveillance and PTZ protocols
4, A variety of VGA resolution, digital zoom and multi-lingual
5, support USB and network backup, USB mouse and remote control operation
6, BNC and VGA output , support HDMI output
7, support manual / timer / alarm / motion detection recording mode four kinds
8, supports ONE PS SATA HDD Interface
9, all products have Lightning protection & anti-static protection
10, Powerful CMS management software, support 64 simultaneous display

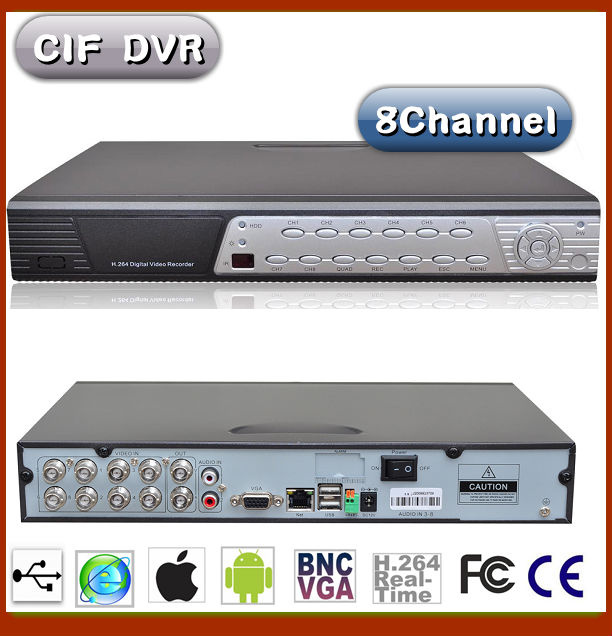

DVR Picture introduction
Specification:
|
Model No. |
BB-C0801A-DVR |
|
|
|
|
operating system |
Embedded Linux operating system |
|
System Resources |
Full live preview |
|
Operator interface |
Graphical user interface, supports mouse, panel, remote control operation |
|
Video Standard |
PAL,NTSC |
|
Video compression |
H.264 |
|
Audio Compression |
ADPCM |
|
Recording mode |
Manual, Schedule, alarm, motion detection |
|
Video Search |
Time search, event search, channel search, the log search |
|
Backup |
Network backup, USB backup |
|
Video Input |
8 CH BNC |
|
Video Output |
1CH BNC,1CH VGA |
|
Audio Input |
2 CH RCA |
|
Audio Output |
1 CH BNC |
|
Graphics Controller |
6-speed adjustable |
|
Motion Detection |
The detection area of each channel (16 × 16), can be set to multi-level sensitivity |
|
Screen display |
1,4,8Screen display |
|
Recording speed |
PAL: 25 25 Frames / sec(adjustable)NTSC: 3025 Frames / sec(adjustable) |
|
Save the video |
Hdd ,WEBSITE |
|
Local Playback |
8CH CFI/1CH D1(Adjustable) |
|
Alarm Input |
4CH (Optional) |
|
Alarm Output |
1 CH (Optional) |
|
PTZ control |
RS485 |
|
HDD Interface |
1PS SATA |
|
Network Interface |
RJ45 10M/100MAdaptive Ethernet port |
|
USB Interface |
1PS USB2.0;1PS USB1.1 |
|
Power |
12V |
