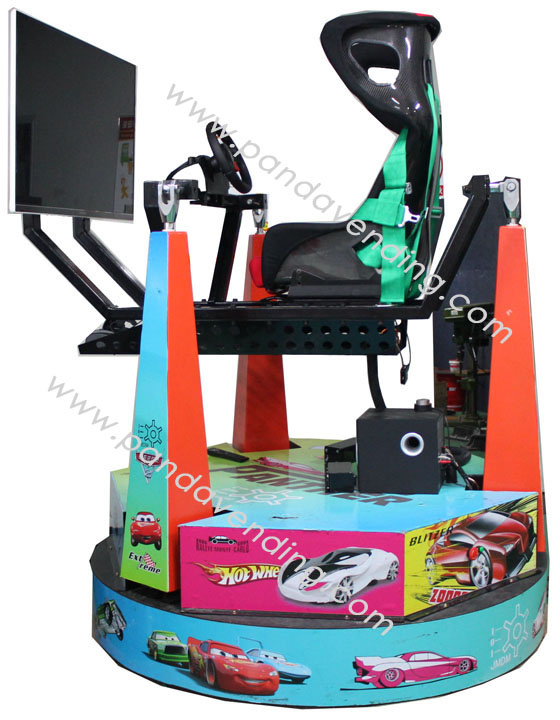

8D Interactive Driving & Flying Simulator (GM-R07)
Brief Description
This is newly launched 8D interactive Driving Game, Flying Game and 5D Dynamic Cinema ALL-IN-ONE machine, also called 8D high-simulation 360 degree rotation super interactive driving simulator. It consists of 360 degrees rotation and 4DOF super interactive electric cylinder, 600mm extra high dynamic platform, 47 inch large LCD TV, high-definition 3D games, and stereo surround sound effect. Motion simulation platform is composed of a rotary electric motor, three lifting electric cylinders and driving equipment. Players not only can play the air combat, car racing, speedboat dynamic interactive games, but also can see 5D stereoscopic dynamic movies with super difficult interactive actions or plots, which can't be realized by ordinary 3DOF / 6DOF motion theatre.
Technical Parameters
1) Max Power Consumption: AC220V*5A=1.1KW
2) Electric Cylinder Parameters:
220V AC servo motor
Aluminum alloy shell
High alloy steel expansion link
Max thrust: 200kg
Stroke: 600mm
Operating temperature: -5-60 centigrade
Max speed: 200mm/s
Screw lead: 5mm
3) AC servo motor parameters
Power: 1.0Kw
Voltage: 220V
Rated torque: 3.3Nm
Rated speed: 3000rpm
Rated current: 4.2A
Max torque: 9.9Nm
Max current: 12.6A
Specifications
1) Install Space Requirement (L*W*H): 4m x 4m x 3.2m
2) Packing Size (L*W*H): 1.8m x 1.6m x 2.2m
Demo Video: http://www.pandavending.com/ArticleShow.asp?ArticleID=631
