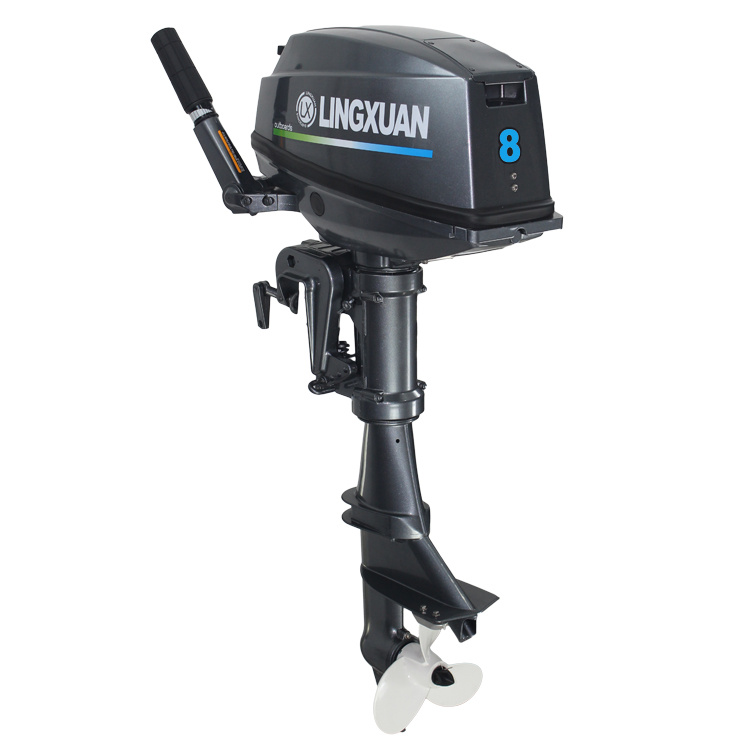

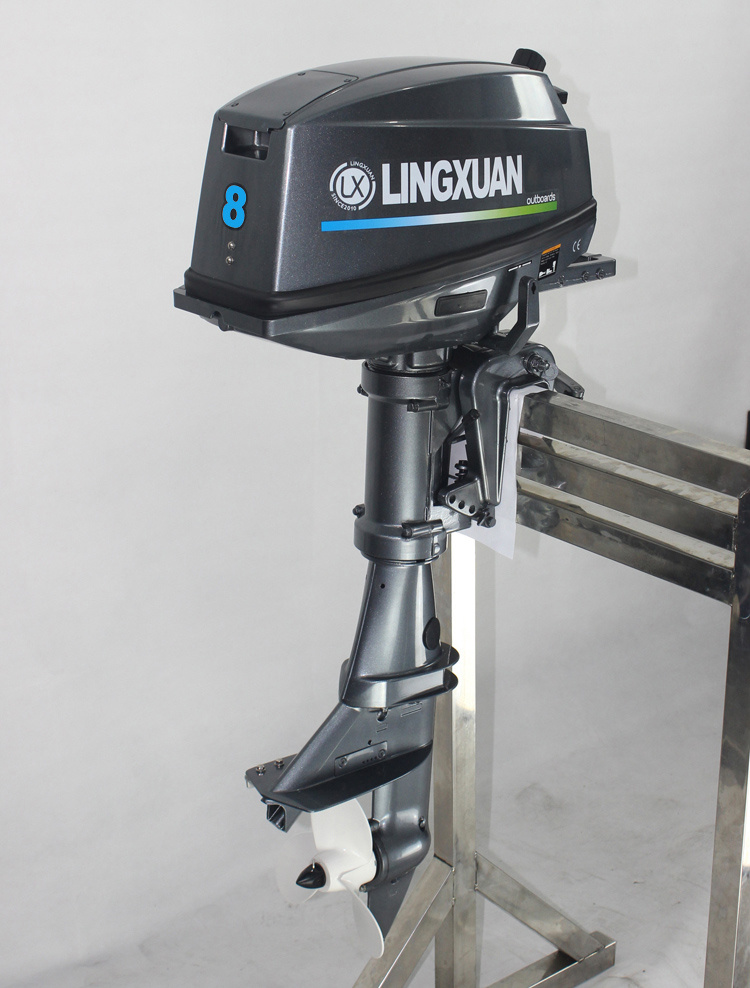

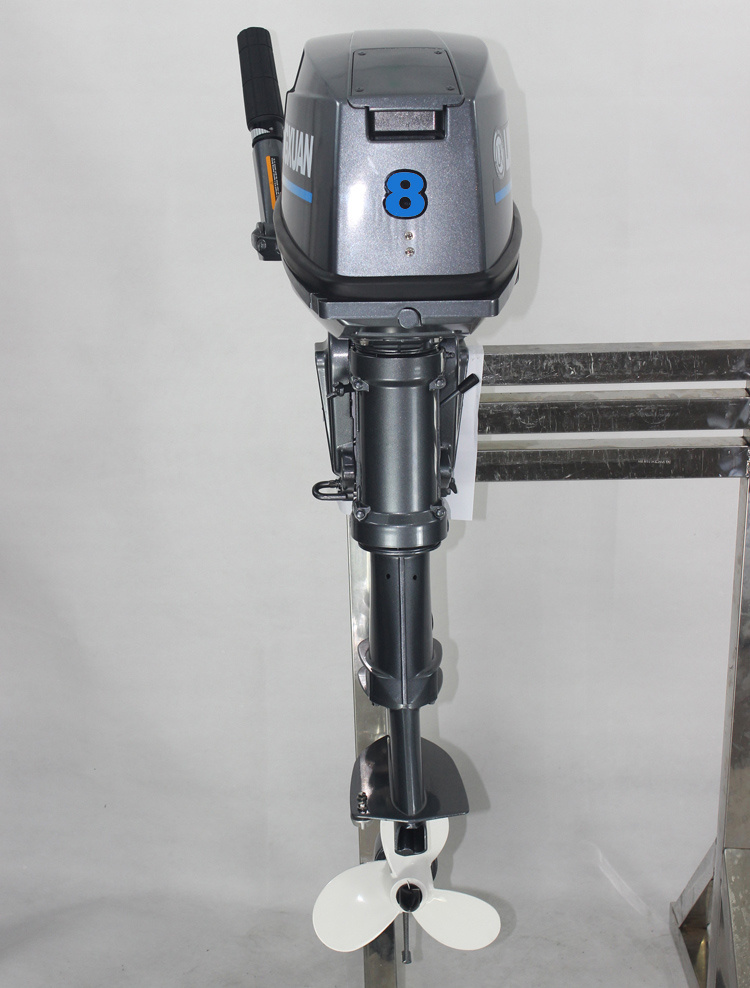

8HP 2 Stroke Outboard Engine with CE Approved
Price: |
US $ 720-750/Piece |
Trade Terms: |
FOB |
Min Order: |
5/Piece |
Pay Type: |
T/T |
Product Specifications
Prod Model: |
8HP 2 Stroke |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Starting System: |
Manual Start |
Displacement: |
165cc |
Color: |
Gray or OEM |
Max Output Kw(HP): |
5.88(8) |
Full Throttle Rpm Range: |
4500~5500 |
Max Fuel Consumption: |
4.9 |
Fuel: |
Gasoline Engine |
Product Description
Approved by CE, ISO9001 certificated
Passed over 500 hours endurance testingFeatures:High grade marine aluminum alloy for ultimate corrosion protectionTilt & trim with shallow water drive various positionsLow oil indicator for increased protectionTwist grip throttle control for easy maneuverability & safetyThermostat controlled water cooling systemSafety lanyard with emergency shutoffEasy forward-neutral-reverse gear shiftingVibration reduction system for smooth performanceStart in gear protection for increased safetyAdjustable steering friction for easier maneuverabilityCDI ignition system for trouble free startingInnovative large recoil wheel assists easy startingQuiet, through the propeller hub exhaustQuality 24L fuel tank with hose
Parameter |
Measuring unit |
T8BMS |
T8BML |
Length |
mm(in.) |
873(34.4) |
Width |
mm(in.) |
332(13.1) |
Height |
mm(in.) |
1040(40.9) |
1167(45.9) |
Transom height |
mm(in.) |
444(17.50) |
571(22.50) |
Net Weight |
kgs |
27.8 |
28.5 |
Full throttle operating range |
r/min |
4000~5000 |
Maximum output |
kw(hp)@r/m |
5.88(8)@5000 |
Idling speed |
r/min |
900~1000 |
Engine type |
|
2 Stroke |
Cylinder quanitity |
|
2 |
Displacement |
cm3 |
165 |
Bore×Stroke |
mm(in.) |
50*42(1.97*1.65) |
Ignition System |
|
CDI |
Control system |
|
Tiller |
Starting System |
|
Manual |
Gear positions |
|
Forward-neutral-reverse |
Gear ratio |
|
2.08(27/13) |
Trim and tilt system |
|
Manual tilt |
Fuel tank volume |
L |
External 24 |
Maximum fuel |
L/h |
4.9 |
Engine fuel ratio |
|
50:1 |
Gear oil |
ml |
160 |
Propeller specification |
in |
3-8 3/4"×8" |
