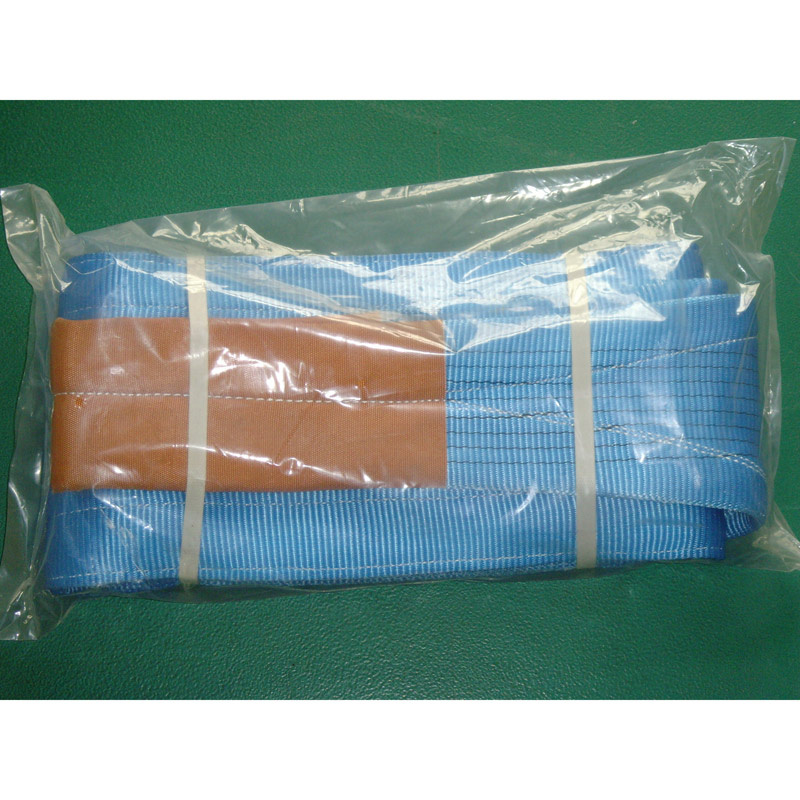

8t Flatwebbing Sling

Name: 8t Flatwebbing Sling
Brand: china-manufacturer-directory.com
SKU: 764132145
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	US $ 1.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	TS-W01-01--TS-W16-13
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1t-10t
Width:	According to Client's Demand
Length:	According to Client's Demand
Safety Factor:	5:1, 6:1, 7:1, 8:1
Type:	Synthetic Fibre Sling
Material:	Polyester
Fixed Form:	Sewing
Rope Core Type:	Polyester Core
Sling Color:	According to Clients's Demand to Made It

Product Description

8t flat webbing sling

Material
Polyester:PE
Used mainly where acid conditions are present or minimum stretch is desired,polyester is unaffected by common acid and hot bleaching agents,it is not suitable for use with concentrated sulfuric acid,alkaline or at temperature in excess of 100'C or less than -40'C,stretch at rated capacity is approximately 3%
Nylon:PA
The most widely used general-purpose synthetic web sling,is unaffected by grease and oil.It has good chemical resistance to aldehyde,ethers,and strong alkalis:But is not suitable for use with acids and bleaching agents or at temperatures in excess of 100'C or less than -40'C.Stretch at rated capacity is approximately 6-8%.And if wet,maybe the strength will be less over 10%
Polypropyline:PP
Polypropyline is little affected by acids or alkalis and suitable for application where the highest resistance to chemicals other than solvents is required.Using temperatures scope is from -40'C up to 80'C
High-performance synthetic sling is made of a super strong polyethylene fiber.This sling is up to 15 times stronger than steel and weight-for-weight is 40% stronger than competing polyester sling.It has high energy absorption and low elongation,sling floats on water,and is extremely resistant to abrasion,moisture,UV rays and chemicals.As a result,it has an almost unlimited range of application.Providing maximum strength and security for minimum weight.

TS-W01 EYE -EYE WEBBING SLING (Double Ply)

Item No.	WLL (kg)	Width (mm)				L(m)		Eye length (mm)
		5:1	6:1	7:1	8:1	Min	Max
TS-W01-01	1000	25	25/38	30/50	30/50	0.5	100	350
TS-W01-02	2000	50	50	60	60	0.5	100	400
TS-W01-03	3000	75	75	90	90	0.8	100	450
TS-W01-04	4000	100	100	120	120	1.0	100	500
TS-W01-05	5000	125	125	150	150	1.5	100	550
TS-W01-06	6000	150	150	180	180	2.0	100	600
TS-W01-08	8000	200	200	240	240	2.0	100	700
TS-W01-10	10000	250	250	300	300	3.0	100	800
TS-W01-12	12000	300	300	300	300	3.0	100	900

TS -W02 EYE -EYE WEBBING SLING (Single Ply)

Item No.	WLL (kg)	Width (mm)				L(m)		Eye length (mm)
Item No.	WLL (kg)	5:1	6:1	7:1	8:1	Min	Max	Eye length (mm)
TS -W02-01	1000	50	50	60	60	0.5	100	350
TS -W02-02	2000	100	100	120	120	1.0	100	400
TS -W02-03	3000	150	150	180	180	1.5	100	450
TS -W02-04	4000	200	200	240	240	2.0	100	500
TS -W02-05	5000	250	250	300	300	3.0	100	550
TS -W02-06	6000	300	300	300	300	3.0	100	600

TS -W03 EYE -EYE WEBBING SLING (Three Ply)

Item No.	WLL (kg)	Width (mm)				L(m)
		5:1	6:1	7:1	8:1	Min	Max
TS -W03-01	1500	25	25/38	30/50	30/50	1.0	50
TS -W03-02	3000	50	50	60	60	1.0	50
TS -W03-03	4500	75	75	90	90	1.5	50
TS -W03-04	5000	100	100	X	X	2.0	50
TS -W03-05	6000	100	100	120	120	2.0	50
TS -W03-06	7500	125	125	150	150	2.0	50
TS -W03-07	9000	150	150	180	180	3.0	50
TS -W03-08	10000	150	150	X	X	3.0	50
TS -W03-09	12000	200	200	240	240	3.0	50
TS -W03-10	15000	250	250	300	300	3.0	50
TS -W03-11	18000	300	300	300	300	3.0	50

TS -W04 EYE -EYE WEBBING SLING (Four Ply)

Item No.	WLL (kg)	Width (mm)				L(m)
		5:1	6:1	7:1	8:1	Min	Max
TS -W04-02	2000	25	25/38	30/50	30/50	1.0	50
TS -W04-04	4000	50	50	60	60	1.0	50
TS -W04-06	6000	75	75	90	90	1.5	50
TS -W04-08	8000	100	100	120	120	1.5	50
TS -W04-10	10000	125	125	150	150	2.0	50
TS -W04-12	12000	150	150	180	180	2.0	50
TS -W04-16	16000	180	180	240	240	3.0	50
TS -W04-20	20000	200	200	300	300	3.0	50
TS -W04-24	24000	250	250	300	300	3.0	50

TS -W05 EYE -EYE WEBBING SLING (Heavy Duty)

Item No.	WLL (kg)	Width (mm)				L(m)
		5:1	6:1	7:1	8:1	Min	Max
TS -W05-01	8000	400	400	480	480	2.0	50
TS -W05-02	10000	500	500	600	600	2.0	50
TS -W05-03	12000	600	600	600	600	3.0	50
TS -W05-04	16000	400	400	480	480	3.0	50
TS -W05-05	20000	500	500	600	600	3.0	50
TS -W05-06	24000	600	600	600	600	4.0	50
TS -W05-07	32000	400	400	480	480	4.0	50
TS -W05-08	40000	500	500	600	600	4.0	50
TS -W05-09	48000	600	600	600	600	4.0	50

TS -W06 EYE -EYE WEB SLING (U.S Double Ply)

Item No.	HEAVY DUTY LC (LBS)	LIGTH DUTY LC (LBS)	Width (in)	Longer (ft)
			5:1	Min	Max
TS -W06-01	3200		1	2	300
TS -W06-02	6400		2	2	300
TS -W06-03	8900		3	3	300
TS -W06-04	12000		4	4	300
TS -W06-05	14250		5	4	300
TS -W06-06	18000		6	5	300
TS -W06-08	22800		8	6	300
TS -W06-10	28000		10	8	300
TS -W06-12	33600		12	8	300

TS -W07 EYE -EYE WEB SLING ( U.S Single Ply)

Item No.	HEAVY DUTY LC (LBS)	LIGTH DUTY LC (LBS)	Width (in)	Longer (ft)
			5:1	Min	Max
TS -W07-01	1600		1	2	300
TS -W07-02	3200		2	2	300
TS -W07-03	4800		3	3	300
TS -W07-04	6400		4	4	300
TS -W07-05	8000		5	4	300
TS -W07-06	9600		6	5	300
TS -W07-07	12800		8	6	300
TS -W07-08	16000		10	8	300
TS -W07-09	19200		12	8	300

TS -W08 EYE -EYE WEB SLING (U.S Three Ply)

Item No.	HEAVY DUTY LC (LBS)	LIGTH DUTY LC (LBS)	Width (in)	Longer (ft)
			5:1	Min	Max
TS -W08-01	4100		1	4	200
TS -W08-02	8200		2	4	200
TS -W08-03	12300		3	6	200
TS -W08-04	15300		4	6	200
TS -W08-05	22500		5	8	200
TS -W08-06	23000		6	8	200
TS -W08-07	34000		8	10	200
TS -W08-08	36000		10	10	200
TS -W08-09	46000		12	10	200

TS -W09 EYE -EYE WEB SLING (U.S Four Ply)

Item No.	HEAVY DUTY LC (LBS)	LIGTH DUTY LC (LBS)	Width (in)	Longer (ft)
			5:1	Min	Max
TS -W09-01	6100		1	4	200
TS -W09-02	12200		2	4	200
TS -W09-03	18000		3	6	200
TS -W09-04	24000		4	6	200
TS -W09-05	30000		5	8	200
TS -W09-06	36000		6	8	200
TS -W09-07	45000		8	10	200
TS -W09-08	55000		10	10	200
TS -W09-09	66000		12	10	200

TS -W10 Endless Webbing Sling ( U.S Single Ply)

Item No.	HEAVY DUTY LC (LBS)	LIGTH DUTY LC (LBS)	Width (in)	Longer (ft)
			5:1	Min	Max
TS -W10-01	3200		1	4	200
TS -W10-02	6400		2	4	200
TS -W10-03	8900		3	6	200
TS -W10-04	12000		4	6	200
TS -W10-05	14250		5	8	200
TS -W10-06	18000		6	8	200
TS -W10-07	22800		8	10	200
TS -W10-08	28000		10	10	200
TS -W10-09	33600		12	10	200

TS -W11 Eye -Eye Webbing Sling (South America Double Ply)

Item No.	WLL (kg)	Color	Width (mm)	Longer (m)
			7:1	Min	Max
TS -W11-01	1000	Violet	2.5	0.5	100
TS -W11-02	2000	Green	5.0	0.5	100
TS -W11-03	3000	Yellow	7.5	0.8	100
TS -W11-04	4000	Grey	10.0	1.0	100
TS -W11-05	5000	Red	12.5	1.5	100
TS -W11-06	6000	Brown	15.0	2.0	100
TS -W11-08	8000	Blue	20.0	2.0	100
TS -W11-10	10000	Orange	25.0	3.0	100
TS -W11-12	12000	Orange	30.0	3.0	100

TS-W12 Endless Webbing Sling (Single Ply)

Item No.	WLL (kg)	Width (mm)				Longer (m)
		5:1	6:1	7:1	8:1	Min	Max
TS -W12-01	1000	25	25/38	30/50	30/50	1	100
TS -W12-02	2000	50	50	60	60	1	100
TS -W12-03	3000	75	75	90	90	1	100
TS -W12-04	4000	100	100	120	120	1	100
TS -W12-05	5000	125	125	150	150	1	100
TS -W12-06	6000	150	150	180	180	1	100
TS -W12-08	8000	200	200	240	240	1	100
TS -W12-10	10000	250	250	300	300	1	100
TS -W12-12	12000	300	300	300	300	1	100

TS-W13 Endless Webbing Sling (Double Ply)

Item No.	WLL (kg)	Width (mm)				L(m)
		5:1	6:1	7:1	87:1	Min	Max
TS -W13-02	2000	25	25/38	30/50	30/50	1	100
TS -W13-04	4000	50	50	60	60	1	100
TS -W13-06	6000	75	75	90	90	1	100
TS -W13-08	8000	100	100	120	120	1	100
TS -W13-10	10000	125	125	150	150	1.5	100
TS -W13-12	12000	150	150	180	180	1.5	100
TS -W13-16	16000	200	200	240	240	1.5	100
TS -W13-20	20000	250	250	300	300	1.5	100
TS -W13-24	24000	300	300	300	300	1.5	100

TS-W14 One Way Webbing Sling (Endless Type)

Item No.	WLL (kg)	Width (mm)				L(m)		Color
		5:1	6:1	7:1	8:1	Min	Max
TS -W14-01	250	25	25	25	25	0.5	100	White
TS -W14-02	300	25	25	25	25	0.5	100	White
TS -W14-03	320	30	30	30	30	0.5	100	White
TS -W14-04	350	30	30	30	30	0.5	100	White
TS -W14-05	400	35	35	35	35	0.5	100	White
TS -W14-06	450	35	35	35	35	0.5	100	White
TS -W14-07	500	45	45	45	45	0.5	100	White
TS -W14-08	530	50	50	50	50	0.5	100	White
TS -W14-09	750	50	50	50	50	0.5	100	White
TS -W14-10	850	50	50	50	50	0.5	100	White
TS -W14-11	1150	50	50	50	50	0.5	100	White
TS -W14-12	1250	50	50	50	50	0.5	100	White
TS -W14-13	1500	50	50	50	50	0.5	100	White
TS -W14-14	1750	50	50	50	50	0.5	100	White

TS-W15 One Way Webbing Sling (eye -eye type)

Item No.	WLL (kg)	Width (mm)				L(m)		Eye Length (cm)
		5:1	6:1	7:1	8:1	Min	Max
TS -W15-01	250	25	25	25	25	1.0	100	20.0
TS -W15-02	300	25	25	25	25	1.0	100	20.0
TS -W15-03	320	35	35	35	35	1.0	100	20.0
TS -W15-04	350	45	45	45	45	1.0	100	25.0
TS -W15-05	400	50	50	50	50	1.0	100	25.0
TS -W15-06	450	50	50	50	50	1.0	100	25.0
TS -W15-07	500	50	50	50	50	1.0	100	25.0
TS -W15-08	530	50	50	50	50
TS -W15-09	750	50	50	50	50
TS -W15-10	850	50	50	50	50
TS -W15-11	1150	50	50	50	50
TS -W15-12	1250	50	50	50	50

TS-W16 One Way Webbing Sling (Single -eye type)

Item No.	WLL (kg)	Width (mm)				L(m)		Eye Length (cm)
		5:1	6:1	7:1	8:1	Min	Max
TS -W16-01	250	25	25	25	25	0.5	100	20.0
TS -W16-02	300	25	25	25	25	0.5	100	20.0
TS -W16-03	320	30	30	30	30	0.5	100	20.0
TS -W16-04	350	30	30	30	30	0.5	100	25.0
TS -W16-05	400	35	35	35	35	0.5	100	25.0
TS -W16-06	450	35	35	35	35	0.5	100	25.0
TS -W16-07	500	45	45	45	45	0.5	100	25.0
TS -W16-08	530	50	50	50	50	0.5	100
TS -W16-09	750	50	50	50	50	0.5	100
TS -W16-10	850	50	50	50	50	0.5	100
TS -W16-11	1150	50	50	50	50	0.5	100
TS -W16-12	1250	50	50	50	50	0.5	100
TS -W16-13	1500	50	50	50	50	0.5	100
TS -W16-14	1750	50	50	50	50	0.5	100

JiangSu TianHua Sling was an Joint-Venture cooperation by three partners which had more than 30 years manufacturing and marketing experience for synthetic sling. We built up 20000 M2 workshop and imported 46 piece Muller Weaving Machinery from Switzerland directly. Quality products and dedicated customer service to the sling and rigging industries has allowed us to earn our reputation for quality, service and innovation. We offers the webbing, round sling, ratchet tie down, towing snatch, safety harness and slackline. They were used widely in cargo lifting, transportation security, construction, marine and 4X4 industry.

Why we can success?

1: Strict quality control, Our professional QC inspected every lots no matter it is sample or mass production strictly in WLL and SF. Every sales will be responsible for order details so it confirm each information from clients will be implemented correctly and strictly. At same time, we pay much attention to the raw material inspection so as to control it at initial activity.

2: Nice innovation. We found out the defect of products depending on the visit to clients after they get goods. Do it by questionnaire. We also try to talk with end user to know what they are not satisfied. Encourage the technician to improve products constantly.

3: Excellent customer service, our salesman is professional, experienced and full of passion. We reply our clients rapidly and professionally so they can feel our honesty and confidence. Clear and patient answer to client's question make us win order quickly.

4: Good cost control, Competitive price must be first. We pursue and explore the management method so as to reduce the cost. Benefiting from the good relationship with our suppliers, due to nice payment terms to them, we can always get better price than our competitor from supplier. It makes us more competitive.

Our qualification? :

Now we have passed the ISO9001--2000, TUV, GS, CE certificate from Germany Rhein, the Chinese CCS. We can produce as clients request by ISO4878, EN1492-1/1492-2. GB/T8521-1997, England, Australia and US standard.

Where we are?

Jiangsu TianHua Sling located in Taizhou City, JiangSu Province. China.

The capital of sling in China, Welcome all oversea clients come and visit us.
