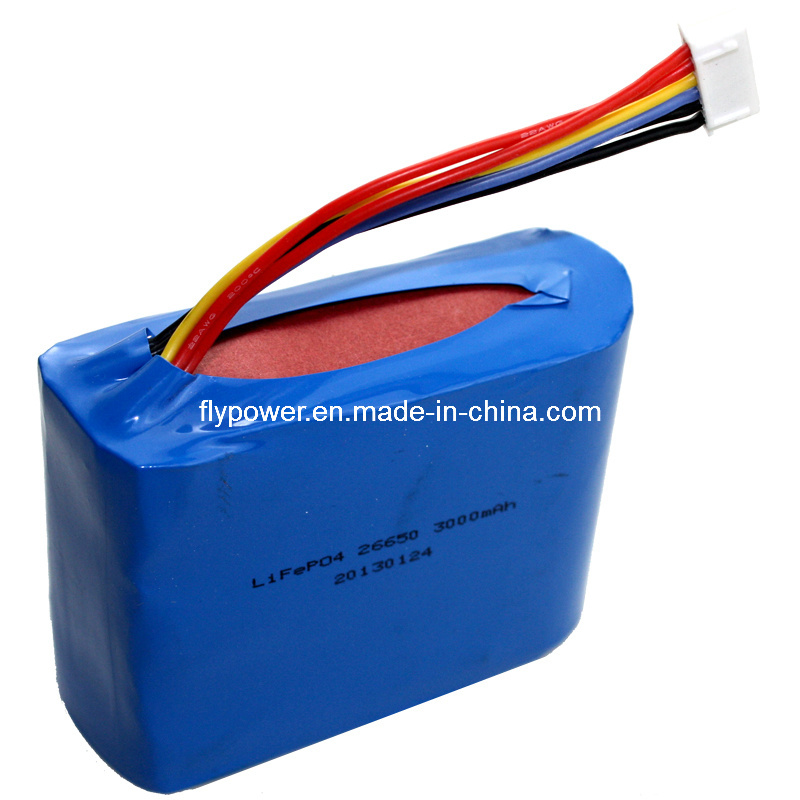

1. Model: LiFePO4 Battery pack 9.6V 3000mAh(3S1P of FLFC-26650E with PCM).
2. UN, RoHS, CE approved Polymer Li-ion Battery pack.
3. LiFePO4 Battery pack OEM orders are welcomed.
4. Customizes shapes, capacity, and voltage are accepted.
5. Individual cells can be assembled in parallel or series into stacks as required by customers.
Feature
1. Safety: Currently the safest Li-ion battery, CE UL approved, none fire, none explosive
2. Environment friendly, no toxic material contained.
3. Powerful: P type battery can discharge in 15C-20C.
4. Low self discharge: ≤ 3%(monthly).
5. Long life cycle, more than 2000 cycle in 0.5C-1C discharge
6. No memory effect: Can be recharged any time, no reduction of capacity.
7. Broad operation temperature -20---60 centigrade.
8. Small in size and light in weight.: Compare with our battery, 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery.
Application
1. Electric Vehicle: Hybrid Electric Vehicle, Pure Electric Vehicle;
2. Ebike, Escooter, Electric Golf Cart, Electric Tools, Lawn Mower, Vacuum Cleaner. Electric boat, Elevator, Electric Wheelchair;
3. UPS: For computer, Emergency Application, Medical Movable UPS;
4. Solar Energy: Solat street lights, Solar LED Lights
5. Telecom System: Communication Base.
|
LiFePO4 battery pack 9.6V 3000mAh (3S of FLFC-26650E with PCM) |
|
Cell: |
LiFePO4 |
|
Model: |
3S of FLFC-26650E |
|
Nominal Voltage: |
9.6V |
|
Nominal Capacity: |
3000mAh |
|
Minimal Capacity: |
2900mAh |
|
Charging Method: |
CC/CV(Constant Current/Constant Voltage) |
|
Charge Current: |
Standard charge : 0.2C(600mA) |
|
Rapid charge : 0.5C(1500mA) |
|
Charging Time: |
Standard charge : 8.0 hours (Ref.) |
|
Rapid charge : 4.5 hours (Ref.) |
|
ContinuousDischarge Current: |
3.0C (9A) |
|
Cut-off Discharge Voltage: |
6V±0.05V |
|
Overcharge Voltage |
3.9±0.025V per cell |
|
Over Discharge Cut Off Voltage |
2.0±0.05V per cell |
|
Short Circuit Protection |
Recover after removing the short circuit load or recharge |
|
Dimensions(T.W.H.) |
28mm * 68.2mm*82mm |
|
Weight: |
Approx. 285g |
|
Operating Temperature: |
Charge : 0 ~ 45 ºC |
|
Discharge: -10 ~ 60 ºC |
|
Storage Temperature: |
at -5 ~ 35 ºC Recommend(25±5 ºC) |
|
Note |
Storage capacity should be 40%~50% full charge capacity |
|
Applications |
Medical equipment,solar lighting or other portable device |
