Product Specifications
| Prod Model: |
F091 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
9mm |
| Total Resistance: |
1kohms~1mohms |
| Total Resistance Tolerance: |
20% |
| Resistance Taper: |
a, B, C |
| Max. Operating Voltage: |
AC50V.DC10V |
| Rated Power: |
Linear Taper B: 0.05W Other Tapers: 0.025W |
| Rotational Noise: |
Less Than 100mv |
| Insulation Resistance: |
More Than 100mohms at DC 250V |
| Withstand Voltage: |
1 Minute at AC 300V |
| Residual Resistance: |
20 Ohms |
| Resistance: |
Variable Resistor |
| Type: |
Rotary Potentiometer |
| Installation: |
DIP Resistor |
| Material: |
Carbon Film Resistor |
| Package Type: |
Throught Hole |
| Function For Resistance: |
Voltage Adjust |
Product Description

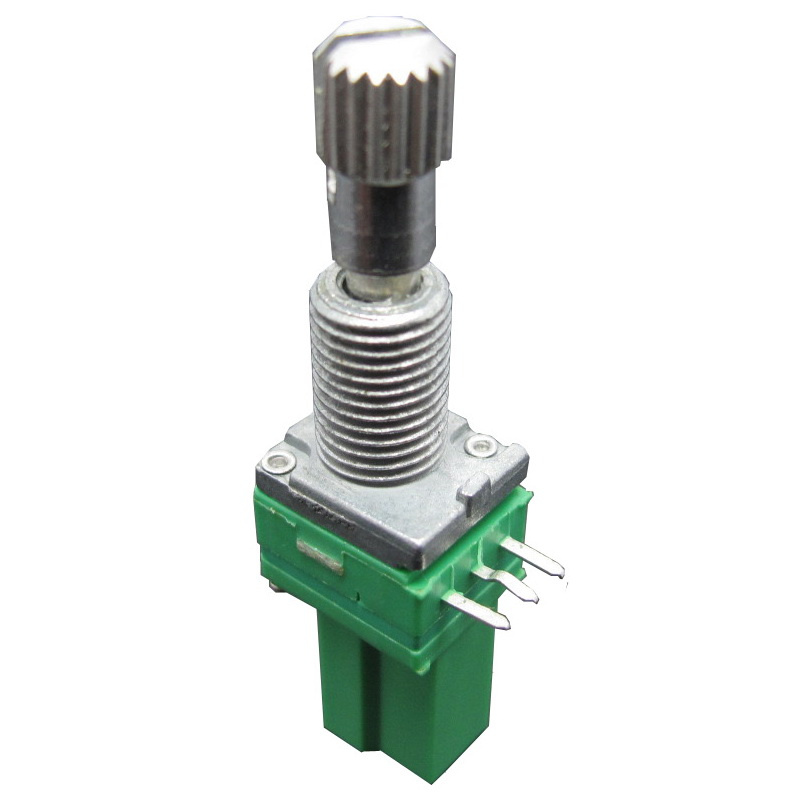

F091 Series
Metal shaft Potentiometer
Feature
1. Flux build-up prevention is taken through inserting molding around the resistor with resin.
2. A large variety of products lined up to support various applications.
3. Long Life Type Available
|
Electrical characteristics |
|
Total Resistance |
1KΩ ~1MΩ |
|
Total Resistance Tolerance |
500Ω < R< 1MΩ : ± 20% R< 500Ω or R> 1MΩ : ± 30% |
|
Resistance Taper |
A, B, C |
|
Max. Operating Voltage |
AC50V. DC10V |
|
Rated Power |
Linear Taper B: 0.05W Other Tapers: 0.025W |
|
Rotational Noise |
Less than 100mv |
|
Insulation Resistance |
More than 100MΩ at DC 250v |
|
Withstand voltage |
1 minute at AC 300V |
|
Residual Resistance |
Term. 1~2: Less than 20Ω Term. 2~3: Less than 20Ω |
|
Gang Error (Dual Unit or Multi Unit) |
-40dB~0dB ± 3dB |
|
Mechanical characteristics |
|
Total Rotational Angle |
300° ± 10° |
|
Rotational Torque |
5~90gf. cm |
|
Click Torque |
50gf. cm~200gf. cm |
|
Rotational Stopper Strength |
4.0Kgf. cm Min. |
|
Push-Pull Strength |
6.0Kgf Min |
|
Bushing nut tighten strength |
8.0Kgf. cm Min |
|
Number of detents (click) |
1C (Center Detent), 11C, 21C, 41C |
|
Durability |
|
Operating temperature range |
-10° C ~ +70° C |
|
Storage temperature range |
-30° C ~ +80° C |
|
Rotational Life |
15, 000 Cycles |
|
Switch characteristics |
|
Contact resistance |
Less than 100mΩ |
|
Switch rated power |
Push: 0.5A at DC 12V Rotational: 3.0A at DC 16V |
|
Switch push stroke length |
0.5+0.5/-0.3mm |
|
Switch Rotational Angle |
50° Max |
|
Switch torque |
Push: 250~550gf Rotational: 100~350gf. cm |
|
Switch circuit |
S. P. S. T & D. P. S. T |
|
Switch life |
15, 000 Cycles Min. |
