Product Specifications
| Prod Model: |
KMBYC168-2.3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Engine: |
Epson Stylus Photo 1390 |
| Print Size: |
32.9*60cm or 32.9*42cm Optional |
| Color: |
Cmyk+Ww |
| Max Resolution: |
5760*1440dpi |
| Nozzle Configuration: |
540 Nozzles (90 * 6 Colors) |
| Ink Cartridge: |
CISS(Continuous Ink Supply System) |
| Printer Size: |
87*67*63cm |
| Printer Weight: |
62kg |
| Warranty: |
One Year |
| Service: |
OEM, ODM, Free Sample |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB2.0 |
| Plate: |
Flatbed Printing |
| Structure: |
Flatbed Printer |
| Usage: |
Direct Garment Printer |
| Printing Speed: |
A4 Size Photo with About 2 Minutes. |
| System Supported: |
Windows 2000/XP/7 |
Product Description

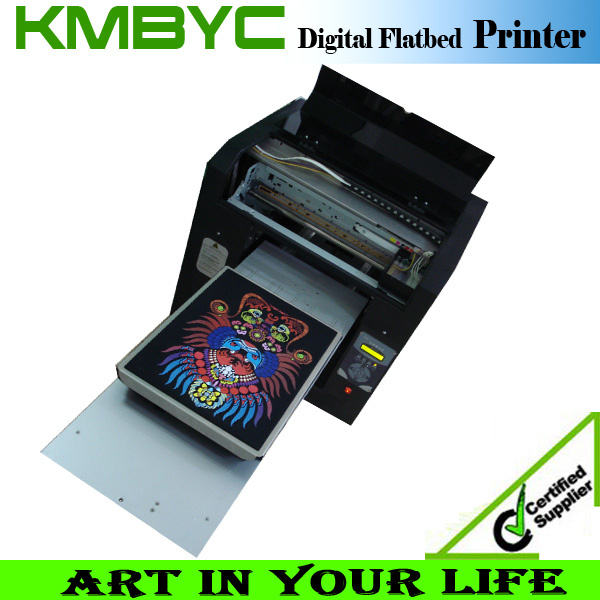

A3 Size Direct Garment flatbed Printer,direct image printing machine
Brief Introduction
This printer is economy normal speed model; Suitable for print logo, photo, letters on any color t shirt;
Its print speed is normal, for example to print A3 size photo, it costs approx 3 minutes;
It is good for small volume customized DIY t shirt printing.
It is directly print from computer onto garment , no need any complicated process. It is directly print on any color t shirt, white, black, color shirts are good.
It can print up to 32*60cm size, very suitable for all kinds of t shirt, and also print on baby shirt, small child shirt etc.
Print cost is very low, average cost about $1 for 100*100cm size photo.
Average print cost of each t shirt is about $0.1.
Print process is easy, directly print picture from computer with no transfer, no color lose:
1, light color t shirt (no need white ink):
S1, put t shirt on the adapter on printer,
S2, choose the picture from computer and put it in RIP software,
S3, click print option, and it will be printed onto the t shirt;
S4, heat press the printed t shirt for approx 40 sec.
2, dark and black color t shirt (need white ink):
S1, spray the pretreat fixing agent on print area manually,
S2, put t shirt on the adapter on printer,
S3, choose the picture from computer and put it in RIP software,
S4, click white print option;
S5, it prints white picture base onto the t shirt;
S6, click the color photo print option;
S7, it prints color photo on white base;
S8 heat press the printed t shirt for approx 40 sec.
Necessary goods for t shirt printing are as bellows:
1, color textile ink + white textile ink, can print on any color t shirt;
2, pretreat fixing agent is used for white textile ink pretreatment, you need only to spray it on product before print white ink. If you print on light color t shirt, no need white ink, no need pretreatment;
3, Cleaning liquid: It is better to keep some Cleaning liquid in stock, you may need to clean the printer someday (for example if you will leave it not work for long time);
4, RIP software is necessary for print white color, and its inner ICC is very good for print all colors;
5, t shirt adapter is used for arrange t shirt on printer and get the best print position;
6, heat press machine is used for dry and fix color after printing; You can buy similar product from many many place; If you can buy it from your city, you may save much shipping costs than buy from China.
Specification of A3 Size Direct Garment flatbed Printer,direct image printing machine
| Item name | BYC168-2.3 eco solvent Printer |
| Main engine | Epson Stylus photo 1390 |
| Max print Size | 32.9*60cm |
| Max print Thickness | 18cm (adjustable by infrared ray) |
| Max Resolution | 5760*1440dpi |
| Nozzle Configuration | 540 nozzles (90 * 6 colors) |
| Minimum Ink Droplet Size | 1.5 Pico liters |
| Ink Cartridge | CISS(continuous ink supply system) |
| Ink Palette | C/M/Y/K/LC/LM |
| Rated Voltage | AC 110/220V |
| Power Consumption | approx 35W |
| Printer Size | 87*67*63cm |
| Printer Weight | 62kg |
| Interface | Hi-Speed USB 2.0 |
| Print Speed | 111 sec for A4 size 1440*720dpi photo |
| Operating Systems | windows 2000/XP/7/8 |
| Operating Temperature | 50° to 95° F (10° to 35° C) |
| Operating Humidity | 20% to 80% |
| Dimensions | approx 96*76*78cm packed in wooden case |
| Gross Weight | approx 100kg |
| Warranty | One year (except CISS, cleaning unit, print head or damage by human.) |
