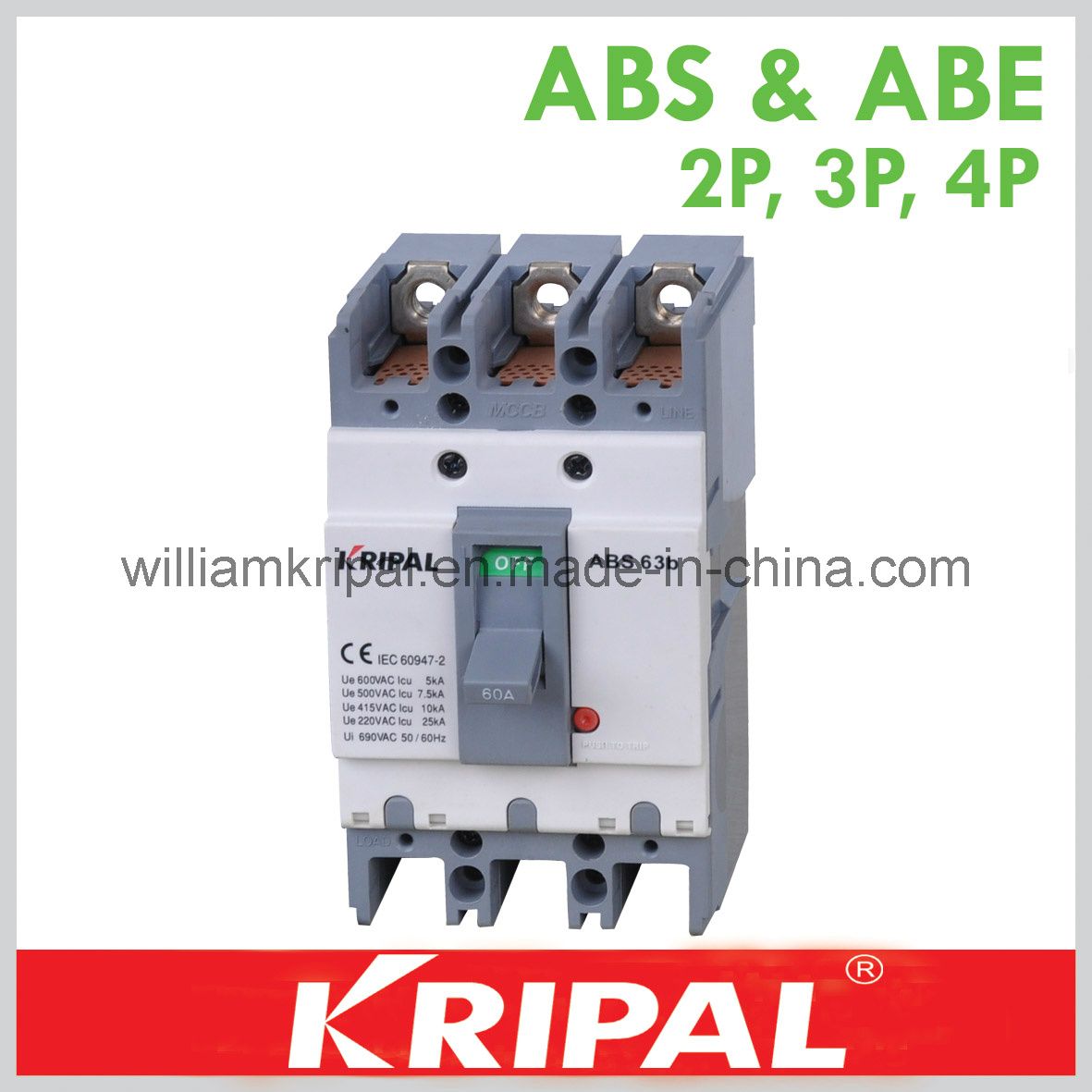

ABS63 60A 3p Power Distribution MCCB

Name: ABS63 60A 3p Power Distribution MCCB
Brand: china-manufacturer-directory.com
SKU: 671453015
Availability: InStock
Rating: 5 (40 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Motor Protection Breaker

ABS/ABE series power distribution MCCB is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated work

ABS/ABE series power distribution MCCB is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.

Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor.

It can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage.

The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.

Type	2pole	AB-32E	AB-52E	AB-52S	AB-62E	AB-62S	AB-102E	AB-102S	AB-203E	AB-203S	AB-403E	AB-403S
Type	3pole	AB-33S	AB-53E	AB-53S	AB-63E	AB-63S	AB-103E	AB-103S	AB-203E	AB-203S	AB-403E	AB-403S
Frame size(AF)		30	50		60		100		225		400

Rated operational voltage(V)Ue (50/60Hz)		600	600	600	600	600	600	600	600	600	600	600
Rated insulation voltage(V)Ui(50/60Hz)		690	690	690	900	900	690	690	690	690	690	690
Rated impulse withstand voltage(KV)Uimp		6	6	6	6	6	6	6	6	6	6	6
Uitimate breaking capacity (KA,Icu AC 50/60Hz)	220V/240V	10	10	25	10	25	10	50	35	50	35	50
	380V	7.5/5	7.5/5	14/10	7.5/5	14/10	7.5/5	25	18	25	30	42
	415V	7.5/5	7.5/5	14/10	7.5/5	14/10	7.5/5	25	18	25	25	35
	440/460V	5	5	10	5	10	5	25	18	25	25	35
	480/500V	2.5	2.5	7.5	2.5	7.5	2.5	25	10	14	18	25
	600V	2.5	2.5	5	2.5	5	2.5	14	7.5	10	18	22
Utilisation category		A	A	A	A	A	A	A	A	A	A	A
Endurance	Mechanical	8500	8500	8500	8500	8500	8500	8500	7000	7000	4000	400
Endurance	Electrical	1500	1500	1500	1500	1500	1500	1500	1000	1000	1000	1000

Prod Model:	ABS 63b
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	3
Certification:	CCC
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Structure:	Power Distribution MCCB

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
