Product Specifications
| Prod Model: |
DVL-PMS3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Vehicle Safety Barrier |
| Color: |
Orange/Grey,Other Colors Seletable |
| Voltage: |
AC220/AC110 50/60Hz |
| Rated Power: |
100W |
| Temperature (Degree Celsius): |
-30 Degree
|
| Cabinet Weight: |
55kg |
| Arm Speed: |
1.2s, 3s, 5s(Suggest Use 3s) |
| Pole: |
No More Than 6 Meters(Suggest Use 3m) |
| Warranty: |
at Least 1 Year |
| Shippment: |
by Sea or as Customers' Requirements |
| Position: |
Central Isolation Barrier |
| Material: |
Aluminium |
| Post Fixation: |
Polymer Base |
| Degree Of Distortion: |
Semi-Rigid Barrier |
Product Description

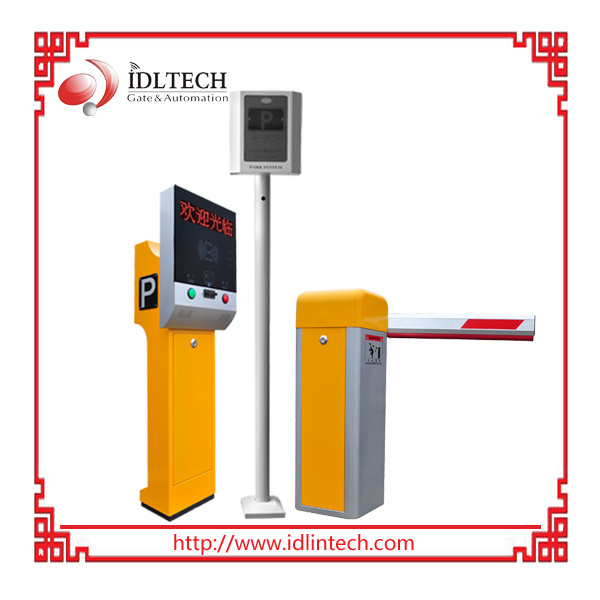

High Quality Automatic Barrier Gate
Standard barrier gate; Up to 6m arm length; Arm Speed is 1.2s, 3s, 5s(suggest use 3s); Outdoor and indoor.
It is a digital barrier gate which is suitable for modern management characterized by "safety, quickness, high efficiency and high quality". It is mainly used in parking lot, hotel, school, garden villa, enterprise and public institution, etc...
Main Feature
1) High system integration and powerful function;
2) Adopt elevating overtime and motor overheating protection to prevent abnormal damage of the gate;
3) Adopt Hall sensing device to conduct inductive limit control, non-contact work, never abrasion and offset;
4) Adopt imported large power relay with original packaging to ensure reliable operation of barrier gate.
5) Adopt imported photoelectric isolated protection circuit with original packaging to ensure signal integrity and resistance to strong interference.
6) Wireless remote control receiving module integrating one million groups of learning codes with high performance to ensure operation stability.
7) Adopt unique arc extinction processing circuit to ensure service life of control panel.
8) Adopt transformer with imported magnetic core and original packaging, be able to work stably under outdoor moist environment.
9) Provide extra 12V/100mA power supply, convenient to connect different types of limit detection device.
Technical Parameters
Voltage: AC220/AC110 50/60HZ
Rated power: 100W
Motor working temperature (degree Celsius): -30 degree
Cabinet weight: 55KG
Protection grade: IP44
Color: Red/White, other colors seletable
Arm Speed: 1.2s, 3s, 5s(suggest use 3s)
Pole: No more than 6 meters(suggest use 3m)
Height of the center of rod from ground: 830 (or 890)
Remote-controlled distance: More than 30 meters
Communication interface: Enhancement type RS232 (Can be connected directly to computer for use)
Input interface: +12V level signal or pulse width is greater than 100MS pulse signal
| Input power | AC220/AC110 50/60HZ |
| Rated power | 100W |
| Motor working temperature (degree Celsius) | -30 degree |
| Cabinet weight | 55KG |
| Protection grade | IP44 |
| Height of the center of rod from ground | 830 (or 890) |
| Remote-controlled distance | More than 30 meters |
| Communication interface | Enhancement type RS232 (Can be connected directly to computer for use) |
| Input interface | +12V level signal or pulse width is greater than 100MS pulse signal |
