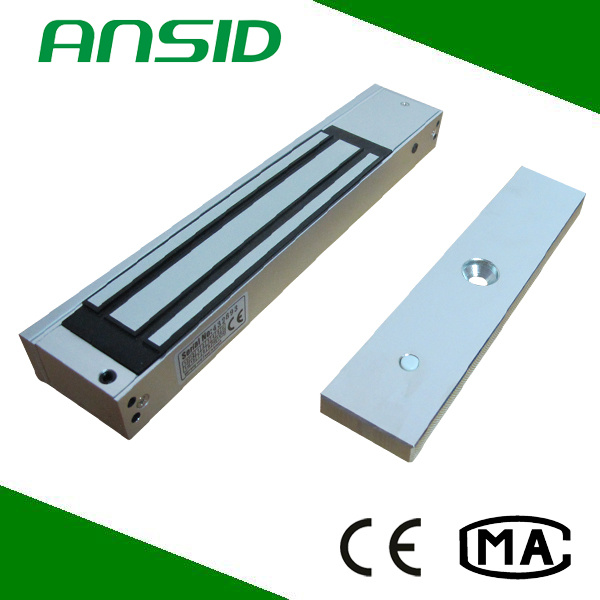

Electromagnetic Lock with signal output(600lbs)
AM-280 is a single magnetic lock, it is designed for glass door, wooden door, fireproof door, sliding door and metal door, easy to install. Special anti-residual magnetism designed.
Main Features:
1. Collinear Load Test 280kg,600pounds.
2. MOV Provides Reverse Current Protection.
3. designed to prevent anti-residual magnetism
4. High Strength Material,Anodized Aluminum Housing.
5. Designed with no bolts or any moving parts, built to last
6. Low Power Usage, High Holding Force
|
Specifications: |
|
|
Lock Dimension |
250Lx48Wx28H(mm) |
|
Armature Dimension |
180Lx40Wx12H(mm) |
|
Holding Force |
280kg(600Lbs) |
|
Input Voltage |
12/24VDC |
|
Current |
12V/500mA 24V/250mA (±5%) |
|
Suitable |
Wooden door , Glass door ,Metal door , Fireproof door |
|
Operating Temp |
-10~+55(14-131F) |
|
Humidity |
0~90%(non-condensing) |
|
Cover Finish |
Anodized aluminum |
|
Lock Finish |
Zinc |
|
Armature Plate Finish |
Zinc |
|
Weight |
2.13KG (±1%) |
