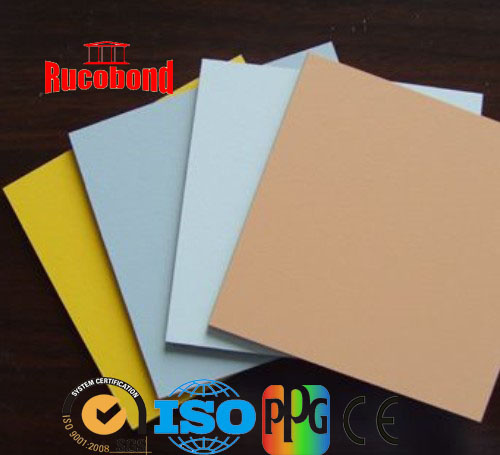

ACP Aluminium Composite Panel Building Material (RCB141028)
RUCOBOND
1)Materials:
A)Front: Aluminum plate coated with PVDF or polyester
B)Back: Aluminum Plate coated with Polyester
C)Core: Fireproof plastic
2)Colors:
Solid color, metal color, biocolor, glossy color, mirror, wooden, marble color, custom color accepted.
PVDF PE NANO
Specfications:
1)Aluminum thickness: 0.08, 0.12, 0.15, 0.21, 0.30, 0.35, 0.40, 0.45, 0.50mm
2)Panel thickness: 2, 3, 4, 5, 6mm
3)Standard size(W*L*T):
A)1220*2440mm
B)1270*2750mm
C)1550*5800mm
D)1500*3660mm
E)1570*5800mm
Thanks again for being interested in our Aluminum Composite Panel (ACM, ACP).
| Item | Total Thickness(mm) | AL thickness(mm) | Width(mm) | Length(mm) |
|
| Standard | 4 | 0.5 | 1220 | 2440 |
|
| Option | 2,3, 5, 6 | 0.12~0.5 | 900 ≤ W ≤ 1550 | Customized |
|
Profermance:
| Surface Properties | Pencil Hardness | > HB/> 2H |
| Temperature Resistance | -50 º C to +80 º C |
| Impact strength (kg. cm) | 50 |
| Boiling water adhesion | NO blistering or peeling |
| Muriatic acid resistance | NO blistering or other visual change |
| Alkaline Resistance | Unconverted |
| Oil Resistance | Unconverted |
| Impregnant resistance | Unconverted |
| Rinse resistance | Unconverted by 10000 times |
| Peel Strength 180 º C | 180º C<11.2 newton/mm |
| Product Properties | Sound Absorption NRC | 0.05 |
| Sound Attenuation RW db | 23/24/25 |
| Water Absorption % by volume | 0.0047/0.0057/0.0012 |
| Core Composition | LDPE Polyethylene, Non- Combustible Material |
| Packing | If packing with pallet, will load less, depend on the detailed size of the panel.Wooden Pallet(less quantity,LCL); In bulk (large quantity,like 20FT,FCL) |
| Loading Capacity | 4500sqm for 20'container |
|
|
|
| Lead Time | 10- 15 days after receive 30% in advance. |
| Quality warranty: | a) PVDF ACP: 15 years |
| b) PE ACP: 10 years |
| OEM | OEM service available
|
Enlightenment Construction Material Co., Limited owns registed LOGO"RUCOBOND" for Aluminum Composite Panel.
Rucobond Aluminum Composite Panel is professional in manufacturing and exporting in all kinds of ACM ACP Aluminum composite panel, such as metal, solid, mirror, wooden, granite, brush and other customs color. Have more than 10years in exporting business of aluminum composite panel.
Our company keeps on laying stress on quality and service attitude. Good quality, competitive price, and prompt delivery are what we offer to you. Your exclusive designs are also welcomed. Please feel free to contact us for further information.
