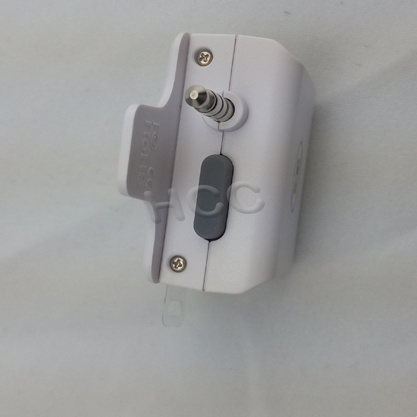

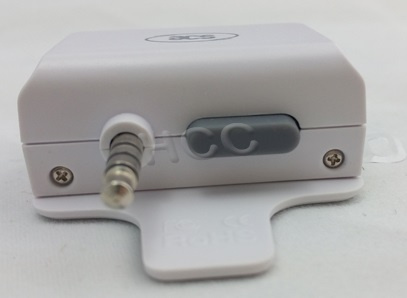

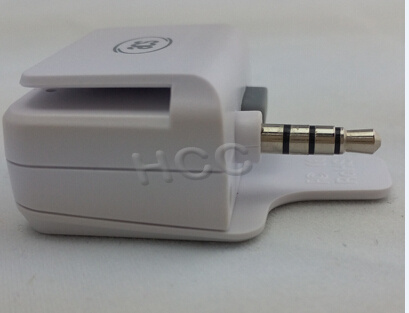

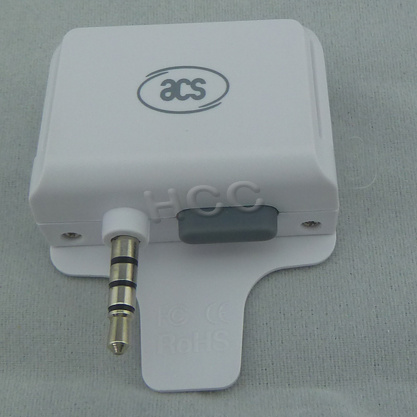

ACR31 Swipe Card Reader for Mobile with 3.5mm 4-Pole Audio Jack
| Price: |
US $ 18-20/Piece |
| Trade Terms: |
FOB,EXW,others |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,Paypal,Western Union |
Product Specifications
| Prod Model: |
ACR31 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions: |
39.7mm (L) X 46.0mm (W) X 18.0mm (H) |
| Interface: |
3.5mm 4-Pole Audio Jack |
| Operating Temperature: |
0-50°c |
| Card Swipe Speed: |
Max. 10 IPS (Inches Per Second) |
| Type: |
Currency Detector |
Product Description
OverviewACR31 Swipe Card Reader combines card reader functionality and mobility, enabling you to access secure applications anytime, anywhere. Compact and stylish, this card reader supports demanding applications that use magnetic stripe cards. It provides the perfect balance between reliable functionality and design aesthetics to meet your security needs. Features· 3.5mm Audio Jack Interface· Powered by a CR2016 battery· Reads up to two tracks of card data (Track 1 / Track 2)· Capable of bidirectional reading· Supports AES128 encryption algorithm· Supports DUKPT Key Management System· Magnetic Card Reader:o Supports ISO 7810 / 7811 magnetic cardso Supports Hi-Coercivity and Low-Coercivity magnetic cardso Supports JIS1 and JIS2 Applications· Mobile Banking & Payment· e-Healthcare· e-Purse & Loyalty Tech Specs| Dimensions | 39.7mm (L) x 46.0mm (W) x 18.0mm (H) |
| Interface | 3.5mm 4-pole audio jack |
| Power | CR2016 battery |
| Supply Voltage | 2.3 to 3 V DC |
| Supply Current | 5 mA |
| Operating Temperature | 0-50°C |
| Card Swipe Speed | Max. 10 IPS (inches per second) |
| Card Swipe Cycles | Min. 500,000 |
| Magnetic Stripe Card Support | · ISO7810 / ISO7811 Hi-Co and Low-Co Magnetic Cards
· JIS1 and JIS2 |
| Compliance / Certifications | · CE, FCC, VCCI, RoHS 2, REACH |
| Operating System Support | · Android™ 2.0 and above
· iOS 5.0 and above |
