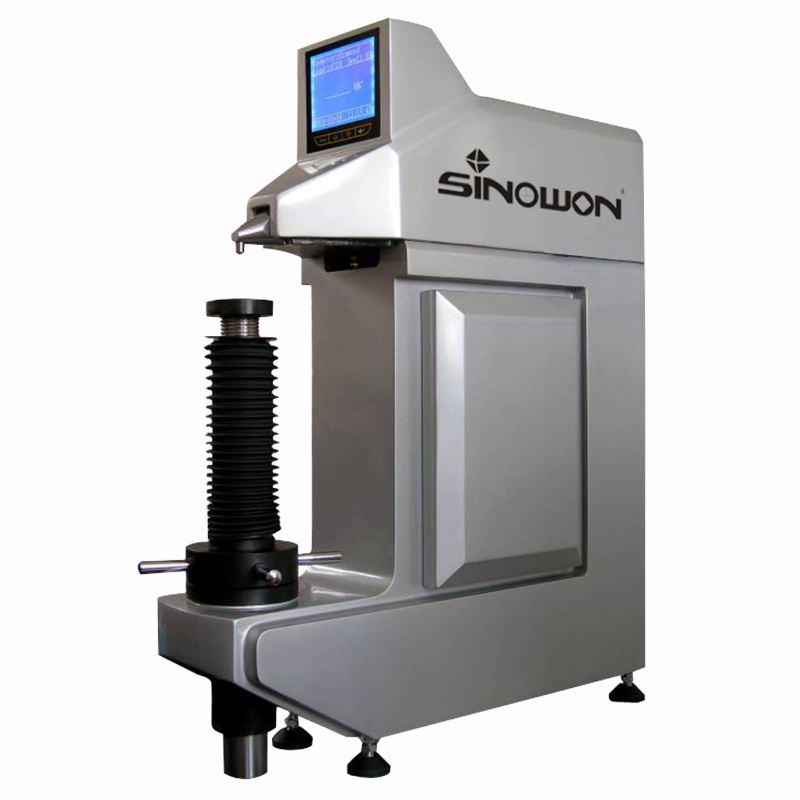

Advanced Digital Twin Hardness Tester Rockwell (SHR-145N)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
SHR-145N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Superficial Rockwell Scales: |
Hr15t, Hr30t, Hr45t, Hr15n, Hr30n, Hr45n |
| Rockwell Scales: |
HRC ,Hrb, Hra |
| Memory: |
Max 400 Items of Test Results |
| Operation: |
Menu Selectable |
| Dwell Time: |
Adjustable 1-60s |
| Hardness Indication: |
High Definition Backlight LCD |
| Resolution: |
0.1hr |
| Data Output: |
RS232/Mini-Printer |
| Max Height Specimen: |
260mm |
| Instrument Throat: |
150mm |
| Type: |
Rockwell Hardness Tester |
| Measuring Range: |
HRB |
| Application: |
Metal |
| Standard: |
ISO |
Product Description
1,Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material.
2,Horizontal Protrudent Indenter Design, also suitable for internal and external testing.
3,Testing on surfaces difficult to reach. Testing internal surface of rings and tubes with diameters over 23mm.
4,Testing force is set automatically according to testing scale
5, Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales.
6, Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB or RS-232 data output port.
7, Test value can be transformed to the value of HB, HV, HK and σ B value.
8, The tester meeting all the following standard such as ISO 6508-2, ASTM E18.

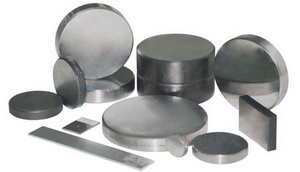

Hardness Blocks
Test Anvil

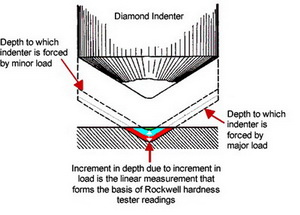

The Rockwell test consists of measuring the additional depth to which a carbide ball or diamond penetrator is forced by a heavy (major) load beyond the depth of a previously applied light (minor) load (SET point).
The minor load is applied first and a SET position is established on the dial gauge or displacement sensor of the Rockwell tester. Then the major load is applied. Without moving the piece being tested, the major load is removed and, with the minor load still applied, the Rockwell hardness number is automatically indicated on the dial gauge or digital display.
When selecting a hardness tester for your application, it is important for you to consider the following: A, Choose the correct test method based on the application.
Plan to use the highest test force and largest indenter possible. Consider the effects of the shape and dimensions of your test sample.
B, Verify the test results meet your requirements for accuracy and repeatability. There are significant differences between levels of performance within each classification of tester. A difficult job on one tester could be very simple and fast on another.
Answer these key questions:1, What kind of hardness scale to be used?
2, What is the material to be tested, and is this material suitable to the type of test method you are considering?
3, How large is the part, component or specimen to be tested?
4, Is the test point difficult to reach?
5, What is the quantity of testing that will be done?
6, How accurate does your test result need to be?
7, What is your budget?
8, What is the required return on investment and do you have ways to measure reductions in costs- yields, throughput, operator efficiency?
9, What testing problems have you experienced in your current method?
10, How knowledgeable are the users of the tester?| Specifications: |
| Product Name | Advanced Digital Twin Rockwell Hardness Tester |
| Model | SHR-145N |
| Code# | 811-328 |
| Hardness Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV, |
| Superficial Rockwell Scales | 15T,30T,45T;15W,30W,45W;15X,30X,45X;15Y,30Y,45Y |
| Memory | Max 400 items of test results stored automatically |
| Preliminary Test Force | 29.4N(3Kgf),98.1N (10kgf) |
| Total test force | 147.1N(15kgf),294.3N(30Kgf),441.3N(45Kgf),588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf) |
| Operation | Menu selectable, Membrane keypad |
| Dwell Time | Adjustable 2-50s |
| Hardness Indication | High definition backlight LCD |
| Resolution | 0.1HR |
| Data-Output | RS-232 |
| Hardness Conversion | HRC \ HRB \ HRA \ HV \ HK \ HBW \ etc |
| Max. Height Of Specimen | 260mm |
| Instrument Throat | 150mm |
| Dimension(LxWxH) | 710 x210 x830mm |
| Power supply | AC 220V/50Hz;AC110V/60Hz |
| Gross/Net Weight | 125Kg/95Kg |
| Execution Standard | ISO 6508, ASTM E18, JIS Z2245, GB/T230 |
| Standard Delivery: |
| Standard Delivery | Code# | Standard Delivery | Code# |
| Instrument Main Body | 811-328 | Ø1.588mm Ball Indenter | 811-418 |
| Hardness Block HRA | 811-651A | Cone diamond Indenter | 811-408 |
| Hardness Block HRB | 811-651B | Flat anvil | 811-518 |
| Hardness Block HRC | 811-651C | "V "shape anvil | 811-528 |
| hardness block HR30N | 811-671N | Screwdriver for indenter mounting | 811-598 |
| hardness block HR30T | 811-671T | Mounting screws for indenter | 811-898 |
| Accessories Box | 811-908 | Power Cable | 811-808 |
| Qualified Certificate | SHR-145N | Instrument Manual | SHR-145N |
