Product Specifications
| Prod Model: |
ST-AHD 08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Standalone |
| Operating System: |
Linux |
| Product Name: |
Ahd DVR Support VGA, HDMI Video Output Simultaneous |
| Model: |
St-Ahd 08 |
| Feature 1: |
8CH 720p Realtime or 960h Reocording |
| Feature 2: |
8CH 720p Playback |
| Feature 3: |
Support VGA, HDMI Video Output Simultaneously |
| Feature 4: |
Support Mobile Phone, Windows, Symbian, iPhone, Bl |
| Feature 5: |
Support 1SATA( up to 4tb) |
| Packaging Of Products: |
Special Export Box |
Product Description

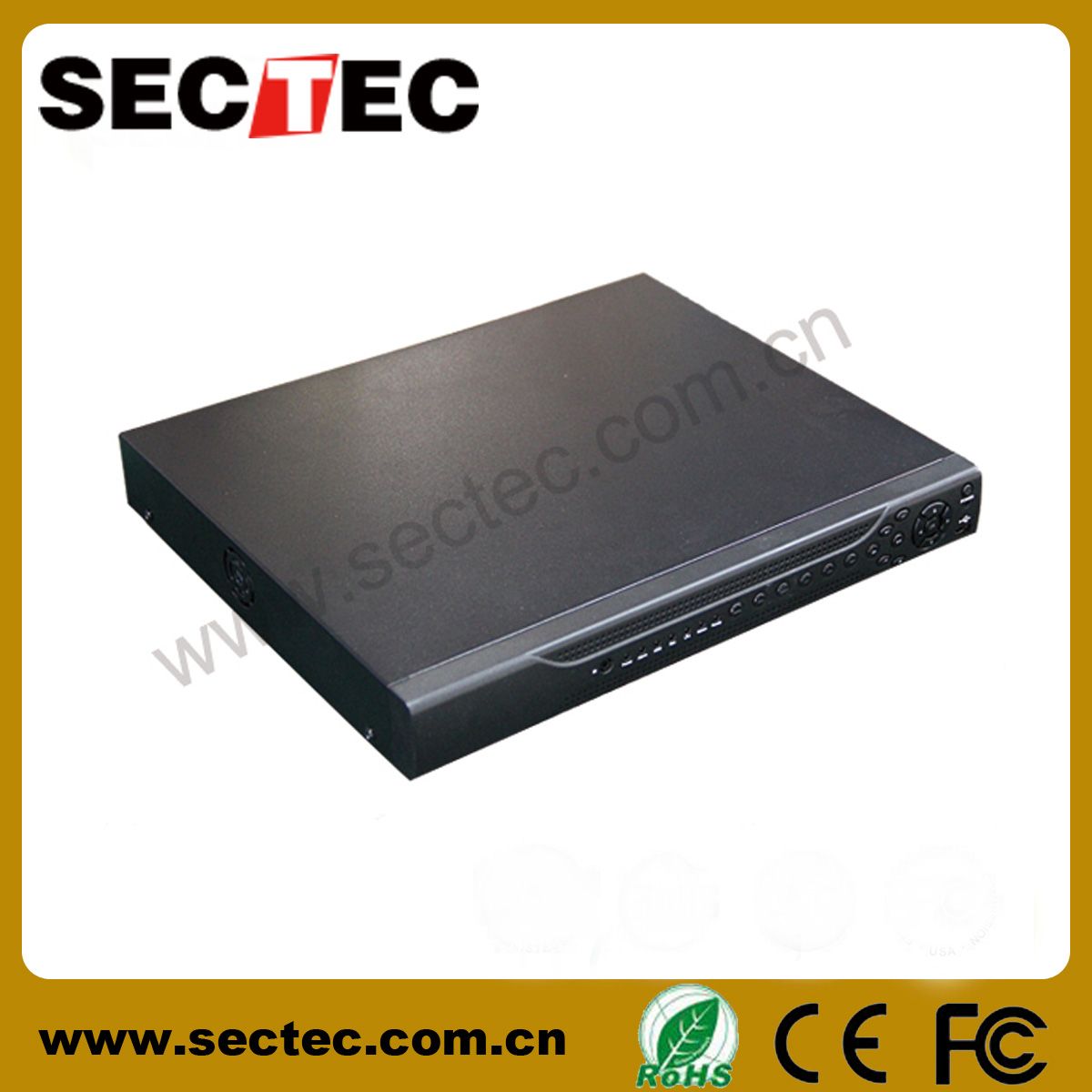

AHD DVR Support VGA, HDMI video output simultaneously
1. Model: ST-AHD 08
2. SPECIFICATIONS:
8CH 720P realtime or 960H reocording
8CH 720P playback, Support 1SATA( up to 4TB)
3. Chief Characteristic:
Support VGA, HDMI video output simultaneously
Support Mobile phone, Windows, Symbian, iPhone, Blackberry and Android operation system
About us:
OEM Service: We could offer OEM and ODM services for our clients.
Delivery Time: Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty: 2 years for free repair. Whole life service for continue cooperating customers!
Price Term: FOB Shenzhen
Delivery Term: By Express(DHL/FedEx/TNT/UPS/EMS/China POST), By air, By Sea.
FAQ:
Q: How long is the warranty?
A: 2 -years-warranty since delivered out.
Q: What's the MOQ?
A: 1PC for sampe, at least 10PCS after sample order.
Q: How long is the delivery time?
A: Sample order 3-5 working days, bulk order 7-15 working days.
Q: Why do you choose us?
A: Choose SECTEC Co., Ltd; Choose a qualified CCTV Products manufacturer!
We will try our best to find the products you need, we will provide you with the most satisfactory service. If you want to learn more, You can contact us. We also welcome you to visit our factory in Shenzhen.
|
Model |
ST-AHD 08 |
|
System |
|
Main Processor |
Embedded processor |
|
Operating System |
Embedded LINUX |
|
Video |
|
Input |
8 channel, BNC |
8 channel, BNC |
|
Standard |
NTSC(525Line, 60f/s), PAL(625Line, 50f/s) |
|
Display |
|
Interface |
1 HDMI, 1 VGA, |
|
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 |
|
Display Split |
1/4 |
1/4/8 |
|
Privacy Masking |
4 rectangular zones (each camera) |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Recording |
|
Video/Audio Compression |
H.264 / G.711 |
|
Resolution |
720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) |
|
Record Rate |
Main Stream: |
720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
|
Extra Stream |
CIF/QCIF(1~25/30fps) |
|
Bit Rate |
48~6144Kb/s |
|
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
|
Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
|
Video Detection |
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips |
|
Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
|
Playback & Backup |
|
Sync Playback |
1/4 |
1/4/8 |
|
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
|
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|
Backup Mode |
USB Device / Network |
|
Network |
|
Ethernet |
RJ-45 port (10/100M) |
|
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter |
|
Max. User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android, Windows Phone |
|
Storage |
|
Internal HDD |
1 SATA port, up to 4TB |
|
Auxiliary Interface |
|
USB Interface |
2 ports(2 Rear), USB2.0 |
|
General |
|
Power Supply |
DC12V/2A |
|
Power Consumption |
10W(without HDD) |
|
Working Environment |
-10 ~+55°C / 10~90%RH / 86~106kpa |
|
Dimension(W×D×H) |
Mini 1U, 325mm×245mm×45mm |
