| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | PC-1901T |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chipset: | Intel N2600 + Nm10 |
| Memory: | 2 GB |
| Hard Disk: | 16 GB SSD |
| Resolution: | 1280X1024 |
| Display Mode: | 4:3 |
| Brightness: | 250CD/M2 |
| Backlight: | LED |
| Contrast Ratio: | 1000:1 |
| Type: | IPC |
| Touch Screen: | Touch Screen |
| Installation: | Wall-Mounted |
| Application: | Industrial |
| CPU Type: | Core Duo |
| Power Supply Type: | ATX12V |
| Accessories: | Industrial Power Supply |
| Screen Size: | 19 Inch |

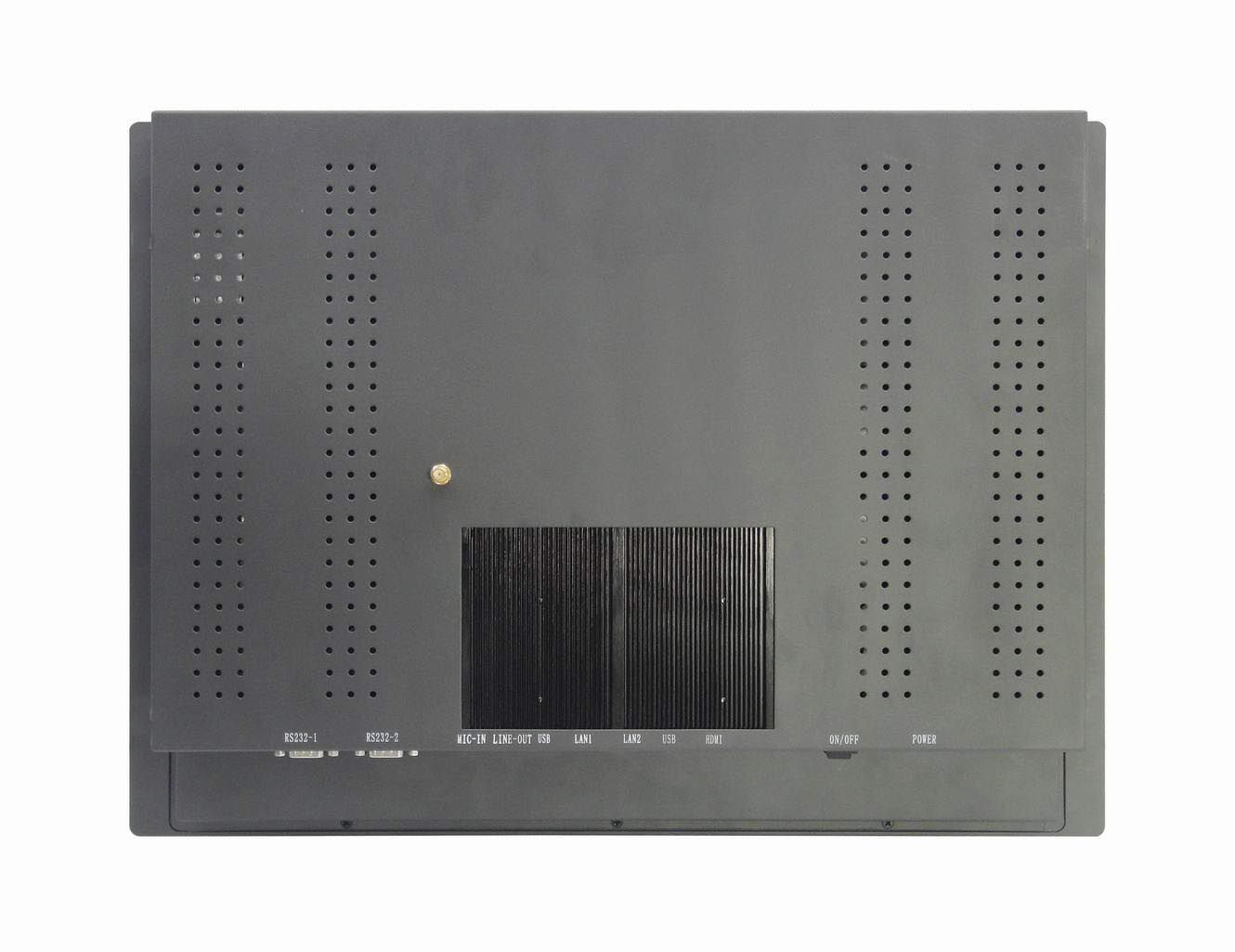

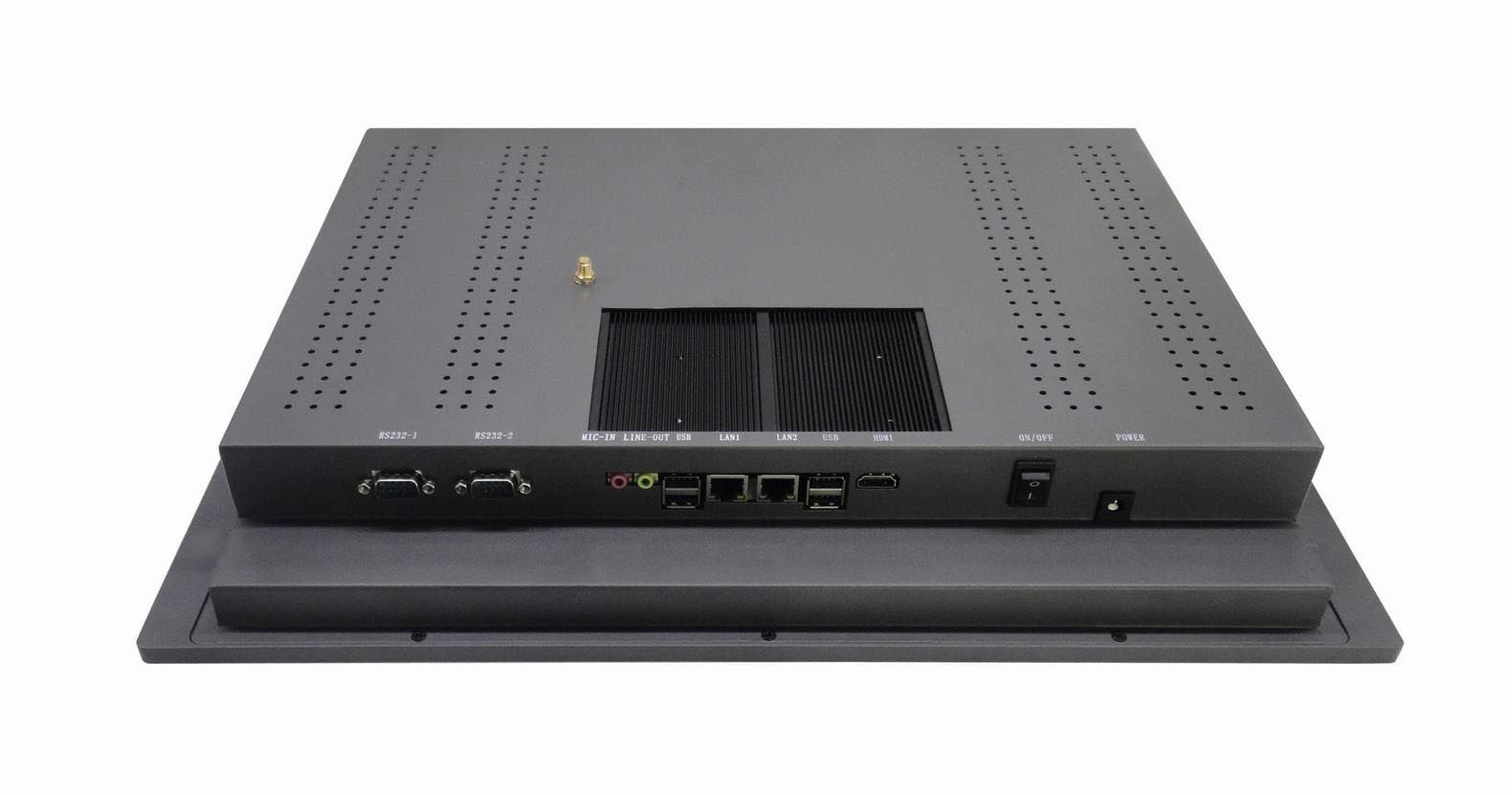

19 inch all in one industrial touch pc with 4:3 display mode and LED backlight
1. Industrial grade AD board
2. Different sizes from 7"-24"
3. Fanless industrial panel pc
4. Standing up to tough industrial environment
5. ODM/OEM supports
6. Supporting USB interface and multiouch
7. With CE, FCC, ROHS, ISO9001 certificates
| PC-1901T Panel PC all in one | ||||||
| Specification | ||||||
| Item | Project | Parameter | ||||
| LCD Display | Display Type/Size | Color TFT LCD/19″ | ||||
| Active Display Area (mm) | 376.32mm(W)×301.056mm(H) | |||||
| Display Mode | 4:3 | |||||
| Max Resolution | 1280×1024 | |||||
| Support Color | 16.7M | |||||
| Luminance(cd/m2) | 250nit | |||||
| Backlight | LED backlight | |||||
| Contrast Ratio | 1000:1 | |||||
| Response Time | 3.7ms | |||||
| Pixel Pitch | 0.294(H)×0.294(V) | |||||
| Viewing Angle | 170/160(H/V) | |||||
| Processor System | Chip set | Intel NM10 | ||||
| CPU | Intel N2600 | |||||
| Internal memory | DDR3 (800/1066/1333MHz) Typ. 2G (Max 4G)(optional) | |||||
| Hard disk | 16GB high speed solid state hard disk (optional) | |||||
| HDMI ports | 1xHDMI Port | |||||
| COM ports | Defaultx4 COM(optional) | |||||
| Ethernet ports | Two Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.) | |||||
| Audio | with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit | |||||
| USB ports | Defaultx4 USB(Max x6) | |||||
| Touch Type(optional) | TouchScreen Type | Resistive(4-wire/5-wire) | ||||
| Optional Touch Type | SAW, IR, Capacitive | |||||
| TouchScreen interface | Serial (RS232) or USB | |||||
| Power supply | Input Voltage | DC12V 4A | ||||
| Output Rating | <=30W | |||||
| Temperature Range | Operating Temperature | -20~70ºC | ||||
| Storage Temperature | -20~70ºC | |||||
| Relative Humidity | 20(%RH)~90(%RH) | |||||
